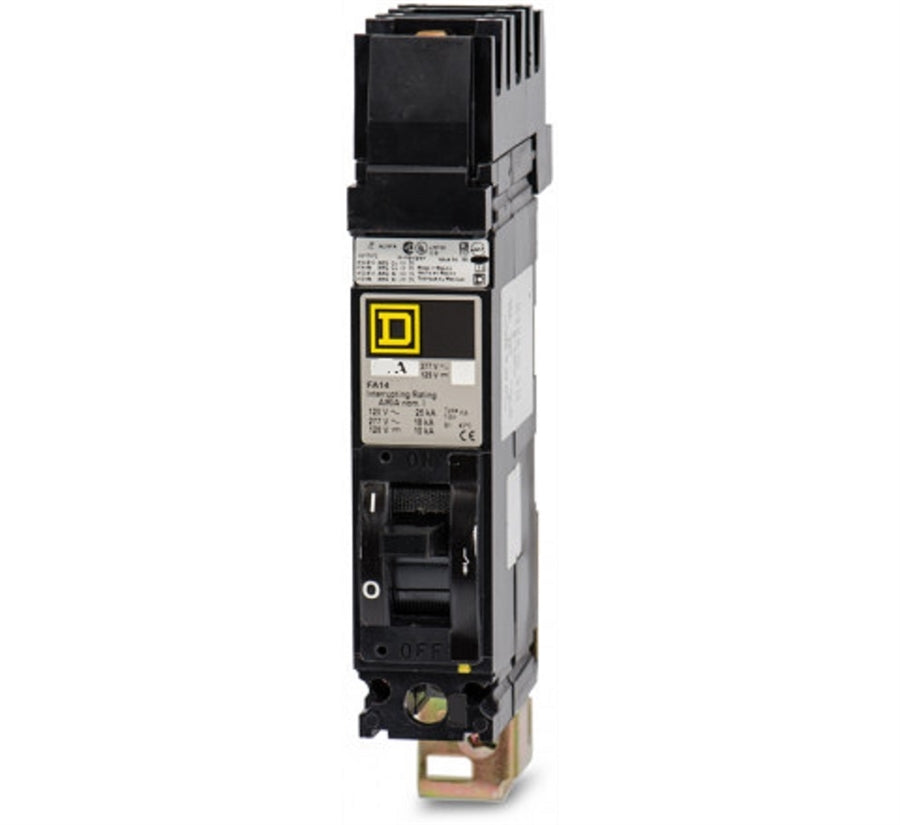

FA14060C | Square D 60A 1-Pole 277V I-Line Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FA14060C
Description
The Square D FA14060C is a 1-pole thermal magnetic molded case circuit breaker designed for 277V single-phase applications. With a current rating of 60 amps and an interrupting capacity of 18kAIC at 277V, it provides dependable protection against overloads and short circuits. The FA14060C features an I-Line plug-in connection, making it ideal for fast installation and reliable performance in commercial and industrial distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D / Schneider Electric |
| Category | Circuit Protection |
| Part Number | FA14060C |
| Subcategory | Molded Case Circuit Breaker |
| Series | FA (I-Line) |
| Frame Type | F Frame |
| Amperage Rating | 60A |
| Voltage Rating | 277V AC |
| Number of Poles | 1 |
| Phase | Single-Phase |
| Trip Function | Long-Time and Instantaneous (LI) |
| Protection Type | Thermal Magnetic |
| Interrupting Rating | 18kAIC @ 277V AC |
| Connection Type | I-Line Style Plug-In |
| Mounting Type | I-Line |
| Certifications | UL Listed, CSA Approved |
| Temperature Rating | 40°C Continuous Current |
| Wire Size Compatibility | AWG 14 to AWG 1/0 (Cu/Al) |
| Application | Commercial and Industrial Distribution Systems |
| Dimensions (H x W x D) | 4.13 x 1.5 x 6.4 in |
| Weight | 2 lb |
Information About FA14060C
The FA14060C is part of the Square D I-Line FA Series of molded case circuit breakers from Schneider Electric, built for use in I-Line panelboards. It utilizes a thermal-magnetic trip unit that combines time-delayed overload protection with instantaneous short-circuit response. The plug-in I-Line connection allows quick installation and replacement without disconnecting line conductors, enhancing safety and efficiency. Engineered to UL and CSA standards, the FA14060C is widely used in lighting, HVAC, and distribution systems requiring high reliability and consistent protection.
Key Features:
- Amperage Rating: 60A – Provides strong current handling for medium-load circuits.
- Voltage Rating: 277V AC – Optimized for single-phase lighting and distribution systems.
- Trip Type: Thermal Magnetic (LI) – Ensures long-time overload and instantaneous short-circuit protection.
- Connection Type: I-Line Plug-In – Allows secure and efficient installation into compatible I-Line panels.
- Interrupting Rating: 18kAIC @ 277V AC – Handles high fault currents safely and effectively.
- Frame Type: FA – Compact molded case design for durable, space-efficient installations.
- Certifications: UL Listed and CSA Approved – Meets rigorous safety and performance standards.
- Temperature Rating: 40°C Continuous Operation – Designed for reliable use in standard ambient conditions.
The FA14060C delivers the reliability and precision required for dependable overcurrent protection in commercial and industrial electrical systems.
