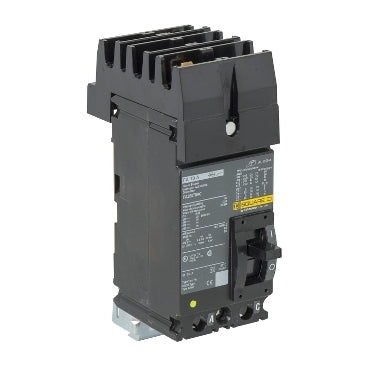

FA26070AC | Square D FA Series 70A 2-Pole 600V I-Line Circuit Breaker
- Regular price
- $1,147.00
- Sale price
- $1,147.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FA26070AC
Description
The Square D FA26070AC is a two-pole molded case circuit breaker designed to provide dependable overcurrent and short-circuit protection in high-voltage power distribution systems. Rated at 70 amps and up to 600 volts AC, this breaker utilizes thermal-magnetic trip technology for stable and predictable fault response. It features I-Line style plug-in mounting for efficient installation in compatible Square D panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | FA26070AC |
| Subcategory | Circuit Breakers |
| Series | FA |
| Product Type | Molded Case Circuit Breaker |
| Frame Type | F |
| Rated Current | 70 A |
| Number of Poles | 2 |
| Phase | Single Phase |
| Voltage Rating | 600 VAC, 250 VDC |
| Protection Type | Thermal-Magnetic |
| Interrupting Rating | 25 kA @ 240 V; 18 kA @ 480 V; 14 kA @ 600 V |
| Mounting Type | I-Line Style Plug-In |
| Functions | Long-Time and Instantaneous (LI) |
| Ambient Temperature Rating | 40 °C |
| Application | Power Distribution |
| Weight | 3.2 lb (approx.) |
Information About FA26070AC
The FA26070AC is part of Square D’s FA series within the F-frame I-Line family, engineered for compact design and reliable performance in commercial and industrial environments. This breaker incorporates a thermal-magnetic trip unit that delivers long-time overload protection combined with instantaneous short-circuit interruption. It is designed for single-phase applications and connects using the I-Line style plug-in interface to ensure consistent electrical contact and mechanical stability. Built to UL and CSA standards, the FA26070AC is suitable for demanding distribution systems operating at elevated voltages.
Key Features:
- 70 Amp Current Rating: Supports protection of moderate-load branch and feeder circuits.
- Two-Pole Configuration: Designed for single-phase electrical system applications.
- 600V AC / 250V DC Rating: Suitable for high-voltage commercial and industrial systems.
- Thermal-Magnetic Protection: Combines long-time overload and instantaneous trip functions.
- I-Line Style Plug-In Mounting: Enables fast, secure installation in compatible equipment.
- High Interrupting Capacity: Rated up to 25 kA at 240 V and 18 kA at 480 V.
- UL and CSA Approved: Meets recognized safety and performance standards.
The FA26070AC delivers the reliability and precision required for commercial and industrial circuit protection.
