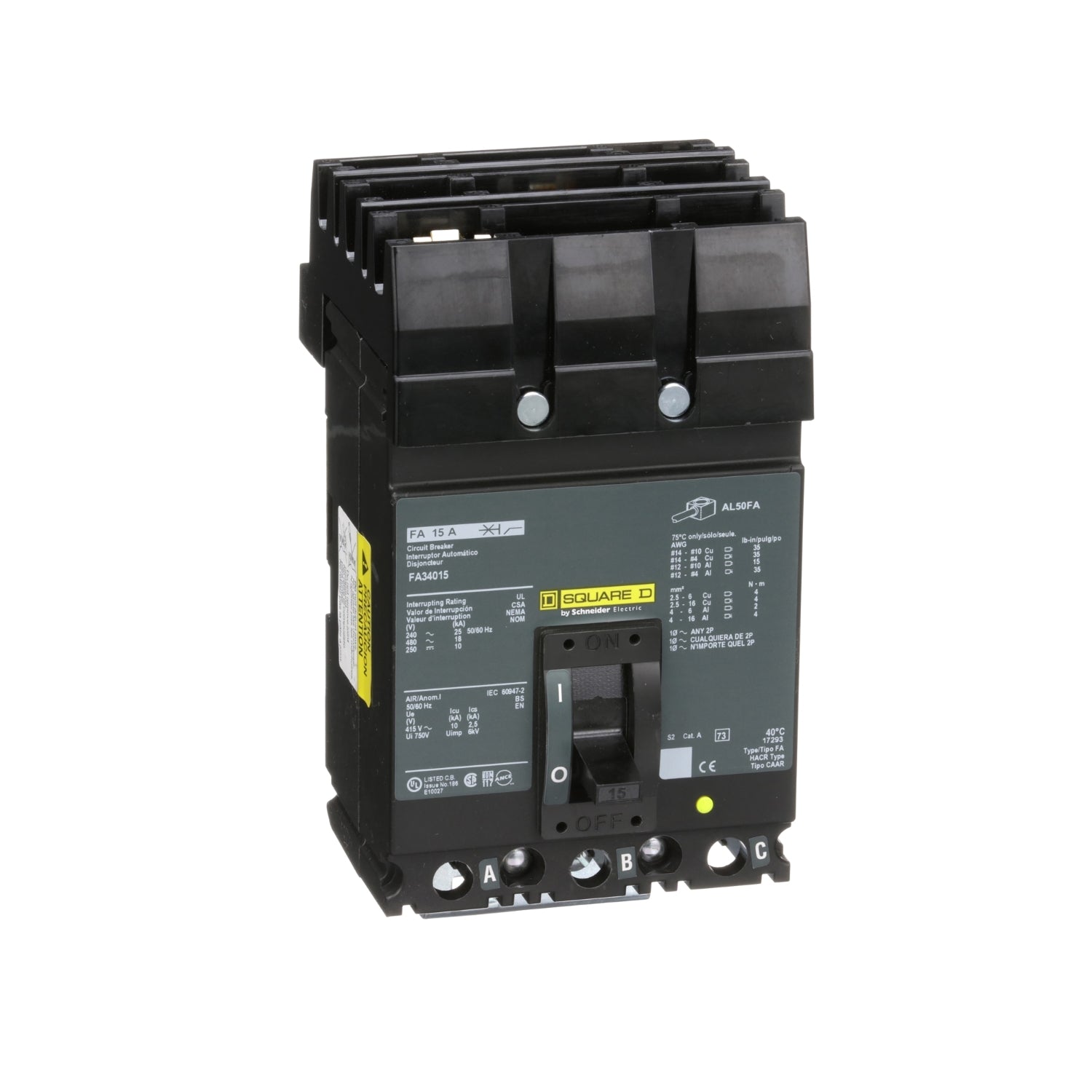

FA34015 | Schneider Electric Main Breaker
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FA34015
Description
FA34015 is a 3-pole, 15A circuit breaker manufactured by Square D, designed for reliable overcurrent protection in electrical systems operating at 480V. This plug-in molded case circuit breaker offers robust performance and meets rigorous safety standards for industrial applications.
Technical Specifications
|
Part # |
FA34015 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Product or Component Type |
Circuit breaker |
|
Trip Unit Technology |
Thermal-magnetic |
|
Line Rated Current |
15 A |
|
Number of Poles |
3P |
|
Breaking Capacity Code |
A |
|
Mounting Mode |
I-Line |
|
Magnetic Hold Current |
275 A |
|
Magnetic Tripping Current |
600 A |
|
Electrical Connection |
Lugs, load; I-Line connection, line |
|
Terminal Identifier |
AL50FA |
|
Phase Connection |
ABC |
|
Height |
6.4 in (162.56 mm) |
|
Width |
4.5 in (114.3 mm) |
|
Depth |
4.13 in (104.90 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About FA34015
FA34015 is a Square D 15 Amp 3 Pole 480 Volt Plug-In Molded Case Circuit Breaker designed for electrical protection in industrial applications. This circuit breaker operates with thermal-magnetic trip technology, providing reliable overcurrent protection for electrical systems operating at 480V and 15A. It features a breaking capacity code of A, indicating its capability to handle specified levels of fault current safely.
The FA34015 circuit breaker is configured with three poles, suitable for applications requiring protection across multiple phases. Its I-Line mounting mode facilitates straightforward installation in compatible electrical panels or systems. The breaker is equipped with lugs for load and I-Line connections, ensuring secure electrical connections in both line and load configurations.
In terms of electrical characteristics, the FA34015 circuit breaker has a magnetic hold current rating of 275A and a magnetic tripping current of 600A. These ratings determine the breaker's responsiveness to overcurrent conditions, ensuring effective operation under various fault scenarios.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
