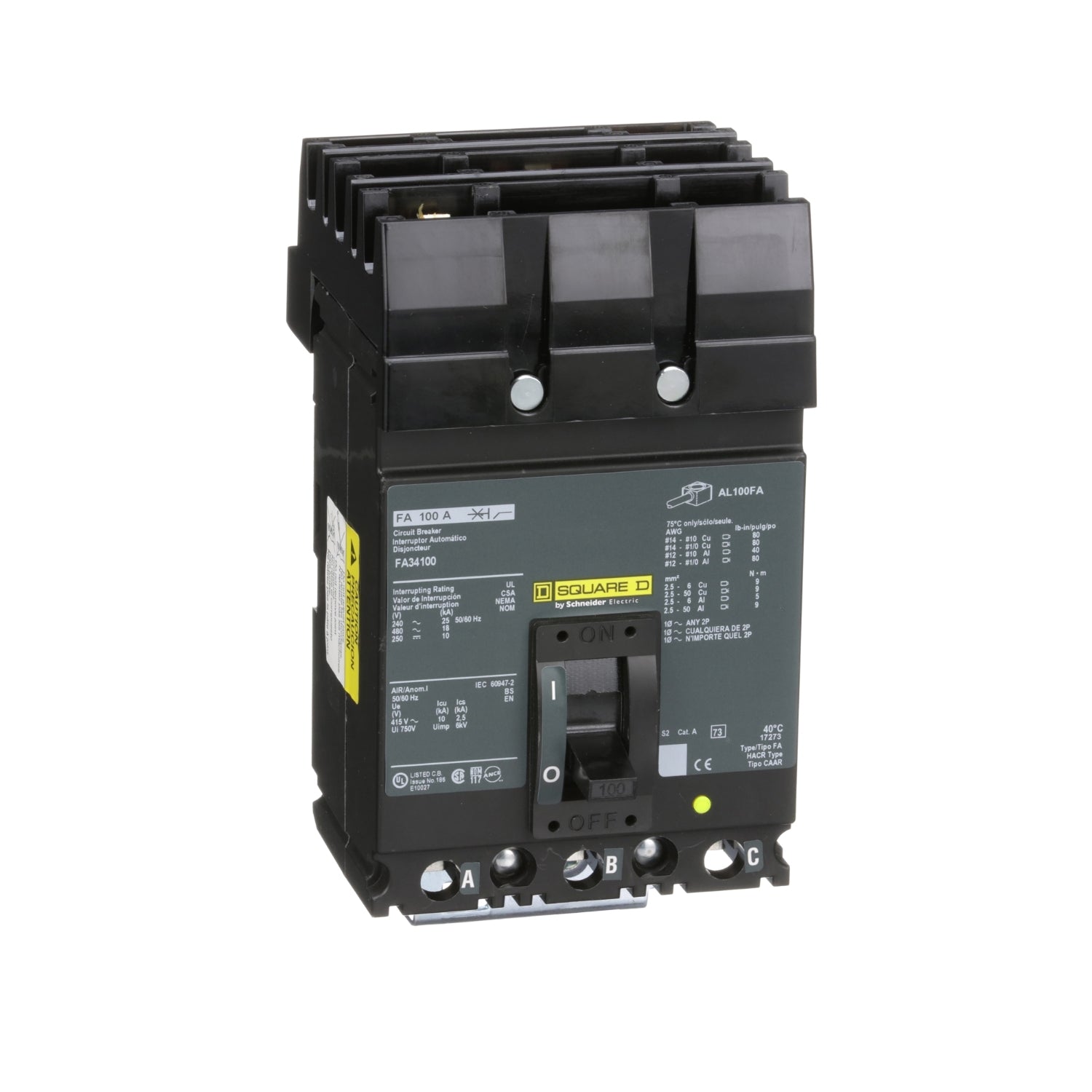

FA34100 | Schneider Electric I-Line 100A 480V 3-Pole Thermal Magnetic Circuit Breaker
- Regular price
- $247.00
- Sale price
- $247.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FA34100
Description
The Schneider Electric FA34100 is a molded case circuit breaker designed for industrial three-phase systems requiring dependable thermal-magnetic protection. It supports 480-volt applications and provides stable performance and precise fault interruption for demanding power distribution environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FA34100 |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | FA |
| Voltage | 480 V AC |
| Amperage | 100 A |
| Frame Type | F Frame |
| Functions | LI – Long-Time & Instantaneous |
| AIC Rating | 18kA @ 480V |
| Protection | Thermal Magnetic |
| Connection | I-Line Style Plug-In |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | Standard |
| Operating Temperature | 40°C |
| Phase Connection | ABC Phase |
| Trip Unit | Thermal-Magnetic Trip |
| Application | Industrial Power Distribution |
Information About FA34100
The FA34100 is a molded case circuit breaker from Schneider Electric’s I-Line family engineered for industrial power distribution systems requiring reliable overload and fault protection. Built on the durable F Frame platform, it is designed to withstand demanding electrical environments while maintaining stable thermal and magnetic trip performance. Its I-Line style plug-in construction ensures fast, secure installation with strong mechanical retention and consistent phase alignment. Operating at 480 volts and rated for 100 amps, the breaker provides an 18 kA interrupting capacity at 480 volts, making it suitable for heavy-duty equipment and balanced three-phase distribution applications.
Key Features
- I-Line Style Plug-In Design: Offers quick, secure installation with robust mechanical engagement, reducing downtime during maintenance or system expansion.
- Thermal-Magnetic Protection: Utilizes dual-sensing technology to manage both overload and short-circuit conditions with precise response characteristics.
- F Frame Structural Durability: Provides mechanical strength and thermal stability, ensuring long-term reliability in harsh industrial environments.
- 18kA Interrupting Capacity: Capable of safely clearing high fault currents at 480 volts, improving system safety and equipment protection.
- Three-Pole, Three-Phase Configuration: Supports balanced ABC phase distribution for consistent industrial power delivery.
- Long-Time and Instantaneous Trip Functions: Offers selective response to prolonged overloads and rapid disconnection during severe fault events.
- 100-Amp Operating Capability: Supports heavy-duty loads commonly found in manufacturing, processing, and facility-level distribution systems.
- Standard Interrupting Rating: Provides dependable system-level fault clearing suitable for a wide range of industrial installations.
The FA34100 delivers the reliability and precision required for protecting industrial three-phase distribution networks under demanding load and fault conditions.
