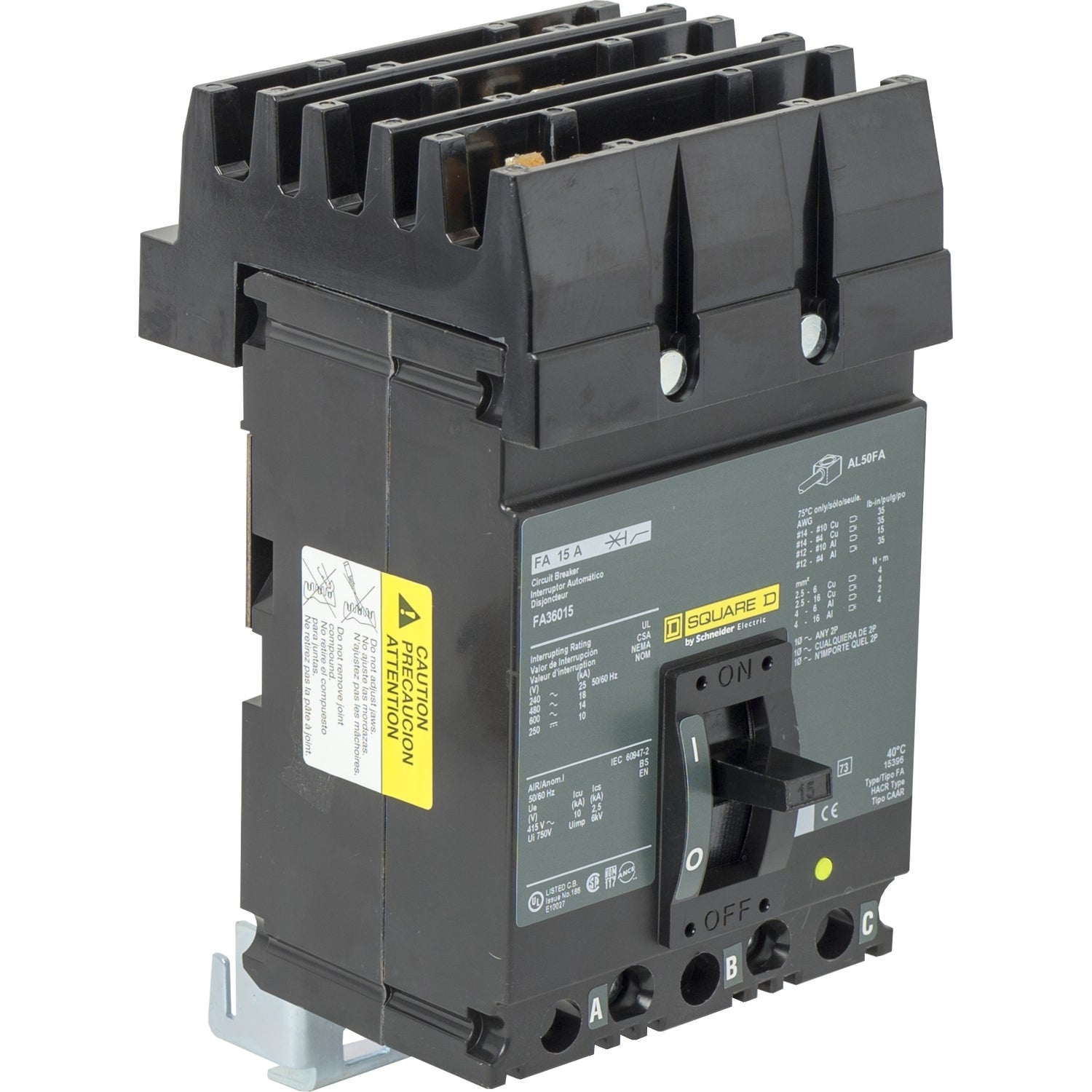

FA36015 | Schneider Electric I-Line 3-Pole 15A Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $989.00
- Sale price
- $989.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FA36015
Description
The Schneider Electric FA36015 is a compact three-pole molded case circuit breaker designed for reliable protection of three-phase electrical systems. It is rated at 15 amps and 480 VAC / 250 VDC and provides thermal magnetic protection with long-time and instantaneous trip functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FA36015 |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | FA |
| Frame Type | F Frame |
| Rated Voltage | 480 VAC / 250 VDC |
| Rated Current | 15 A |
| Interrupt Rating | 18 kA at 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Number of Poles | 3 |
| Phase | Three-phase |
| Connection Type | I-Line Style Plug-In |
| Certifications | UL Listed, CSA Certified |
Information About FA36015
The FA36015 is part of the Schneider Electric I-Line FA series, engineered for dependable low-voltage power distribution in industrial and commercial environments. It features an F-frame molded case design that provides mechanical durability while maintaining a compact footprint. The thermal magnetic trip unit delivers consistent long-time overload protection combined with instantaneous short-circuit response. This circuit breaker is commonly installed in I-Line panelboards where quick plug-in installation and reliable three-phase protection are required.
Key Features
- Three-pole molded case design: Ensures coordinated protection and disconnection across all phases in three-phase power systems.
- 15 amp continuous current rating: Suitable for low-current branch and control circuits in industrial installations.
- Thermal magnetic protection system: Combines thermal overload sensing with magnetic instantaneous short-circuit interruption.
- Long-time and instantaneous trip functions: Provides dependable response to both sustained overcurrent and sudden fault conditions.
- 18 kA interrupting capacity: Rated at 18 kA at 480 V to safely interrupt fault currents in standard industrial environments.
- I-Line style plug-in connection: Allows fast, secure installation into compatible Schneider Electric I-Line distribution equipment.
- F-frame construction: Offers durability and stable electrical performance in demanding commercial and industrial applications.
The FA36015 delivers the reliability and precision required for protecting three-phase electrical distribution circuits in industrial and commercial power systems.
