Part #: FA36060 Manufactured by: Schneider Electric
Regular price
$419.00
Sale price
$419.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The FA36060 is a Square D circuit breaker belonging to the FA series, designed for electrical systems operating at 600 vol...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: FA36060
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: FA36060

Description / Specifications

Description

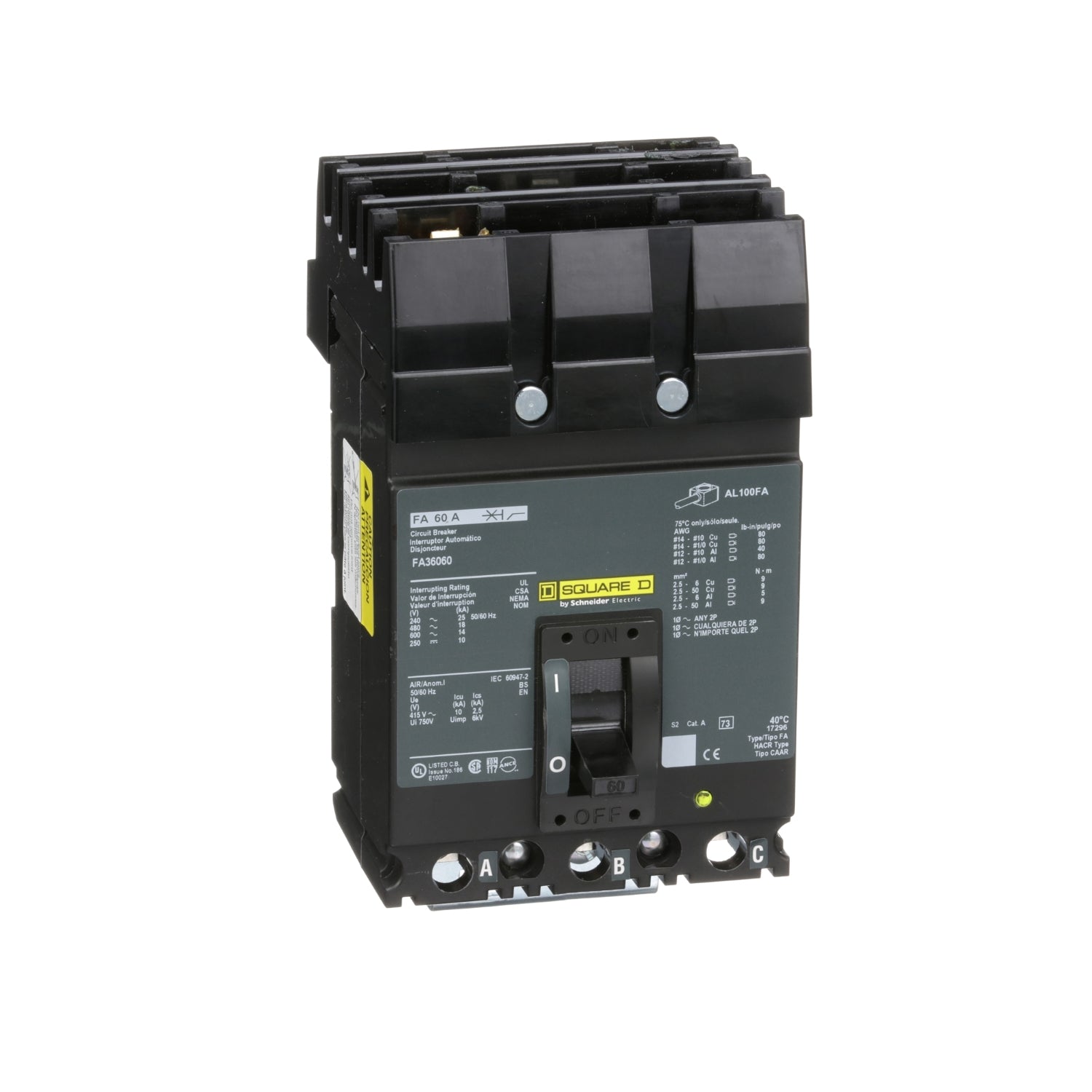

The FA36060 is a circuit breaker manufactured by Square D, featuring a FA designation and designed for electrical systems operating at 600 volts. With a current rating of 60A and three poles, it offers overcurrent protection for three-phase applications. This circuit breaker includes a shunt trip mechanism for remote tripping.

It belongs to the I-Line series and is classified as type FA, indicating its compatibility with Square D's I-Line system. The FA36060 has a standard interrupting rating of 14kA at 600 volts and operates within a temperature range of up to 40 degrees Celsius.



Technical Specifications

Part #

FA36060

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Line Rated Current

60 A

Number of Poles

3P

Breaking Capacity Code

A

Mounting Mode

I-Line

Magnetic Hold Current

800 A

Magnetic Tripping Current

1450 A

Electrical Connection

Lugs, load

Terminal Identifier

AL50FA

Phase Connection

ABC

Height

6.4 in (162.56 mm)

Width

4.5 in (114.30 mm)

Depth

4.13 in (104.90 mm)

Circuit Breaker Application

HACR rated



Information About FA36060

The FA36060 is a circuit breaker designed for industrial applications, featuring a Square D branding and designated as type FA. It is engineered to operate within electrical systems with a voltage rating of 600 volts and a line current of 60A. With three poles, it offers three-phase protection, ensuring the safety and integrity of electrical circuits.

This circuit breaker is equipped with a shunt trip mechanism, enabling remote tripping for enhanced operational control and safety measures. It adheres to standard interrupting ratings, providing reliable performance under normal operating conditions.

The FA36060 utilizes a thermal magnetic mechanism, combining both thermal and magnetic elements to provide efficient and responsive protection against overloads and short circuits. This ensures the timely interruption of electrical currents to prevent damage to equipment and ensure personnel safety.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
