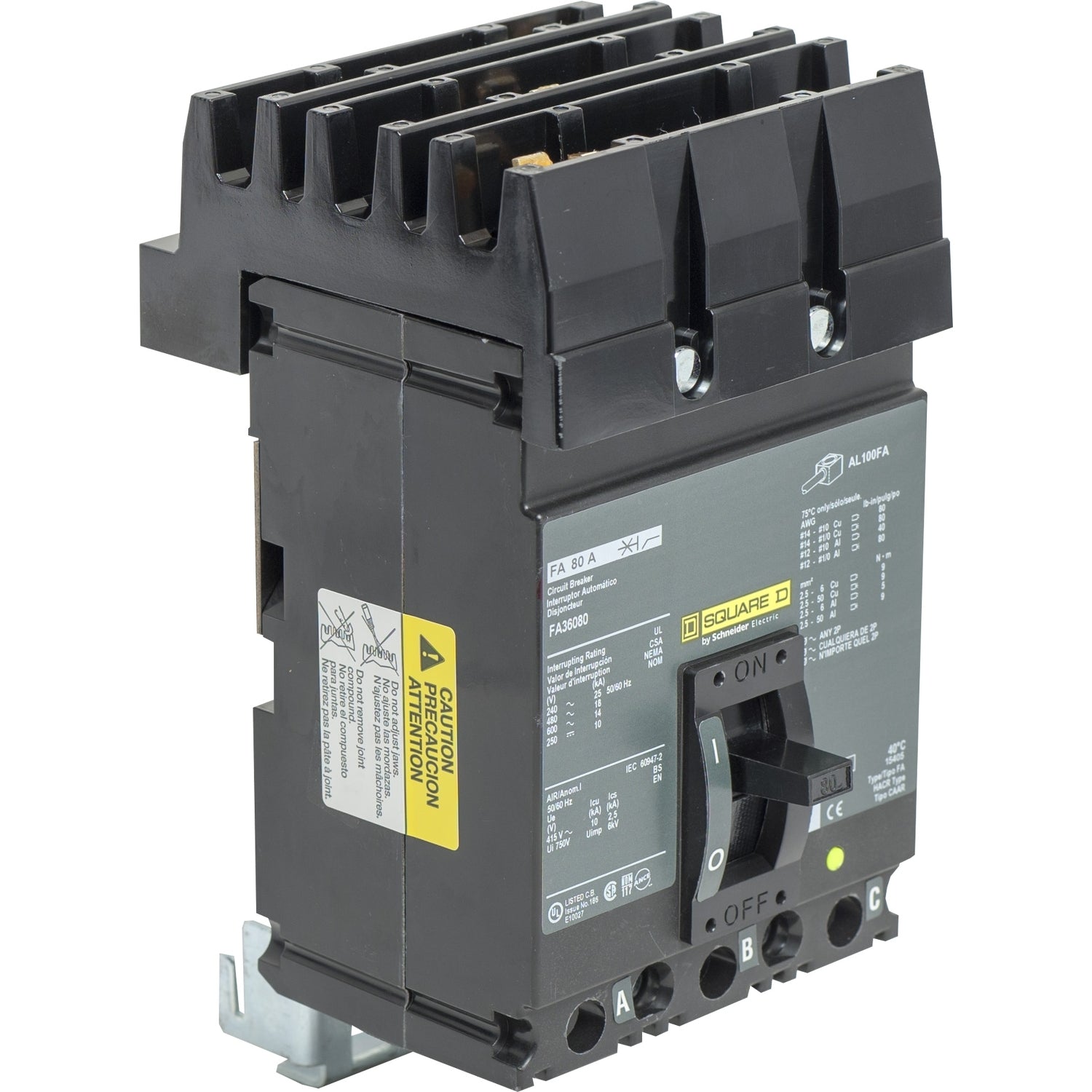

FA36080 | Schneider Electric Circuit Breaker
- Regular price
- $784.00
- Sale price
- $784.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FA36080
Description
FA36080, Square D, I-Line, type FA, 3P, 3PH, 80A, 600V, 18kA@480V, standard interrupting rating, 40°C, I-Line Style Plug-In, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | FA36080 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | FA |
| Voltage | 600 |
| Amperage | 80 |
| Phase | 3 |
| Functions | LI - Long-Time and Instantaneous |
| Poles | 3 |
| AIC Rating | 18kA@480V |
| Connection | I-Line Style Plug-In |
| Frame Type | F Frame |
| Protection | Thermal Magnetic |
Information About FA36080
The FA36080 by Schneider Electric is a high-quality circuit breaker from the I-Line family, designed for reliable electrical protection in various industrial and commercial applications. This breaker operates at a voltage of 600V and has an amperage rating of 80A, making it suitable for medium-capacity electrical circuits.
The FA36080 features a 3-phase, 3-pole configuration, ensuring balanced power distribution and system stability. Its connection style is I-Line plug-in, which simplifies installation and maintenance, enhancing operational efficiency. Built on the F Frame platform, this breaker ensures durability and robust performance, even in demanding environments.
With an Ampere Interrupting Capacity (AIC) of 18kA at 480V, the FA36080 can handle significant fault currents, providing reliable protection against short circuits and overloads. It employs thermal magnetic protection, which combines thermal overload protection with magnetic short-circuit protection for comprehensive safeguarding of electrical circuits.
Equipped with LI (Long-Time and Instantaneous) functions, the FA36080 offers advanced protection features. The Long-Time protection function addresses sustained overcurrent conditions, preventing overloads, while the Instantaneous protection function responds swiftly to short-circuit events, ensuring immediate interruption to avoid damage.
Overall, the FA36080 circuit breaker by Schneider Electric delivers dependable and efficient protection for electrical systems, making it an essential component for maintaining safety and operational integrity in a wide range of settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
