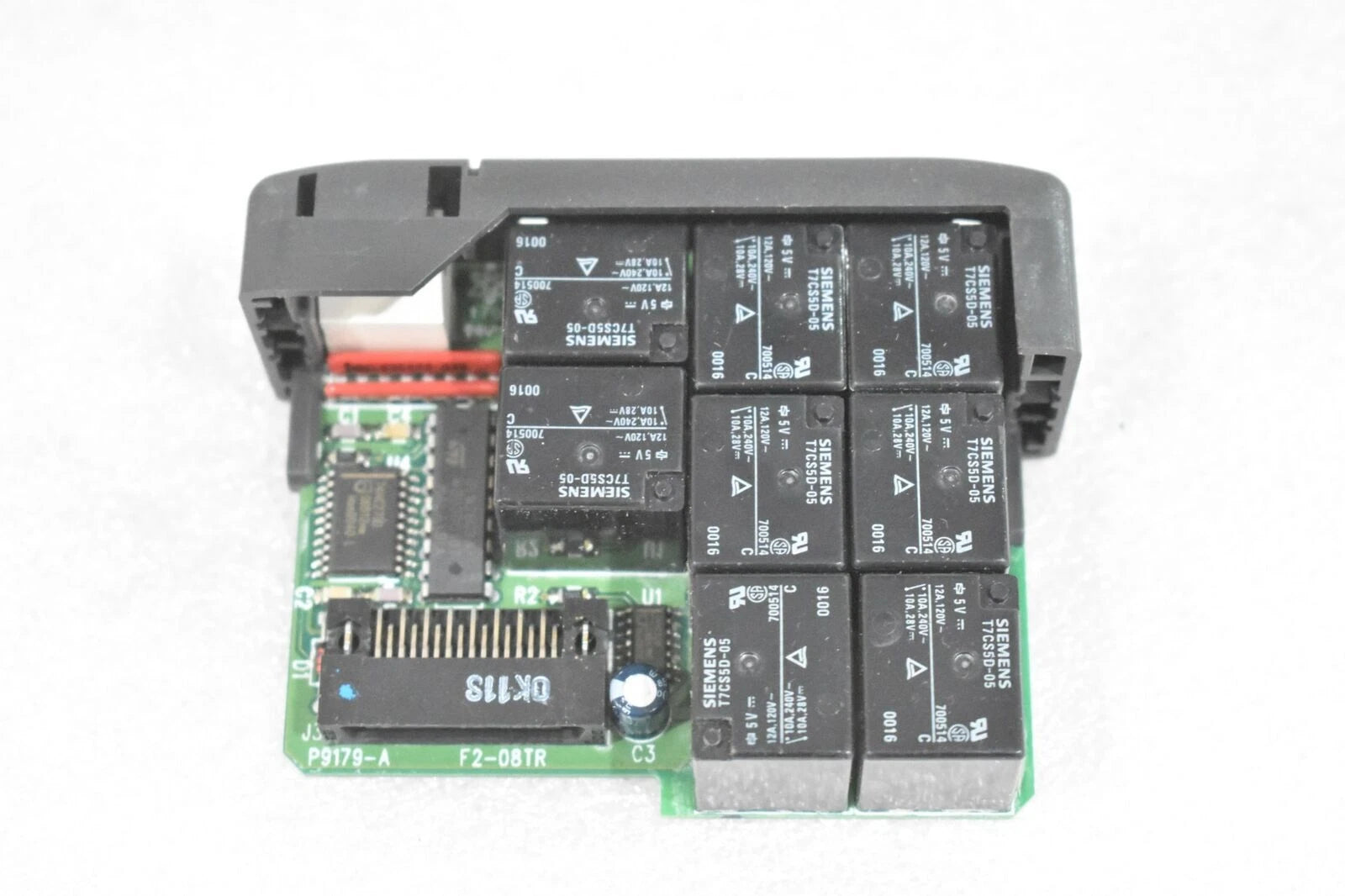

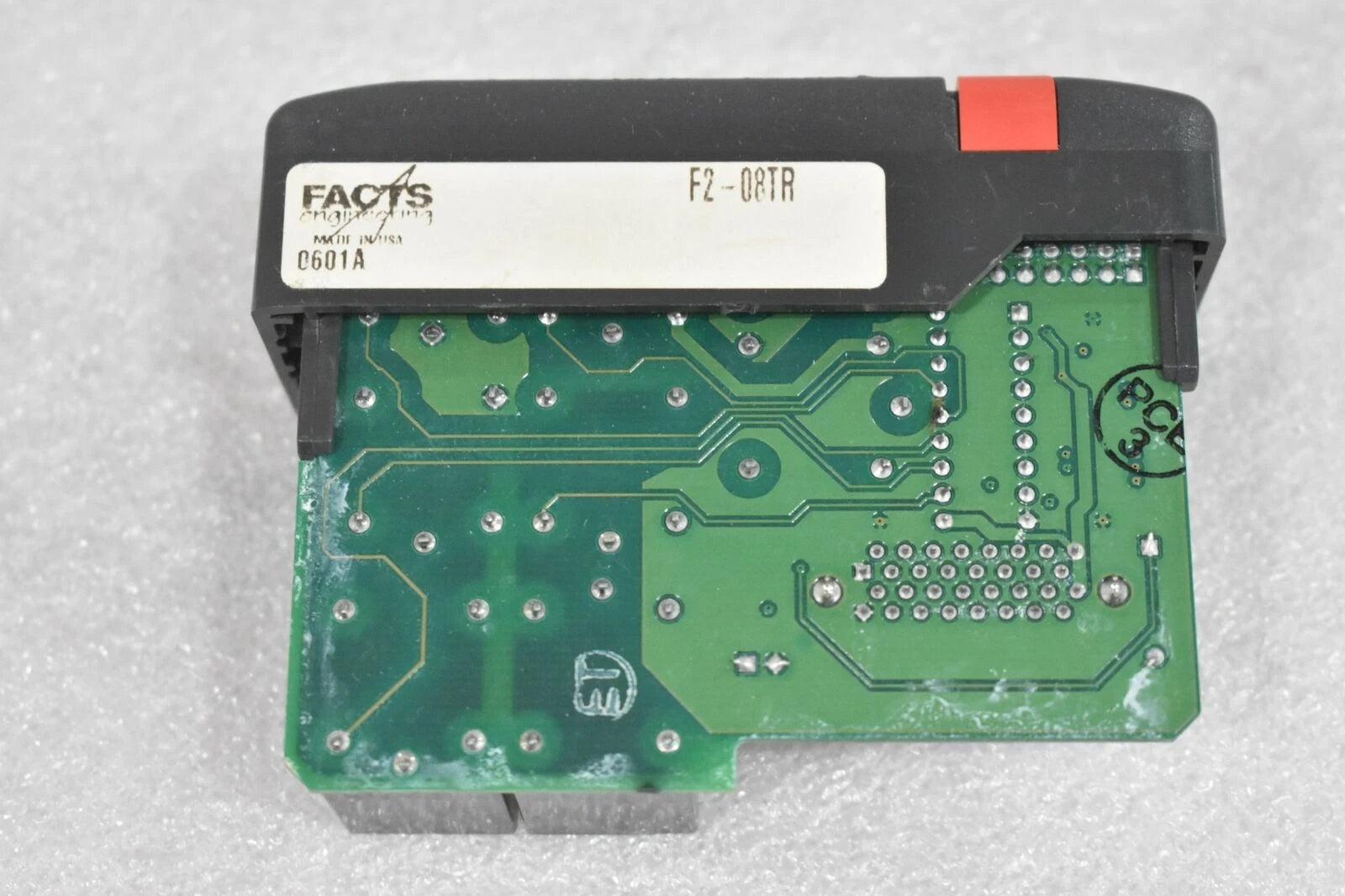

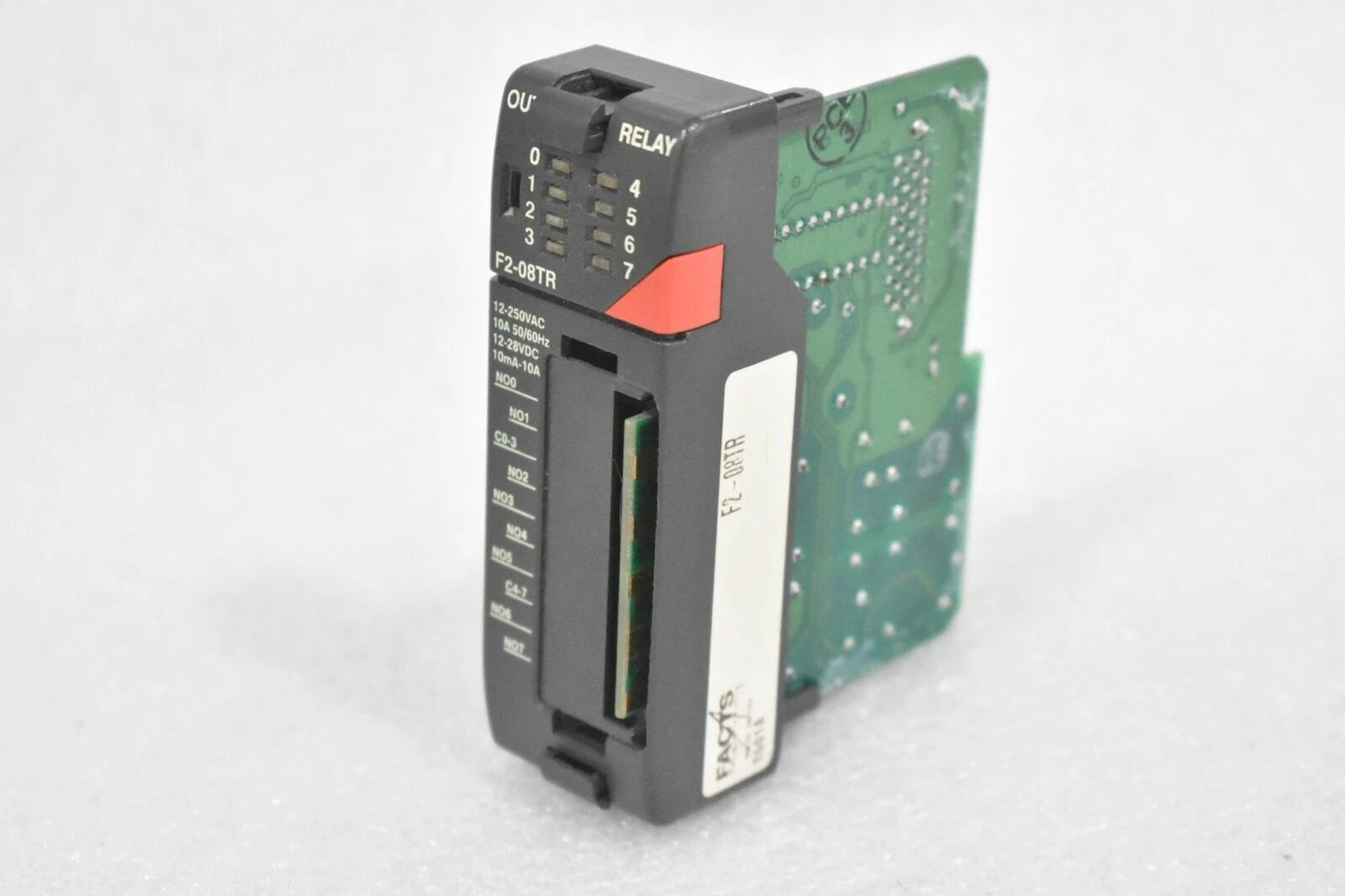

Facts Engineering F2-08TR DirectLOGIC DL205 8-Point Relay Output Module 12-240VAC/DC
- Regular price
- $169.00
- Sale price
- $169.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F2-08TR
Description
The Facts Engineering F2-08TR is an 8-point relay output module designed for use with DirectLOGIC DL205 PLC systems. It provides reliable switching of field devices using Form A (SPST) relay contacts with support for both AC and DC loads. This module ensures efficient control integration in industrial automation environments requiring flexible voltage handling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Facts Engineering |
| Category | Industrial Automation |
| Part Number | F2-08TR |
| Subcategory | PLC Output Modules |
| Series | DirectLOGIC DL205 |
| Module Type | Relay Output Module |
| Number of Outputs | 8 |
| Relay Type | Form A (SPST Normally Open) |
| Nominal Output Voltage | 12–24 VDC / 12–240 VAC |
| Isolated Commons | 2 (4 points per common) |
| Load Current | 10 A per common |
| Inrush Current | 12 A Max |
| AC Frequency | 47–63 Hz |
| Base Power Requirement | 670 mA at 5 VDC |
| Status Indicators | 8 LED Indicators (Logic Side) |
| Terminal Type | Removable Terminal Block |
| Operating Temperature | 0 to 55°C |
| Humidity Range | 30–95% (Non-condensing) |
| Weight | 0.9 lb |
Information About F2-08TR
The F2-08TR is a relay output module from the DirectLOGIC DL205 series, engineered by Facts Engineering for industrial PLC applications. It features eight discrete relay outputs with two isolated commons, allowing grouping of four outputs per common for flexible wiring configurations. Designed for compatibility with Koyo DL205 and Do-more PLC platforms, it supports both 12–24 VDC and 12–240 VAC loads, making it suitable for diverse control tasks. The module includes a removable terminal block and status indicators, simplifying installation, diagnostics, and maintenance in control panels.
Key Features:
- Eight Relay Outputs: Provides 8 independent switching channels for field device control
- Form A Contact Type: Utilizes SPST normally open relay contacts for reliable operation
- Dual Isolated Commons: Two commons with 4 outputs each for flexible load grouping
- Wide Voltage Compatibility: Supports 12–24 VDC and 12–240 VAC output ranges
- High Load Capacity: Rated up to 10A per common for demanding applications
- Removable Terminal Block: Enables quick wiring and easy module replacement

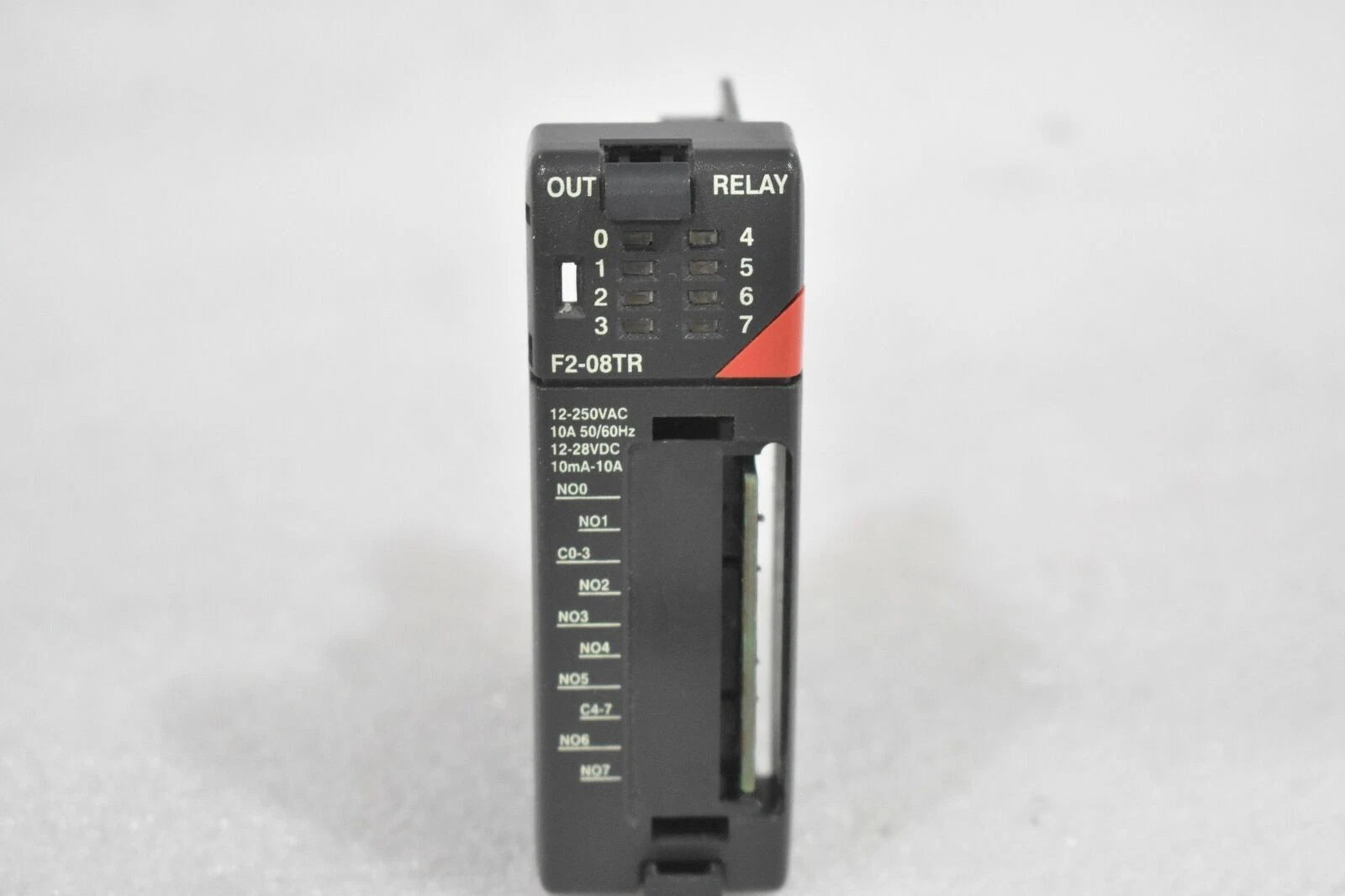

- Status LED Indicators: Front-mounted indicators for real-time output status monitoring
- PLC System Integration: Designed for DirectLOGIC DL205 and Do-more PLC platforms
- No Internal Suppression: Suitable for applications requiring external suppression control
- ZipLink Compatibility: Supports plug-and-play wiring solutions for faster installation
- Robust Electrical Performance: Handles inrush currents up to 12A maximum
- Noise Immunity Rated: Complies with industrial standards for stable operation
The F2-08TR delivers the reliability and precision required for industrial PLC-based output switching and control applications.
