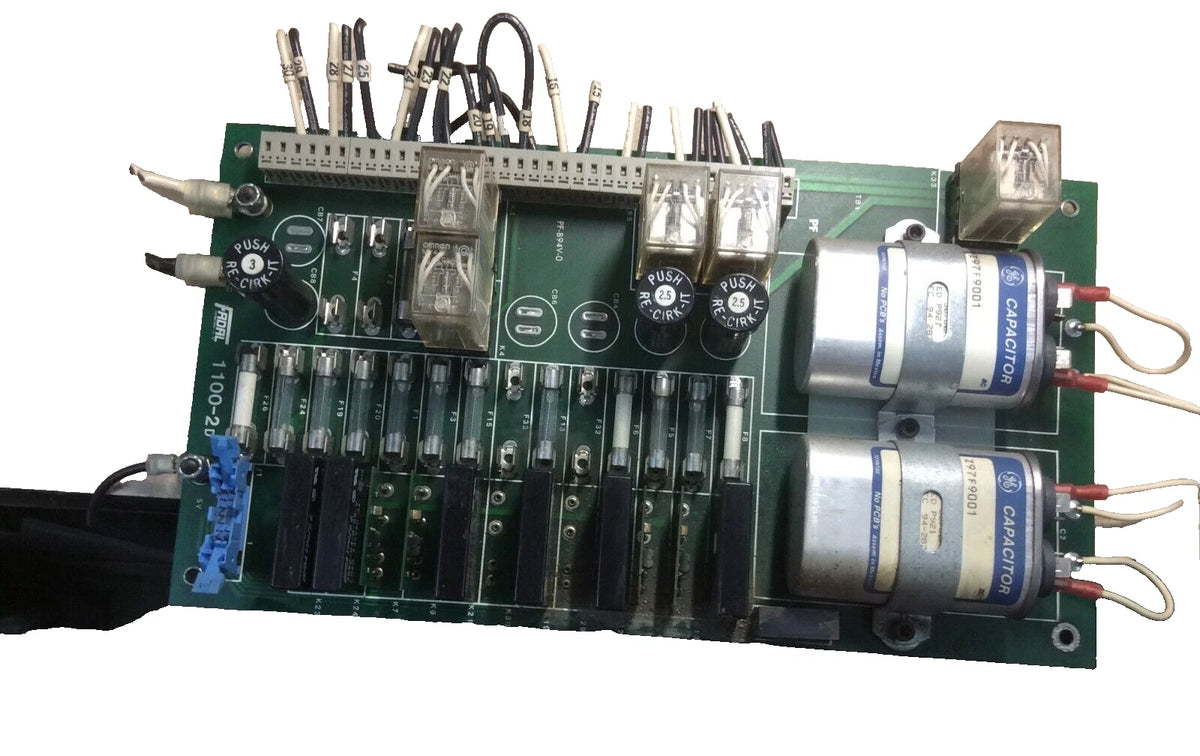

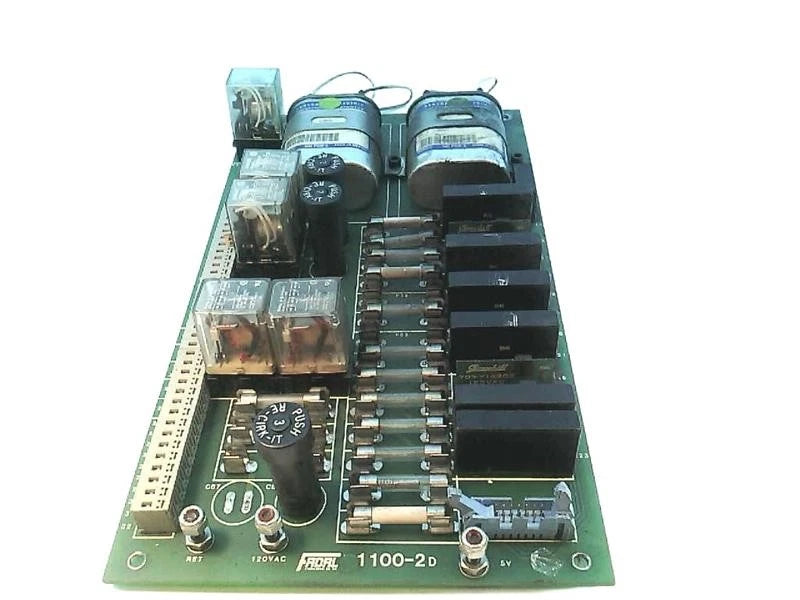

Fadal 1100-2D Keyboard Interface Control Circuit Board
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1100-2D
Description
The Fadal 1100-2D is an electronic keyboard interface board designed to process operator inputs on the CNC pendant. This crucial module translates manual keystrokes into actionable digital commands for the central processing unit, enabling seamless machine configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fadal |
| Category | Industrial Automation |
| Part Number | 1100-2D |
| Subcategory | CNC Control Boards |
| Board Type | Keyboard Interface Circuit Board |
| System Compatibility | Fadal CNC Pendant / Front Panel |
| Function | Operator Input Translation |
| Logic Feature | Integrated Keystroke Debounce |
| Mounting Style | Internal Pendant Mount |
| Weight | 0.75 lbs |
Information About 1100-2D
The 1100-2D is a dedicated operator interface card built to ensure reliable communication between the front panel and the main CNC logic. It processes manual overrides, tool offsets, and program edits rapidly to eliminate lag during critical setup phases. Designed to mount securely behind the pendant keypad, this board features durable contact points that withstand millions of keystrokes over its operational lifespan. It incorporates advanced debounce logic to prevent double-entries and command errors caused by aggressive or repetitive typing.
Key Features:
-
Instant Input Translation: Converts manual pendant keystrokes into immediate digital commands for the machine CPU.
-
Advanced Debounce Logic: Filters out erratic electrical signals to prevent accidental double-entries during rapid typing.
-
Pendant Integration: Mounts directly behind the CNC front panel for a streamlined and secure physical connection.
-
Durable Contact Points: Engineered to survive heavy daily use and millions of keystrokes in demanding machine shops.
-
Real-Time Setup Adjustment: Allows operators to modify tool offsets and feed rates without processing hesitation.
-
Contaminant Resistance: Features protective circuitry to resist degradation from airborne factory dust and coolant mist.
The 1100-2D delivers the reliability and precision required for accurate operator input and seamless CNC programming.
