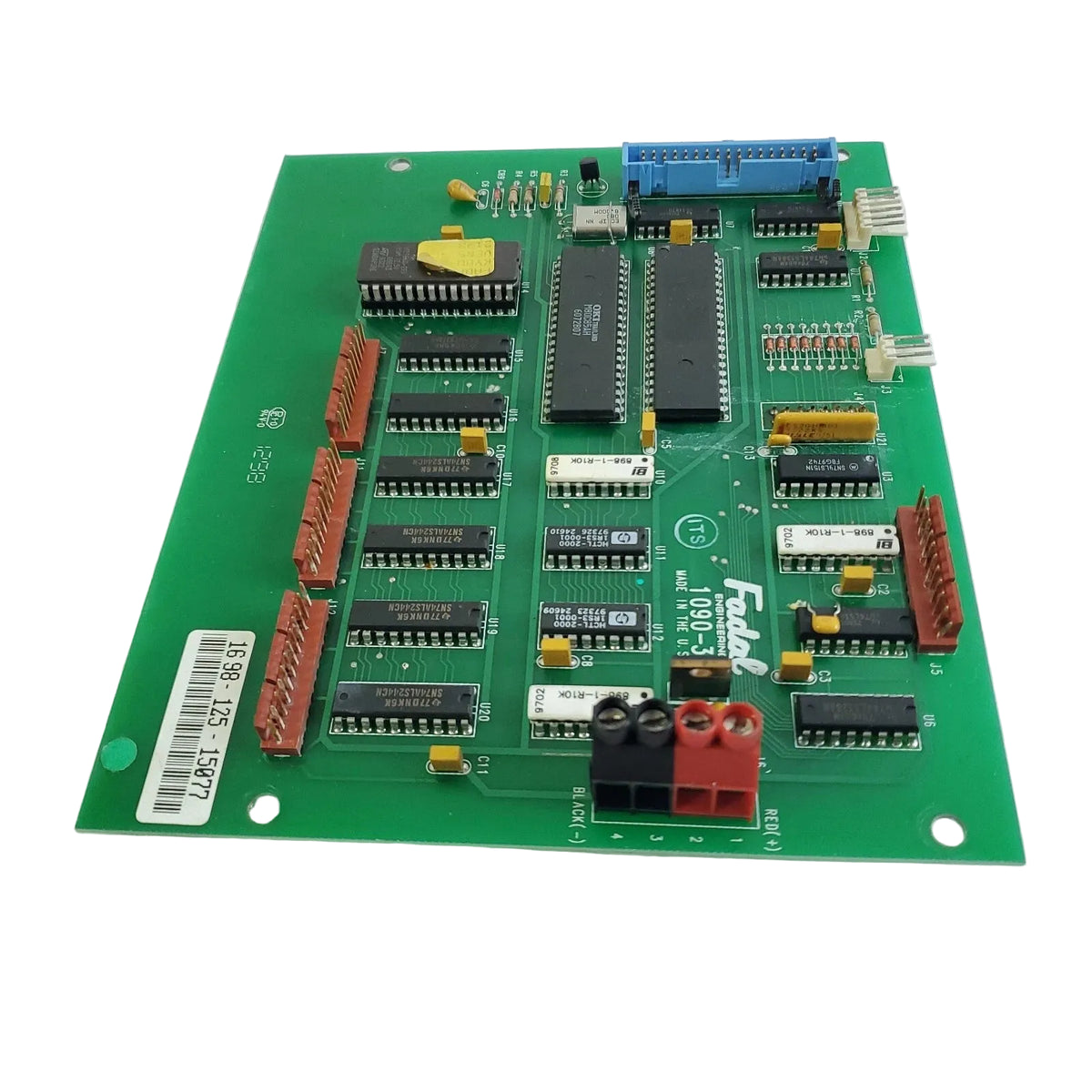

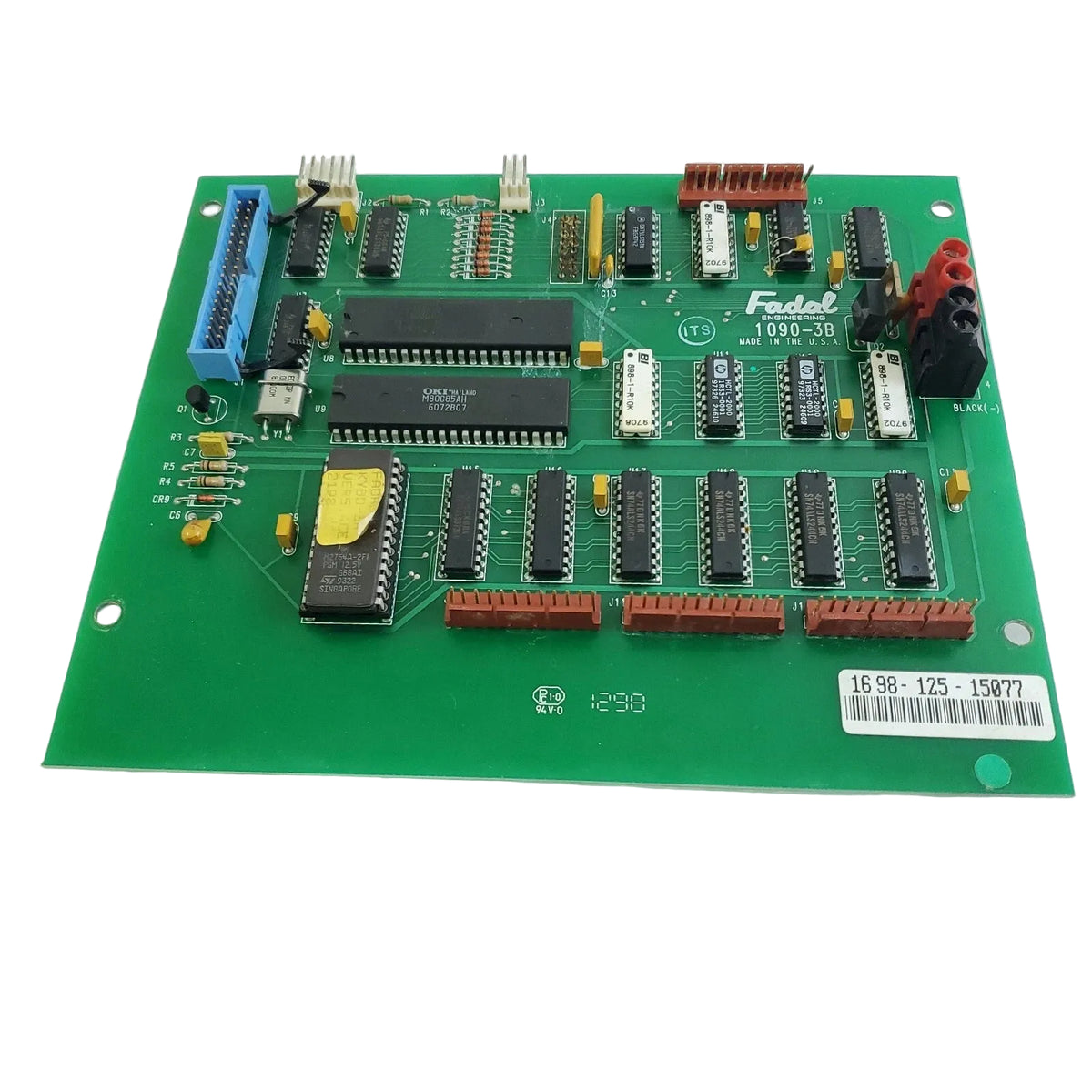

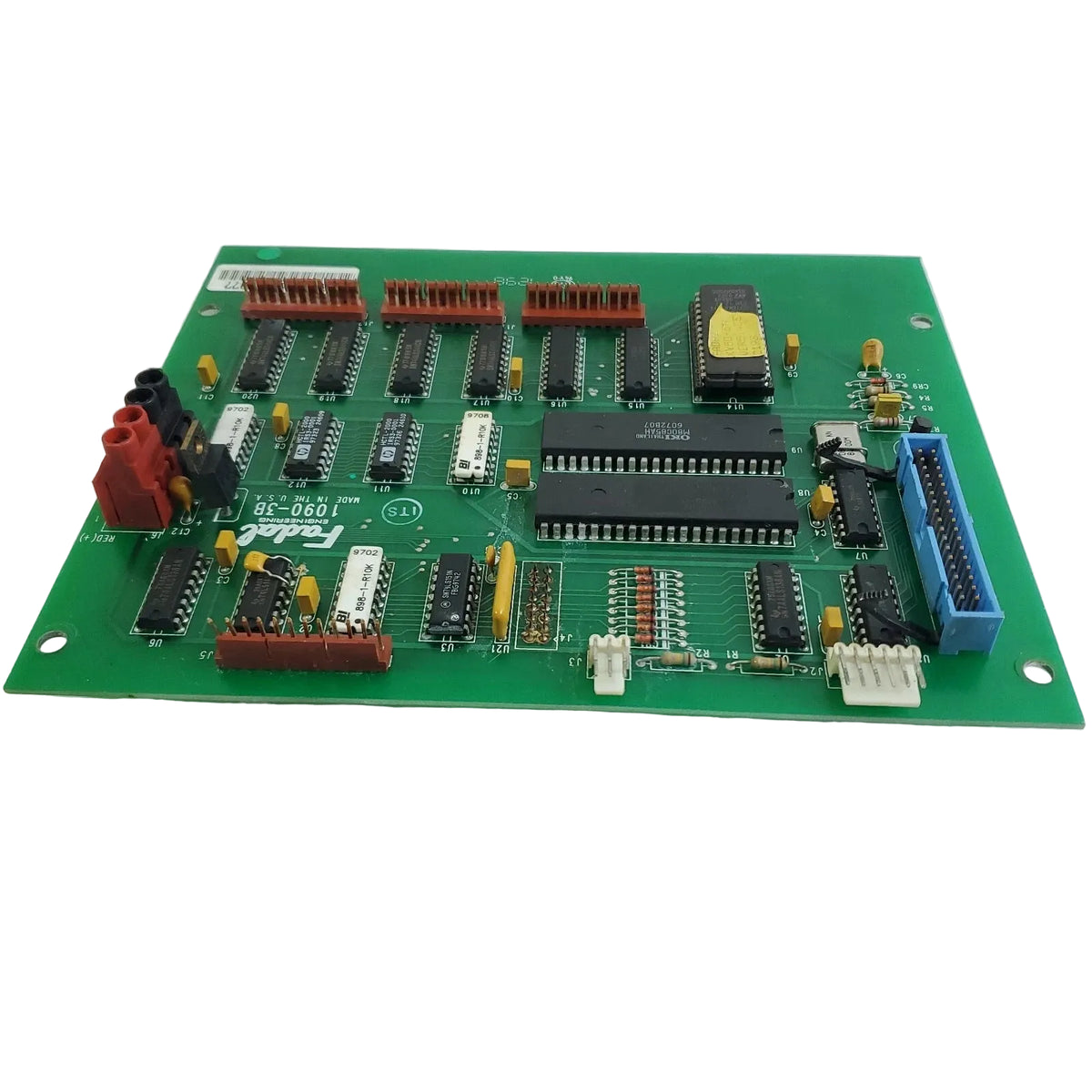

Fadal PCB-0012 Spindle Control Interface Circuit Board
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PCB-0012
Description
The Fadal PCB-0012 is a dedicated spindle control board designed to regulate the speed and rotation of the primary cutting tool. Operating as a critical logic interface, it translates CNC programs into exact RPM commands for the variable frequency drive.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fadal |
| Category | Industrial Automation |
| Part Number | PCB-0012 |
| Subcategory | CNC Control Boards |
| Board Type | Spindle Control Interface |
| Function | Spindle Speed and Rotation Regulation |
| System Compatibility | Fadal CNC Machining Centers |
| Application | High-Speed Milling and Rigid Tapping |
| Installation | Main Backplane / Card Rack Plug-In |
| Weight | 0.90 lbs |
Information About PCB-0012
The PCB-0012 is a specialized circuit board built to ensure flawless spindle operation during aggressive milling and rigid tapping cycles. It communicates directly with the machine's central processor to adjust rotational speeds dynamically based on shifting material loads. Designed to integrate securely into the main control rack, this module provides the exact timing required for precise thread tapping and high-speed material removal. It utilizes robust electronic shielding to prevent high-voltage noise from the spindle motor from corrupting the low-voltage control signals.
Key Features:
-
Precise RPM Regulation: Commands the spindle drive to maintain exact rotational speeds under varying mechanical loads.
-
Rigid Tapping Support: Synchronizes spindle rotation with Z-axis feed rates perfectly to execute flawless threading operations.
-
Direct Rack Integration: Plugs securely into the Fadal backplane for fast and reliable hardware replacement.
-
Electrical Noise Shielding: Protects sensitive logic pathways from electromagnetic interference generated by the spindle motor.
-
Dynamic Speed Adjustment: Processes CNC program changes instantly to accelerate or decelerate the cutting tool.
-
Heavy-Duty Board Construction: Withstands the extreme vibrations and thermal fluctuations typical of industrial machine shops.
The PCB-0012 delivers the reliability and precision required for strict spindle control and complex metalworking applications.
