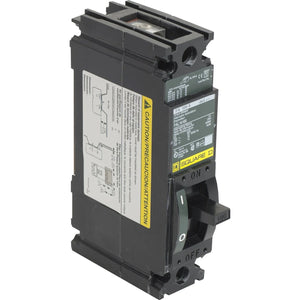

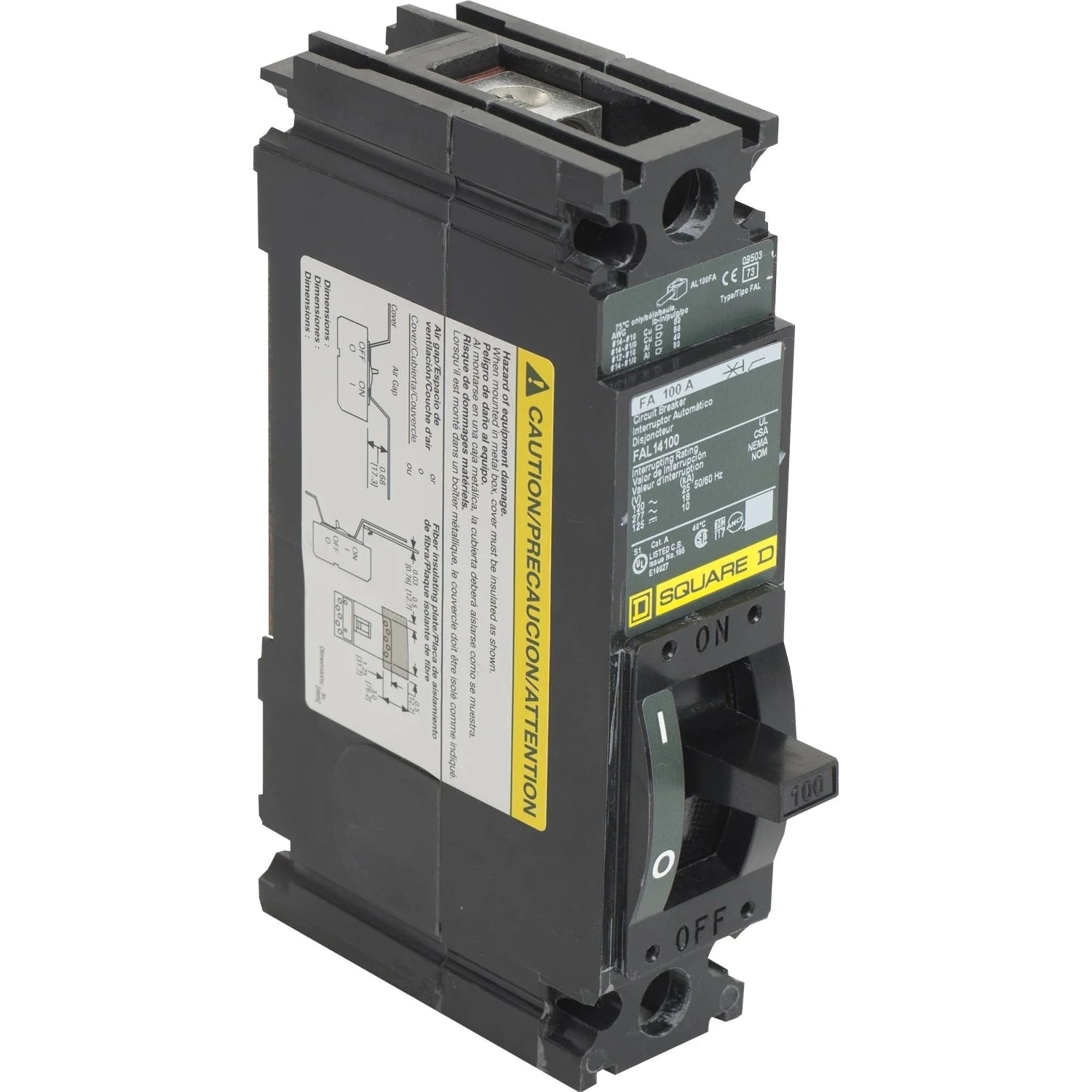

FAL14100 | Schneider Electric Square D 100 Amp Molded Case Circuit Breaker
- Regular price
- $139.00
- Sale price
- $139.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FAL14100
Description
The FAL14100 is a Square D molded case circuit breaker with a current rating of 100 Amps. It is designed as a 1-pole circuit breaker with a voltage rating of 277 Volts and features a feed-through configuration.
Technical Specifications
|
Part # |
FAL14100 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Amps |
100 Amp |
|
Breaker Interrupt Rating 1 |
25KA @ 120VAC |
|
Breaker Interrupt Rating 2 |
18KA @ 277VAC |
|
Breaker Interrupt Rating 4 |
10KA @ 125VDC |
|
Breaker Line Side Term Method |
Lugs |
|
Breaker Load Side Term Method |
Lugs |
|
Category |
Circuit Breakers, Square D by Schneider Electric |
|
Circuit Breaker Type |
MCCB |
|
Frame |
F |
|
Height |
6 inches |
|
Length |
4.13 inches |
|
Manufacturer |
Square D by Schneider Electric |
|
Number of Poles |
1 Pole |
|
Product Description |
277V, 100Amp, 1-Pole |
|
Trip Type |
Thermal Magnetic |
|
Volts |
277V |
|
Width |
1.5 inches |
Information About FAL14100
The FAL14100 is a molded case circuit breaker manufactured by Square D. It is designed to handle currents up to 100 amps. This circuit breaker is configured as a single pole unit, suitable for use in applications requiring 277 volts.
Featuring a feed-through design, the FAL14100 is capable of efficiently managing electrical currents in various industrial and commercial settings. It offers reliable overcurrent protection and ensures the safety of electrical systems by interrupting the flow of electricity when necessary.
With an interrupting rating of 25KA at 120VAC, 18KA at 277VAC, and 10KA at 125VDC, the FAL14100 is equipped to handle high levels of electrical fault currents, minimizing the risk of damage to equipment and personnel.
The FAL14100 is equipped with lugs for both the line side and load side connections, providing secure and reliable terminal connections. This ensures efficient power distribution and minimizes the risk of loose connections, enhancing overall system reliability.
As part of the Square D product line by Schneider Electric, the FAL14100 adheres to stringent quality and safety standards. It is designed to meet the requirements of various industrial and commercial applications, providing dependable performance and long-term reliability.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
