FAL34020 | Schneider Electric Circuit Breaker
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

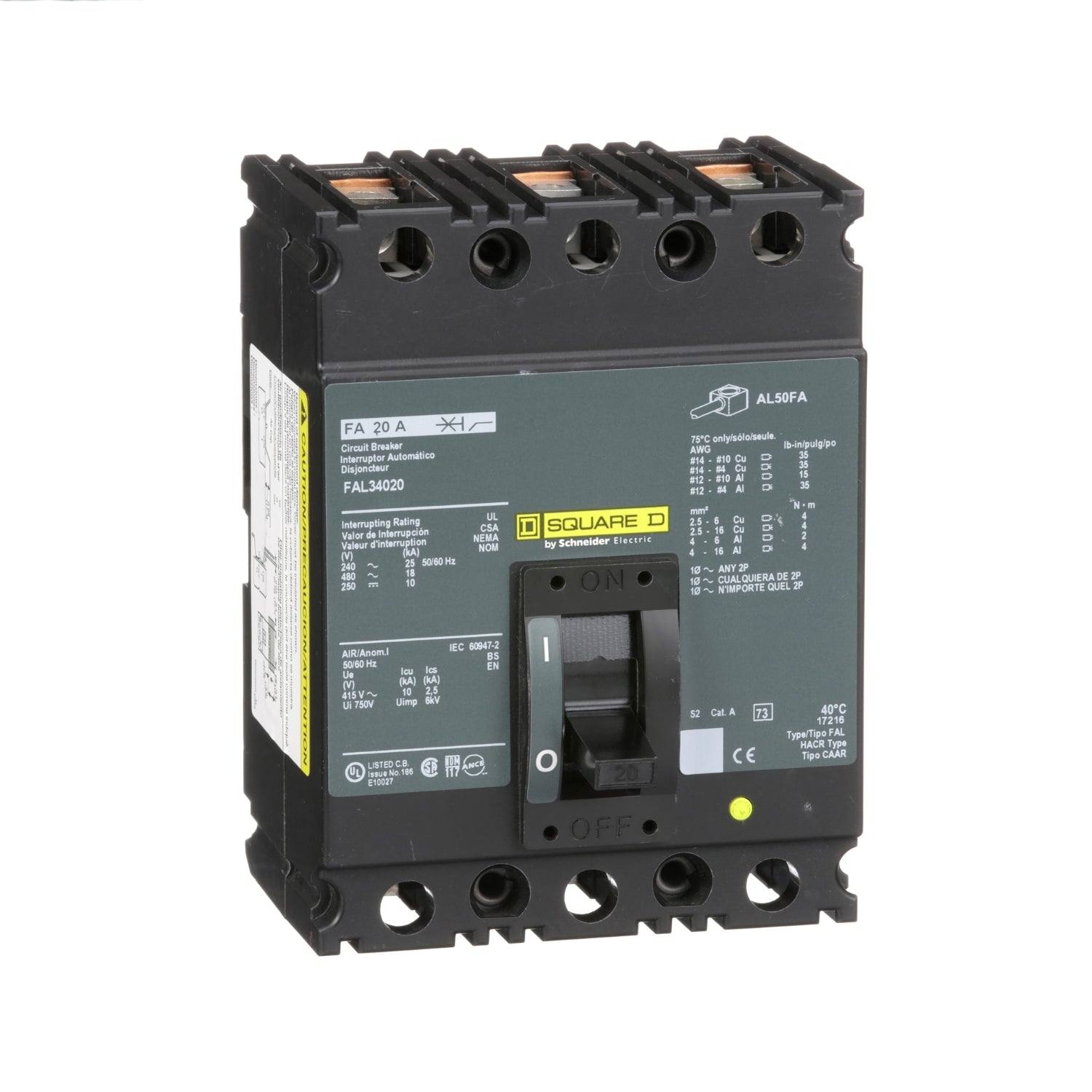

Product Description P/N: FAL34020
Description
The FAL34020 is a 3-pole circuit breaker from Square D's FAL Series, specifically designed for applications requiring robust protection against overloads and short circuits. This type FAL circuit breaker operates at 480V with a current rating of 20A and features a standard interrupting capacity of 18kA at 480V. It includes both Long-Time (LI) and Instantaneous trip functions, essential for ensuring timely response to electrical faults. The breaker supports feed-thru wiring configuration and is equipped with line and load side lug terminals for secure electrical connections. Built with a thermal magnetic molded case, it combines reliability and durability in protecting electrical systems.
Technical Specifications
|
Part # |
FAL34020 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
20 A |
|
Number of Poles |
3P |
|
Breaking capacity code |
A |
|
Mounting Mode |
Unit mount |
|
Magnetic Hold Current |
275 A |
|
Magnetic Tripping Current |
600 A |
|
Electrical Connection |
Lugs, load; Lugs, line |
|
Terminal Identifier |
AL50FA |
|
Phase Connection |
ABC |
|
Height |
6.4 in (162.56 mm) |
|
Width |
4.5 in (114.30 mm) |
|
Depth |
4.13 in (104.90 mm) |
Information About FAL34020
The FAL34020 circuit breaker, part of the Square D FAL Series, is a 3-pole molded case circuit breaker designed for robust performance in industrial applications. It features a current rating of 20A at 480V AC, suitable for three-phase systems. The breaker offers a standard interrupting capacity with an 18kA rating at 480V AC, ensuring effective protection against overloads and short circuits within electrical systems.
Equipped with thermal magnetic trip technology, the FAL34020 integrates Long-Time and Instantaneous trip functions. This configuration enhances its capability to respond promptly to various fault conditions, thereby safeguarding electrical circuits from damage due to excessive currents. The breaker is designed with feed-thru wiring configuration, facilitating efficient installation and maintenance procedures.
For connectivity, the FAL34020 includes both line and load side lug terminals, identified as AL50FA, ensuring secure electrical connections that meet operational requirements. The phase connection arrangement is configured as ABC, adhering to standard practices in three-phase electrical systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
