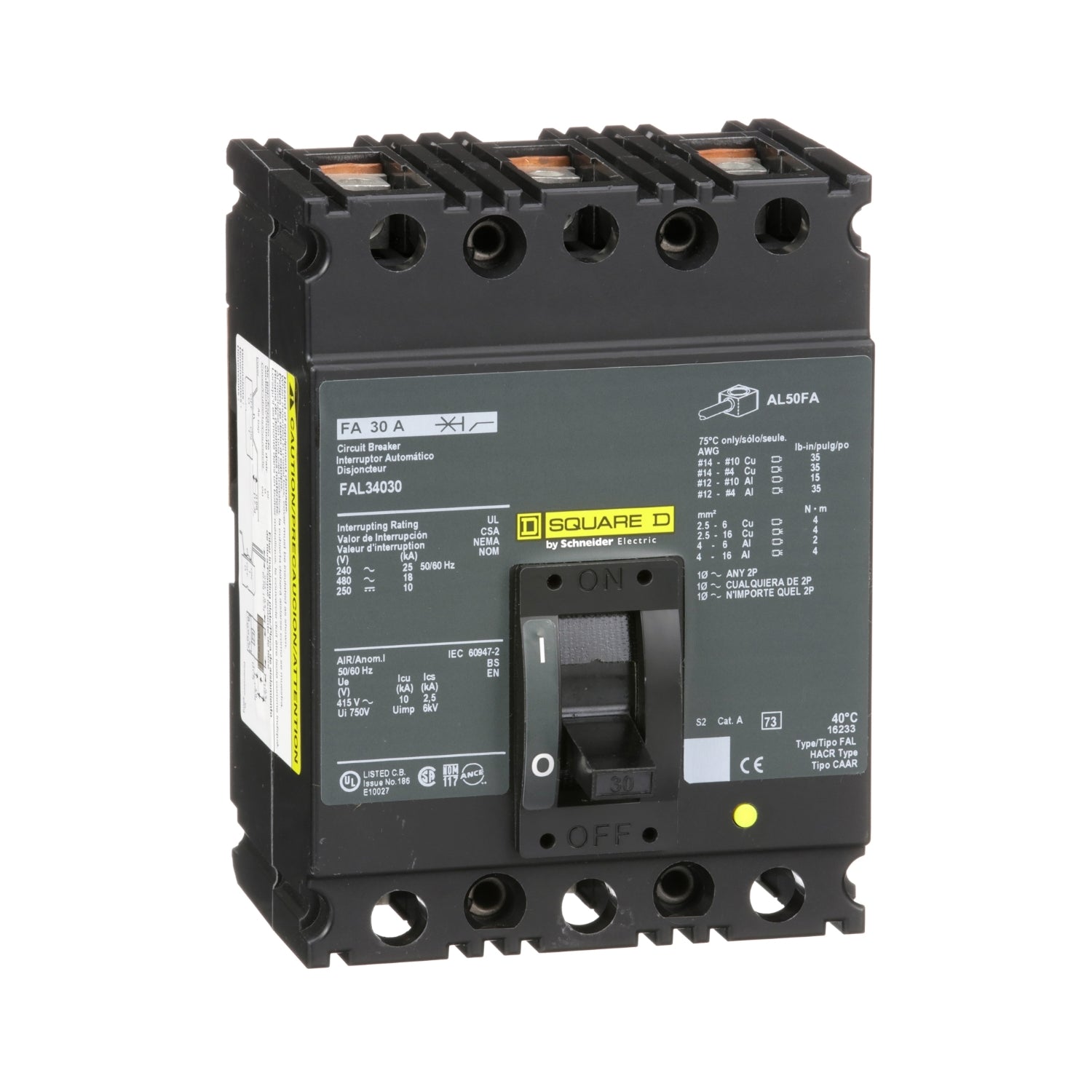

FAL34030 | Schneider Electric Circuit Breaker
- Regular price
- $344.00
- Sale price
- $344.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FAL34030
Description
The Schneider Electric FAL34030 is a 30-amp, 3-pole molded case circuit breaker engineered for reliable protection in three-phase power systems. This FAL Series breaker operates at 480V and uses thermal-magnetic sensing to provide long-time overload and instantaneous short-circuit protection. Designed for feed-thru applications, the FAL34030 includes line and load lugs for straightforward integration into industrial and commercial installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FAL34030 |
| Subcategory | Molded Case Circuit Breaker |
| Family | FAL Series |
| Type | FAL |
| Voltage Rating | 480 V AC |
| Amperage Rating | 30 A |
| Poles | 3 |
| Phase | 3-Phase |
| Interrupting Capacity | 18 kA @ 480 V |
| Protection Type | Thermal-Magnetic |
| Functions | LI – Long-Time and Instantaneous |
| Connection Type | Feed-Thru |
| Frame Type | F Frame |
| Terminal Type | Line and load side lugs |
| Application | Industrial and commercial distribution systems |
Information About FAL34030
The FAL34030 is part of Schneider Electric’s FAL Series, a family of molded case breakers built for dependable circuit protection in demanding environments. Its F-Frame construction provides a durable housing engineered to withstand mechanical stress and electrical load conditions. The breaker is compatible with standard three-phase distribution systems, offering secure integration through a feed-thru connection with factory-installed lug terminals. It is typically used in industrial panels, motor control centers, and commercial distribution equipment, leveraging thermal-magnetic trip technology to manage overloads and short-circuit events efficiently.
Key Features:
- F-Frame construction: Robust molded case design suited for industrial environments.
- Thermal-magnetic protection: Long-time overload and instantaneous short-circuit response.
- 3-pole configuration: Supports balanced protection across three-phase systems.
- 30A current rating: Suitable for light-to-medium power distribution loads.
- 480V AC operation: Designed for commercial and industrial voltage levels.
- 18 kA interrupt rating: Handles substantial fault currents at 480V.
- Feed-thru connection: Simplifies system integration with line and load lugs.
- LI trip functions: Includes long-time and instantaneous trip settings.
- FAL Series compatibility: Matches standard mounting and application requirements for this breaker line.
- Thermal-magnetic sensing: Combines two protective mechanisms in one compact device.
- Molded case enclosure: Provides insulation, mechanical protection, and arc containment.
The FAL34030 delivers the reliability and precision required for dependable circuit protection in industrial and commercial power systems.
