FAL34060 | Schneider Electric Circuit Breaker
- Regular price
- $742.00
- Sale price
- $742.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FAL34060
Description

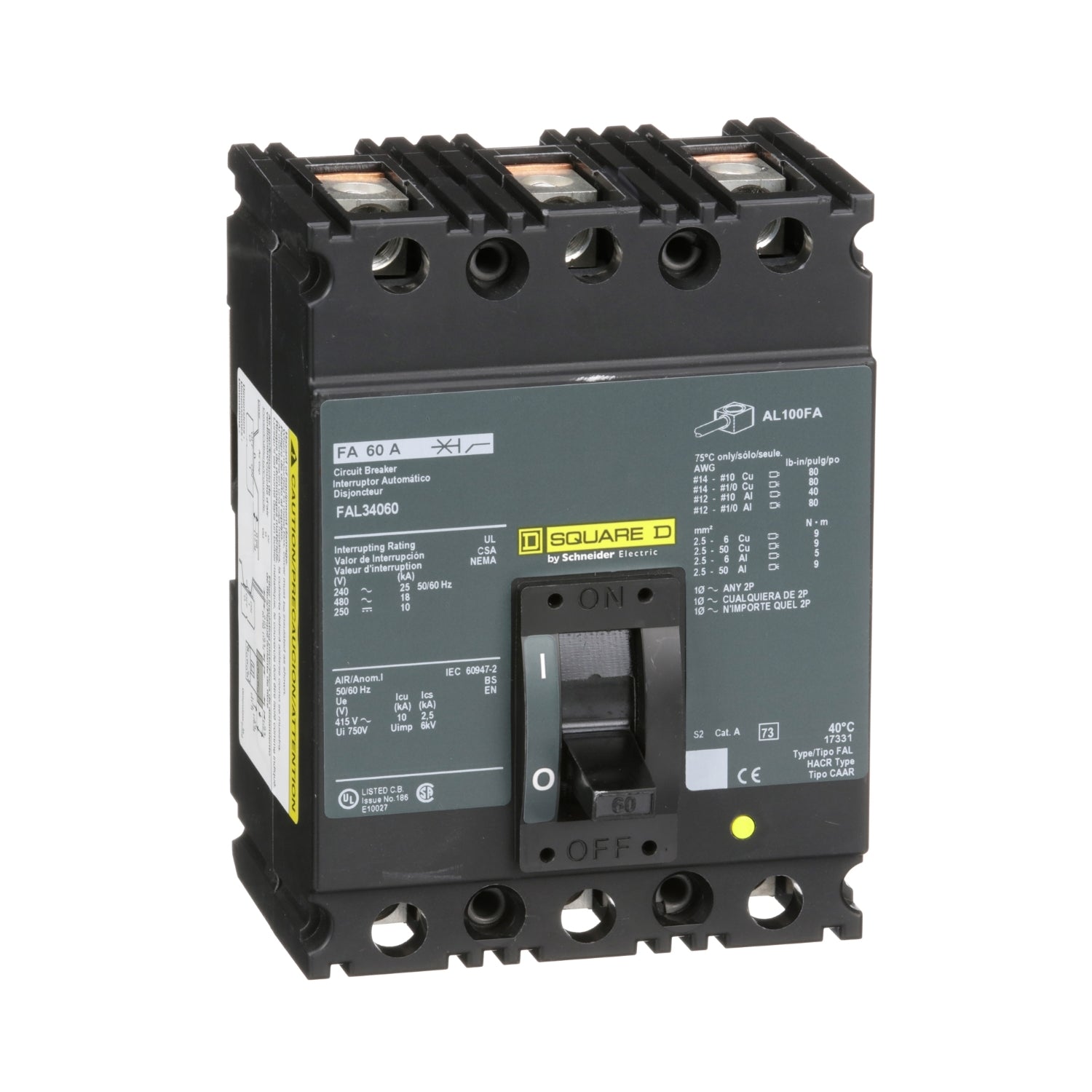

The Square D FAL34060 is a molded case circuit breaker designed to protect three-phase electrical systems from overloads and short circuits. Rated at 60 amps and 480 volts, it uses a thermal-magnetic trip mechanism with long-time and instantaneous protection functions. This breaker is intended for unit-mount installations in commercial and industrial power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | FAL34060 |
| Subcategory | Molded Case Circuit Breaker |
| Series | FAL Series |
| Line Rated Current | 60 A |
| Number of Poles | 3 |
| Rated Voltage | 480 V AC |
| Interrupting Rating | 18 kA at 480 V |
| Trip Unit Type | Thermal Magnetic |
| Breaking Capacity Code | A |
| Mounting Mode | Unit mount |
| Magnetic Hold Current | 800 A |
| Magnetic Tripping Current | 1450 A |
| Phase Connection | ABC |
| Terminal Identifier | AL100FA |
| Application Rating | HACR |
| Height | 6.4 in (162.56 mm) |
| Width | 4.5 in (114.30 mm) |
| Depth | 4.13 in (104.90 mm) |
Information About FAL34060
The FAL34060 is part of the Square D FAL Series, a family of thermal-magnetic molded case circuit breakers engineered for reliable circuit protection. It features a compact molded case construction with integrated line and load side lugs for feed-through power connections. The breaker is compatible with standard unit-mount panel configurations and supports three-phase ABC power systems. Typical usage includes branch and feeder protection in HVAC, lighting, and general-purpose industrial electrical installations.
Key Features:
- FAL Series design: Engineered for dependable commercial and industrial protection.
- Thermal-magnetic trip unit: Combines overload and short-circuit protection.
- 60 A current rating: Suitable for moderate three-phase load applications.
- 480 V operating voltage: Designed for high-voltage AC systems.
- 3-pole configuration: Supports three-phase power distribution.
- Long-time trip function: Protects conductors from sustained overload conditions.
- Instantaneous trip function: Provides rapid response to short circuits.
- Standard interrupting capacity: Rated to interrupt up to 18 kA at 480 V.
- Unit-mount construction: Allows straightforward panel integration.
- HACR rated: Approved for heating, air conditioning, and refrigeration circuits.
The FAL34060 delivers the reliability and precision required for three-phase branch and feeder circuit protection in industrial and commercial electrical systems.
