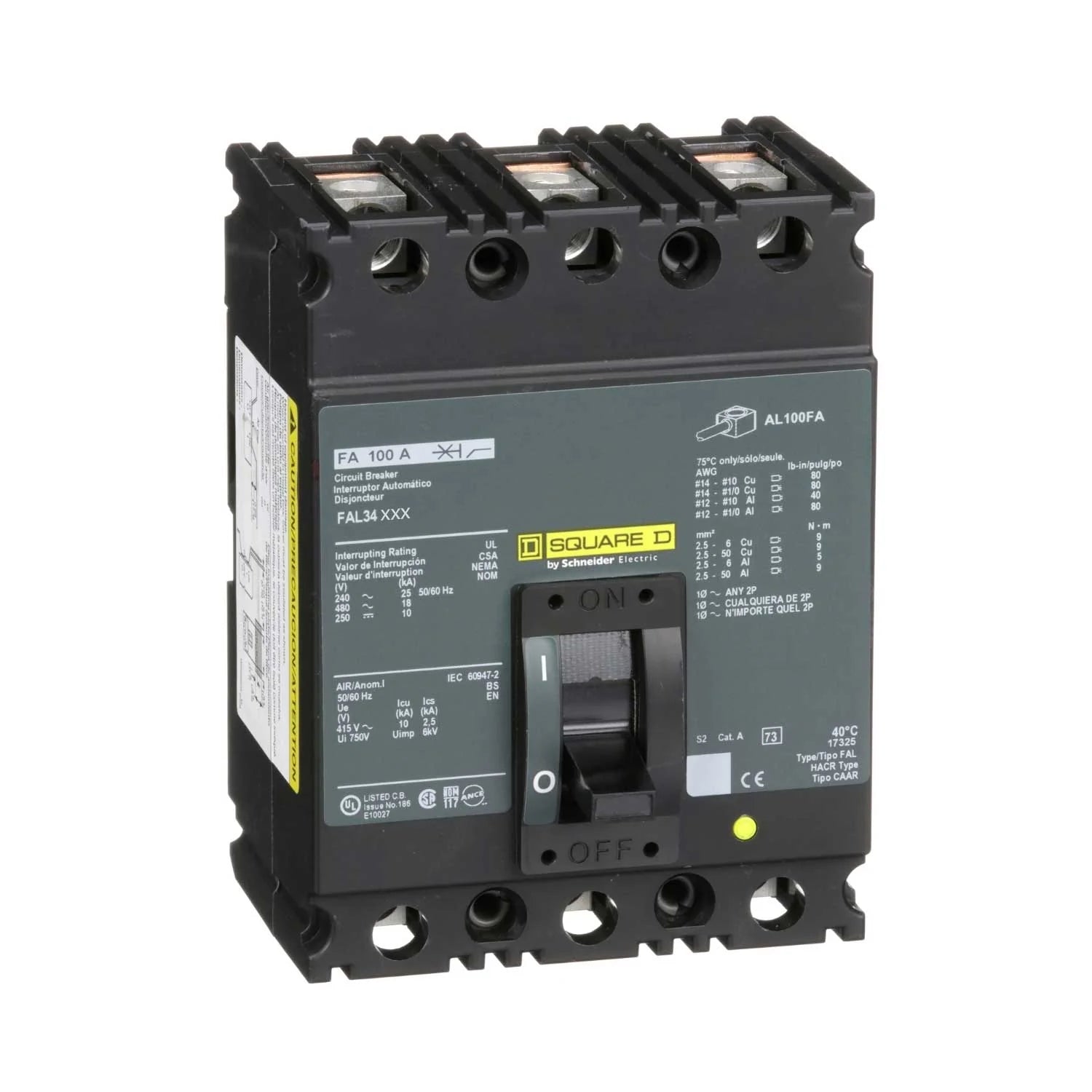

FAL34070 | Schneider Electric Square D FAL Series 3-Pole 70A 480V Molded Case Circuit Breaker
- Regular price
- $929.00
- Sale price
- $929.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FAL34070
Description
The Schneider Electric Square D FAL34070 is a three-pole molded case circuit breaker designed for reliable overcurrent protection in three-phase electrical distribution systems. It operates at 70 amps and 480 volts with standard interrupting capacity and unit-mount construction.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FAL34070 |
| Subcategory | Molded Case Circuit Breaker |
| Series / Family | FAL Series |
| Breaker Type | FAL |
| Line Rated Current | 70 A |
| Number of Poles | 3 |
| Phase Connection | ABC |
| Rated Voltage | 480 V AC |
| Breaking Capacity Code | A (Standard Interrupting Capacity) |
| Interrupting Capacity | 18 kA @ 480 V |
| Trip Function | LI (Long-Time, Instantaneous) |
| Trip Technology | Thermal Magnetic |
| Mounting Mode | Unit Mount |
| Magnetic Hold Current | 800 A |
| Magnetic Tripping Current | 1450 A |
| Electrical Connection | Line and Load Lugs |
| Terminal Identifier | AL100FA |
| Application Rating | HACR Rated |
| Height | 6.4 in (162.56 mm) |
| Width | 4.5 in (114.30 mm) |
| Depth | 4.13 in (104.90 mm) |
Information About FAL34070
The FAL34070 is a molded case circuit breaker from the Schneider Electric Square D FAL series engineered for dependable protection of three-phase electrical systems. It incorporates a thermal-magnetic LI trip unit that provides coordinated long-time overload protection and instantaneous short-circuit response. The breaker is designed with feed-thru capability and includes line and load side lug terminals to support flexible installation within distribution panels. It is commonly applied in commercial and industrial environments where standard interrupting capacity and fixed trip characteristics are required.
Key Features
- Three-pole configuration: Provides coordinated protection for three-phase electrical circuits.
- 70 amp current rating: Suitable for feeder and branch circuit protection in industrial applications.
- Thermal-magnetic LI trip unit: Combines long-time overload sensing with instantaneous short-circuit protection.
- 18 kA interrupting capacity: Meets standard fault interruption requirements at 480 VAC.
- Feed-thru capable design: Allows versatile integration into electrical distribution layouts.
- Unit-mount construction: Enables direct mounting within panels and switchgear assemblies.
- HACR rated application: Approved for heating, air conditioning, and refrigeration circuits.
The FAL34070 delivers the reliability and precision required for consistent overcurrent protection in Schneider Electric Square D FAL series three-phase power distribution systems.
