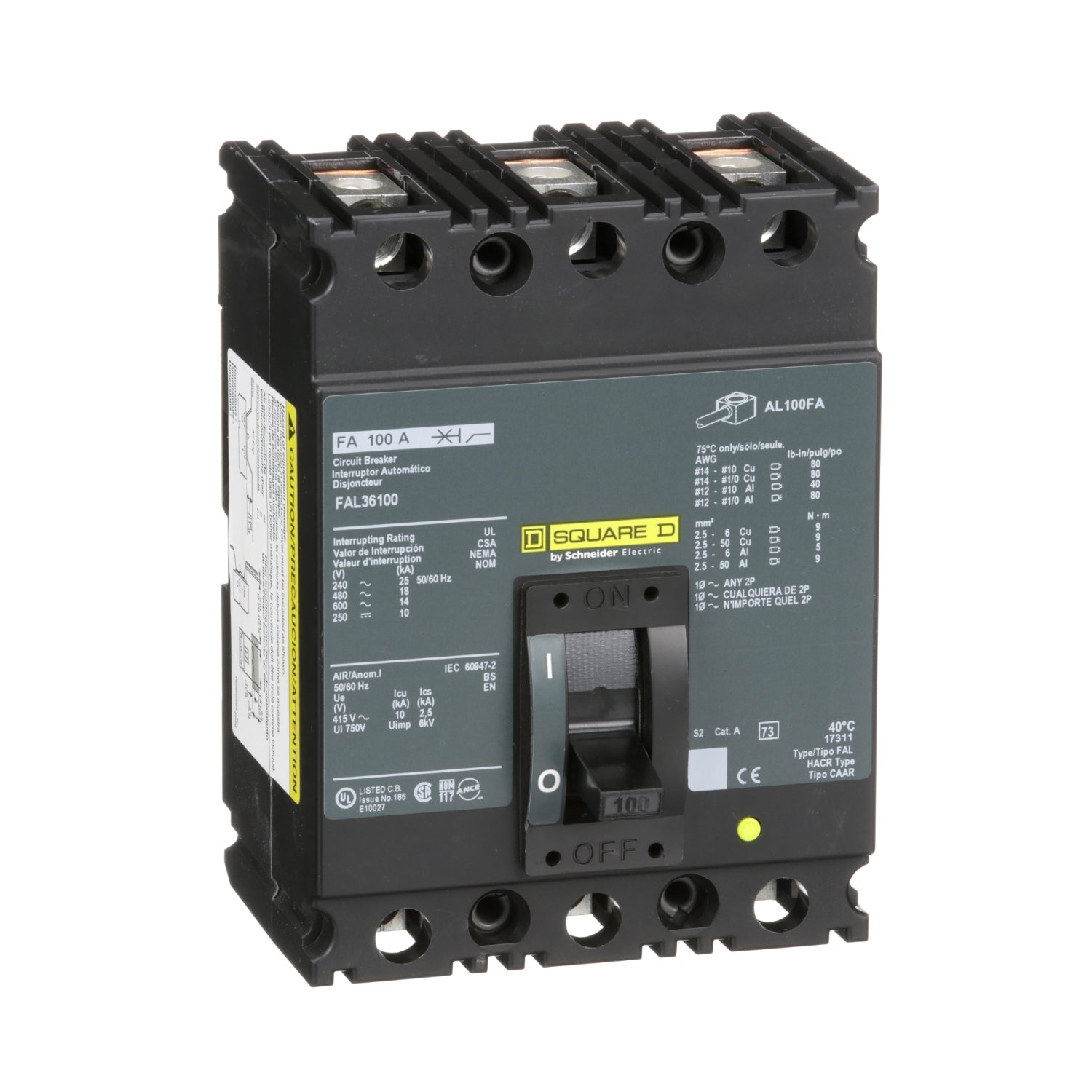

FAL36100 | Schneider Electric Circuit Breaker
- Regular price
- $767.00
- Sale price
- $767.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FAL36100
Description
The FAL36100 is a Square D circuit breaker from the FAL Series, specifically a type FAL, featuring 3 poles. It operates with a line rated current of 100A and has a voltage rating of 600V. With an interrupting capacity of 14kA at 600V, it offers standard interrupting capability. This circuit breaker is designed as a feed-thru model and comes complete with LI (Long-Time) and Instantaneous trip functions. It is equipped with both line and load side lug terminals. Furthermore, it belongs to the category of thermal magnetic molded case circuit breakers.
Technical Specifications
|
Part Number |
FAL36100 |
|
Manufacturer |
Schneider Electric / Square D |
|
Family |
FAL Series |
|
Pole |
3 |
|
Amp |
100 |
|
Volt |
600 |
|
Phase |
3 |
|
Category |
Molded Case / 3-Pole |
|
Connection |
Feed-Thru |
|
Type |
FAL |
|
Functions |
LI - Long-Time and Instantaneous |
|
Protection |
Thermal Magnetic |
|
AIC Ratings |
18kA@480V |
Information About FAL36100
The FAL36100 circuit breaker, belonging to the FA series by Square D, is designed for robust electrical protection in industrial settings. It features a 3-pole configuration, suitable for three-phase applications. With a current rating of 100A, it effectively manages electrical loads up to 600 volts.
Operating within a 600V system, the FAL36100 offers reliable performance with a standard interrupting capacity of 14kA@600V, ensuring safe operation even during high current faults. Equipped with thermal magnetic trip technology, this molded case circuit breaker (MCCB) provides efficient protection against overloads and short circuits.
Designed for flexibility and ease of installation, the FAL36100 features a feed-thru connection type, facilitating convenient wiring configurations. It comes complete with both LI (Long-Time) and Instantaneous trip functions, allowing precise control over trip settings to suit various application requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
