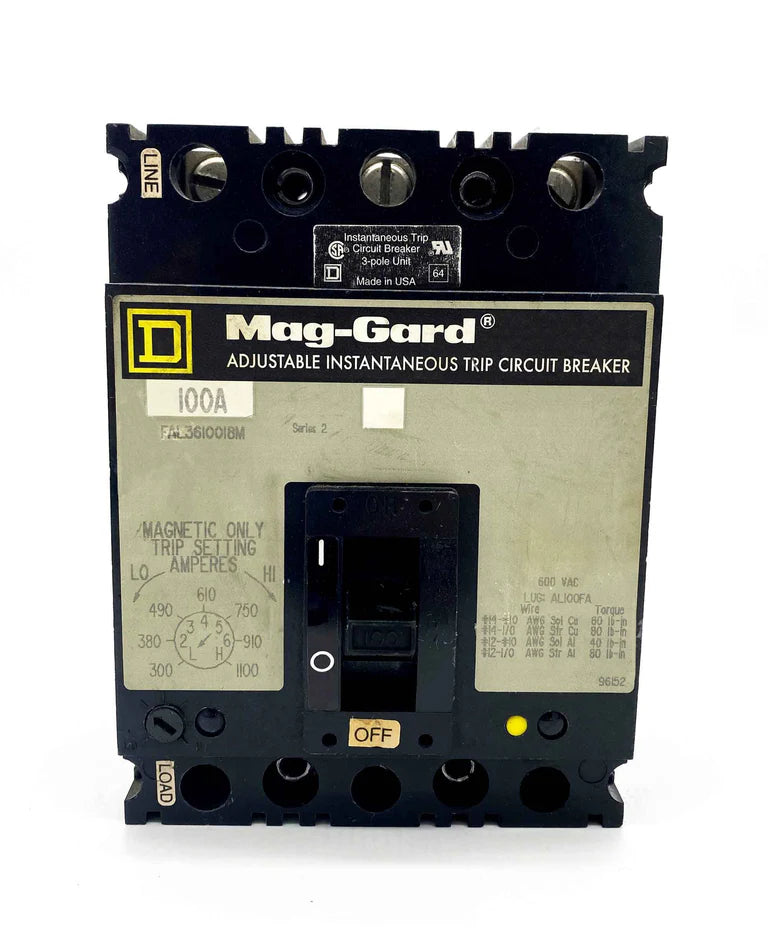

FAL3610018M | Schneider Electric FAL Series 100A 600V 3-Pole Molded Case Circuit Breaker
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FAL3610018M
Description
The Schneider Electric FAL3610018M is a molded case circuit breaker engineered to provide magnetic-only instantaneous protection in demanding three-phase electrical systems. It supports 600-volt applications and delivers reliable interruption of fault conditions for industrial power distribution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FAL3610018M |
| Subcategory | Molded Case Circuit Breaker |
| Family | FAL Series |
| Type | FAL |
| Voltage | 600 V AC |
| Amperage | 100 A |
| Connection | Feed-Thru |
| Frame Type | F Frame |
| AIC Rating | 18kA @ 480V |
| Phase | 3 |
| Functions | I – Instantaneous |
| Poles | 3 |
| Protection | Magnetic Only |
| Trip Type | Instantaneous Magnetic Trip |
| Application | Industrial Power Distribution |
| Interrupting Class | High-Fault Capability |
| Mounting Style | Panel Mount |
Information About FAL3610018M
The FAL3610018M is a molded case breaker from Schneider Electric’s FAL Series designed for industrial environments where fast, magnetic-only fault interruption is required. Built on the durable F Frame platform, it provides structural stability and consistent thermal performance while supporting high-voltage distribution up to 600 volts. Its feed-thru configuration enables straightforward integration into three-phase systems, ensuring a secure electrical interface in both new installations and service replacements. With an interrupting capacity of 18 kA at 480 volts, this breaker offers a strong level of fault-clearing capability suitable for heavy-duty equipment and facility infrastructure.
Key Features
- Magnetic-Only Protection: Utilizes instantaneous magnetic response to disconnect circuits rapidly when high-level fault currents occur, preventing equipment damage.
- High Interrupting Capacity: Rated at 18 kA at 480 volts, enabling safe interruption of significant fault currents in industrial power systems.
- Durable F Frame Construction: Provides mechanical strength, heat dissipation, and structural support for long-term reliability in demanding environments.
- Feed-Thru Connection Design: Allows the breaker to be installed inline within distribution circuits, simplifying wiring and maintaining secure conductor termination.
- 600-Volt Operating Capability: Supports higher-voltage industrial circuits while maintaining stable performance across multi-phase applications.
- 100-Amp Load Handling: Accommodates substantial electrical loads, making it suitable for motors, machinery, and facility-level distribution.
- Three-Pole Configuration: Ensures synchronized fault interruption across all phases, improving safety and reducing downtime during fault events.
- Instantaneous Trip Function: Designed for immediate fault response using “I” trip characteristics to clear short circuits before system components are compromised.
The FAL3610018M delivers the reliability and precision required for protecting industrial three-phase systems operating under high electrical demand.
