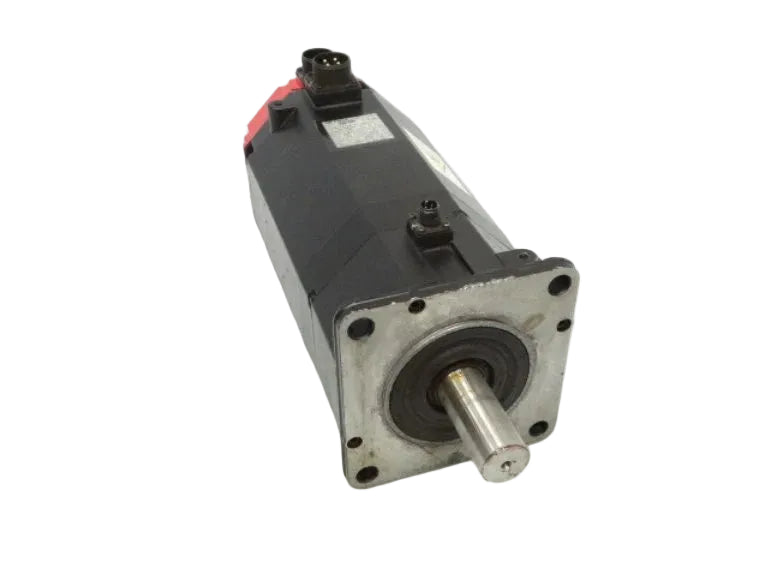

A06B-0147-B176 | FANUC 3.8kW 2000RPM 3PH AC Servo Motor
- Regular price
- $3,032.00
- Sale price
- $3,032.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0147-B176
Description
The FANUC A06B-0147-B176 is a three-phase AC servo motor engineered for high-performance industrial motion control. It delivers 3.8 kW output power with a rated speed of 2000 RPM and operates at 157 V. Designed with a permanent magnet excitation system and integrated brake, it supports precise torque and speed control in CNC and automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-0147-B176 |
| Subcategory | Servo Motor |
| Product Type | AC Servo Motor |
| Output Power | 3.8 kW |
| Voltage Rating | 157 V |
| Inverter Voltage | 200 V |
| Rated Current | 15 A |
| Stall Current | 19 A |
| Frequency | 133 Hz |
| Speed | 2000 RPM |
| Stall Torque | 22 Nm |
| Number of Phases | 3 |
| Excitation Mode | Permanent Magnetic Field |
| Insulation Class | Class F |
| Standards | CE |
| Weight | 76.95 lbs |
Information About A06B-0147-B176
The A06B-0147-B176 belongs to the FANUC A06B servo motor series and is commonly associated with the A22/2000 motor configuration. It operates at 133 Hz with a rated current of 15 A and supports inverter operation at 200 V. The motor provides 22 Nm stall torque and 19 A stall current, enabling stable performance under load conditions. Built with Class F insulation and CE compliance, it is suitable for industrial environments requiring reliable and continuous servo operation.
Key Features:
-
3.8 kW Output Power: Supports demanding CNC and industrial motion tasks.
-
2000 RPM Rated Speed: Provides consistent rotational performance.
-
157 V, 3-Phase Operation: Designed for industrial servo drive systems.
-
22 Nm Stall Torque: Ensures strong torque output under load.
-
Permanent Magnet Excitation: Enhances efficiency and dynamic response.
-
Integrated Brake: Allows controlled stopping and holding capability.
-
Class F Insulation: Suitable for elevated temperature industrial environments.
-
CE Compliant Design: Meets applicable regulatory standards.
The A06B-0147-B176 delivers the reliability and precision required for CNC servo motor and industrial automation applications.
