A06B-0368-B231 | FANUC 0.1kW 110VAC 5000RPM AC Servo Motor
- Regular price
- $4,447.00
- Sale price
- $4,447.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0368-B231
Description

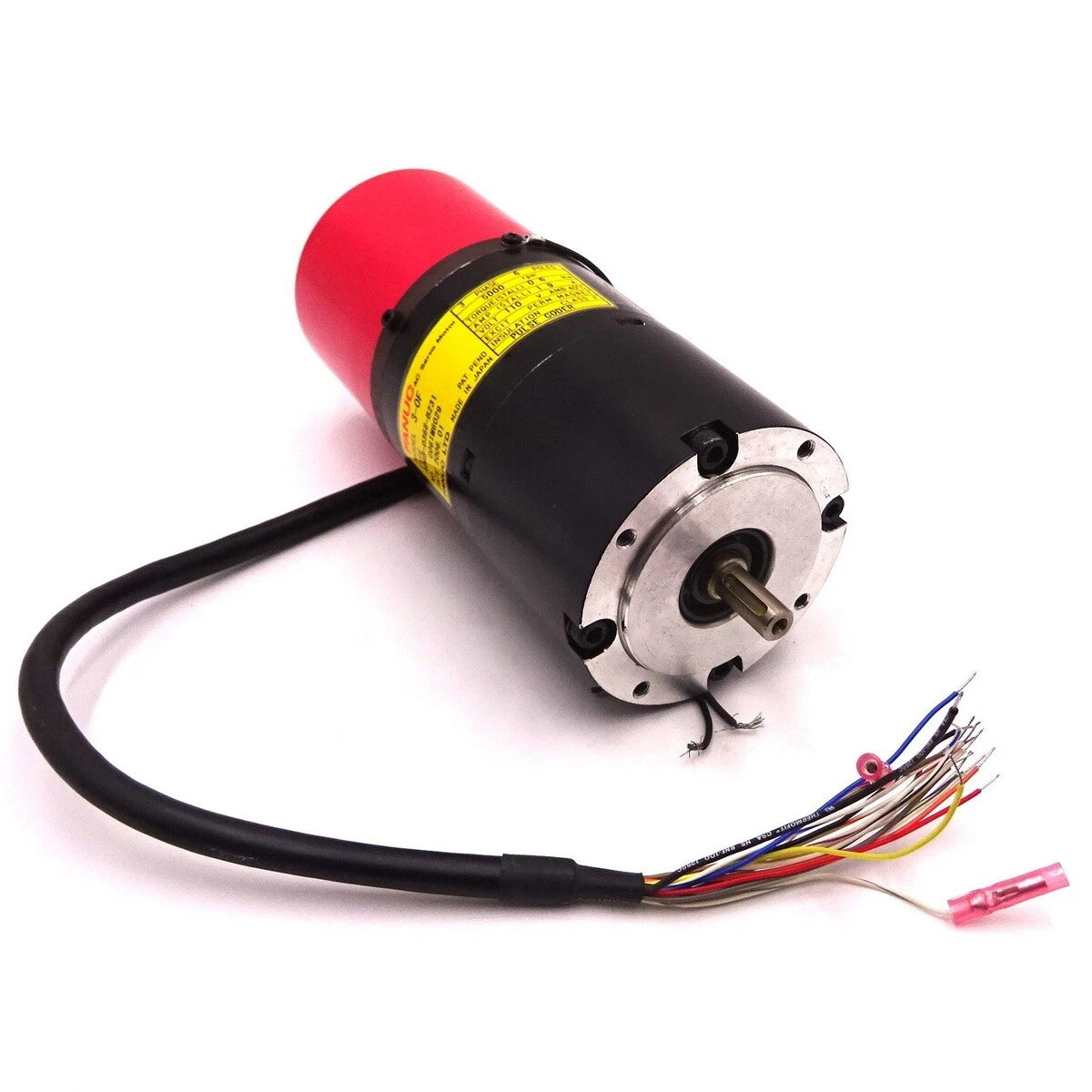

The FANUC A06B-0368-B231 is a compact AC servo motor designed for precision motion control applications. It operates at 110 VAC, delivers 0.1 kW rated output, and achieves speeds up to 5000 RPM. Equipped with an absolute 2000P encoder and integrated brake, it supports accurate positioning and controlled stopping performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-0368-B231 |
| Subcategory | Servo Motor |
| Product Type | AC Servo Motor |
| Voltage | 110 VAC |
| Phases | 3 |
| Rated Output | 0.1 kW |
| Rated Speed | 5000 RPM |
| Rated Current | 2 A |
| Torque | 0.6 N·m |
| Number of Poles | 6 |
| Encoder Type | 2000P Absolute |
| Shaft Type | Keyed shaft |
| Cooling Method | Fan cooled |
| Insulation Class | Class F |
| Brake | Yes |
| Weight | 4.62 lbs |
Information About A06B-0368-B231
The A06B-0368-B231 belongs to the FANUC A06B series of AC servo motors used in CNC and industrial automation systems. It is a three-phase motor with a six-pole configuration and features a keyed shaft for secure mechanical coupling. The unit provides 0.6 N·m torque output and operates at approximately 2 A current under rated conditions. Designed with fan cooling and Class F insulation, it supports stable operation in moderate industrial environments while delivering precise feedback through its 2000P absolute encoder.
Key Features:
-
0.1 kW Rated Output: Suitable for light-duty precision motion applications.
-
5000 RPM Rated Speed: Supports high-speed positioning tasks.
-
110 VAC, 3-Phase Operation: Designed for compatible servo drive systems.
-
0.6 N·m Torque: Provides controlled mechanical output for automation tasks.
-
2000P Absolute Encoder: Ensures accurate positional feedback.
-
Integrated Brake: Enables controlled stopping and holding capability.
-
6-Pole Motor Design: Supports stable rotational performance.
-
Keyed Shaft Configuration: Allows secure mechanical coupling.
The A06B-0368-B231 delivers the reliability and precision required for compact servo motor and CNC positioning applications.
