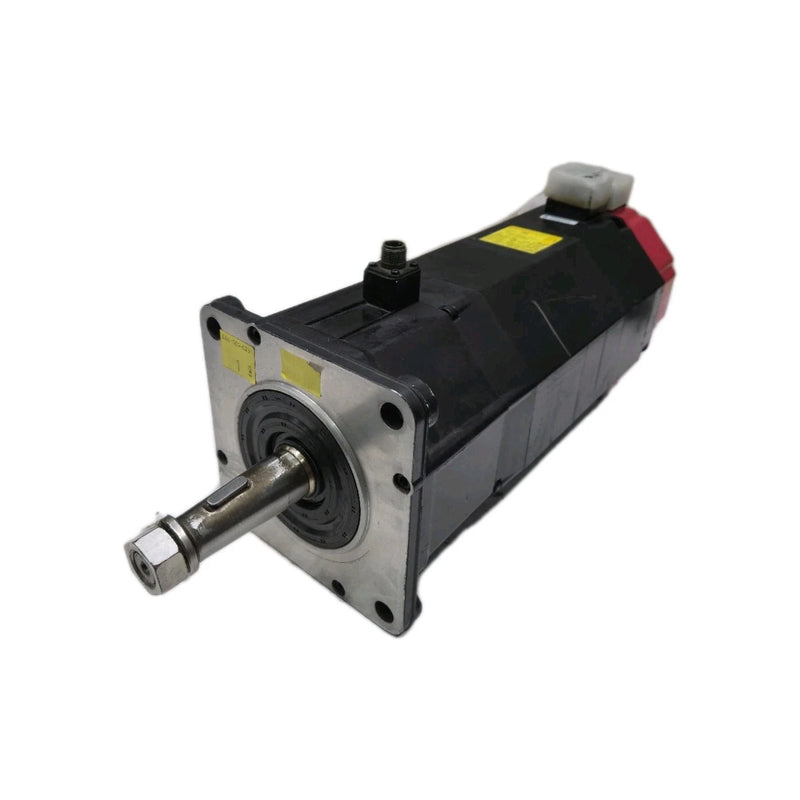

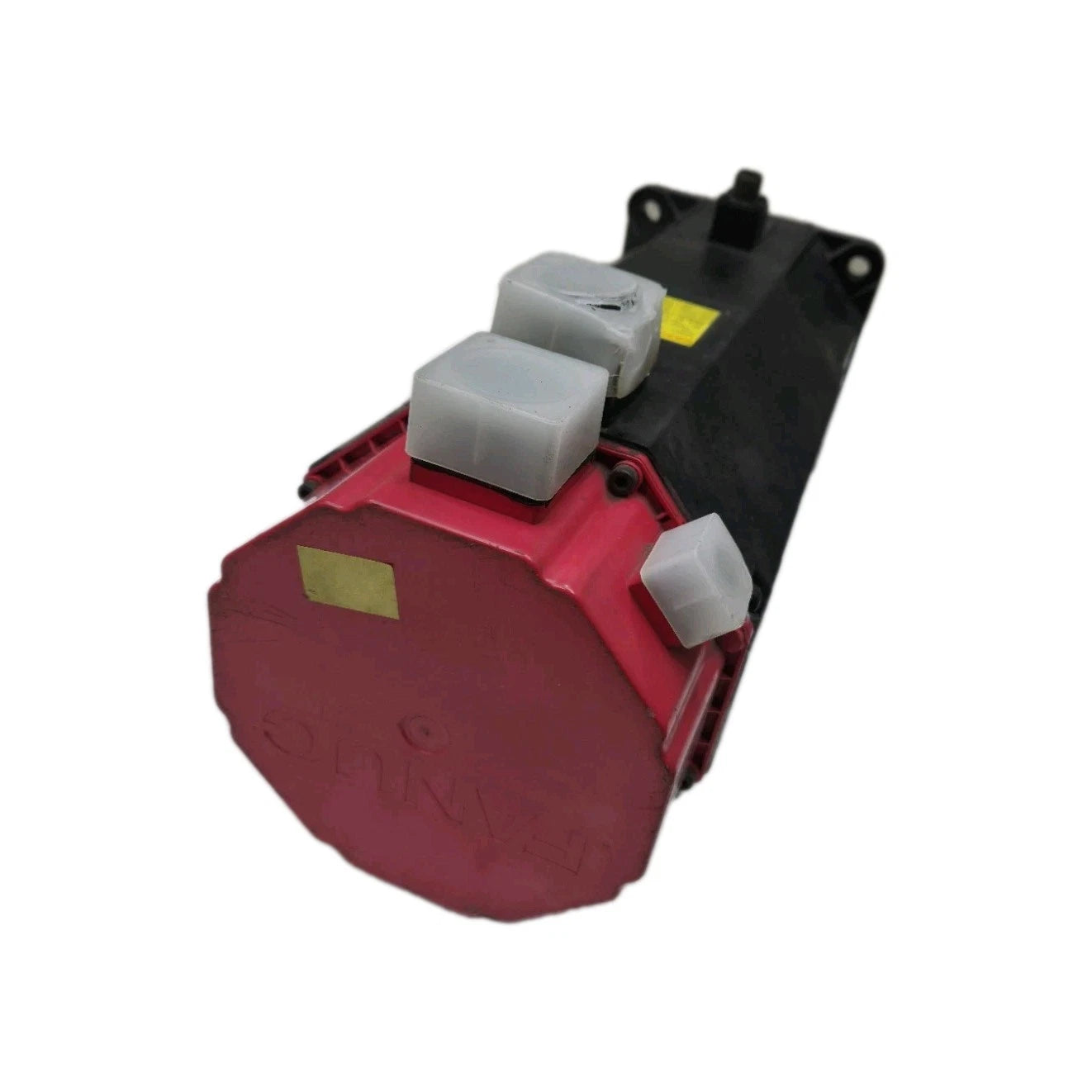

A06B-0502-B751 | FANUC 20S 3.5kW 146VAC 2000RPM Servo Motor
- Regular price
- $2,452.00
- Sale price
- $2,452.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0502-B751
Description
The FANUC A06B-0502-B751 is a 3-phase AC servo motor designed for precision motion control in industrial automation systems. It operates at 146 VAC and delivers a rated output of 3.5 kW with a maximum speed of 2,000 RPM. Equipped with an incremental encoder and built-in dynamic brake, it provides accurate positional feedback and controlled stopping performance.
Technical Specifications
| Specification | Details |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-0502-B751 |
| Subcategory | Servo Motor |
| Series | 20S (A06B Series) |
| Voltage Rating | 146 VAC |
| Rated Phase | 3-Phase |
| Rated Output | 3.5 kW |
| Rotational Speed | 2,000 RPM |
| Number of Poles | 8 |
| Stall Current Rating | 20 A |
| Encoder Type | Incremental encoder |
| Excitation Method | Permanent magnet |
| Insulation Class | Class F |
| Braking Unit | Built-in dynamic brake |
| Cooling Method | Natural cooling |
| Mounting Method | Flange mount |
| Ambient Operating Temperature | 0 to 40°C (non-condensing) |
| Weight | 84.00 lbs |
Information About A06B-0502-B751
The A06B-0502-B751 belongs to the FANUC A06B series and is commonly referenced as a 20S type AC servo motor. It utilizes permanent magnet excitation and features an 8-pole design for stable rotational performance. The motor is flange-mounted and naturally cooled, allowing installation in enclosed industrial environments without auxiliary cooling systems. Designed for operation within 0 to 40°C ambient temperatures, it meets Class F insulation standards and supports CNC and automated machinery applications.
Key Features:
-
3.5 kW Rated Output: Supports demanding motion control and positioning applications.
-
146 VAC, 3-Phase Operation: Designed for industrial servo drive systems.
-
2,000 RPM Speed Rating: Provides consistent rotational performance for CNC machinery.
-
Incremental Encoder: Enables precise position and speed feedback.
-
Built-In Dynamic Brake: Allows rapid stopping and improved operational control.
-
8-Pole Motor Design: Ensures smooth torque delivery and stable operation.
-
Permanent Magnet Excitation: Enhances efficiency and torque characteristics.
-
Flange Mount Construction: Facilitates integration into machine assemblies.
The A06B-0502-B751 delivers the reliability and precision required for CNC and industrial servo motor applications.
