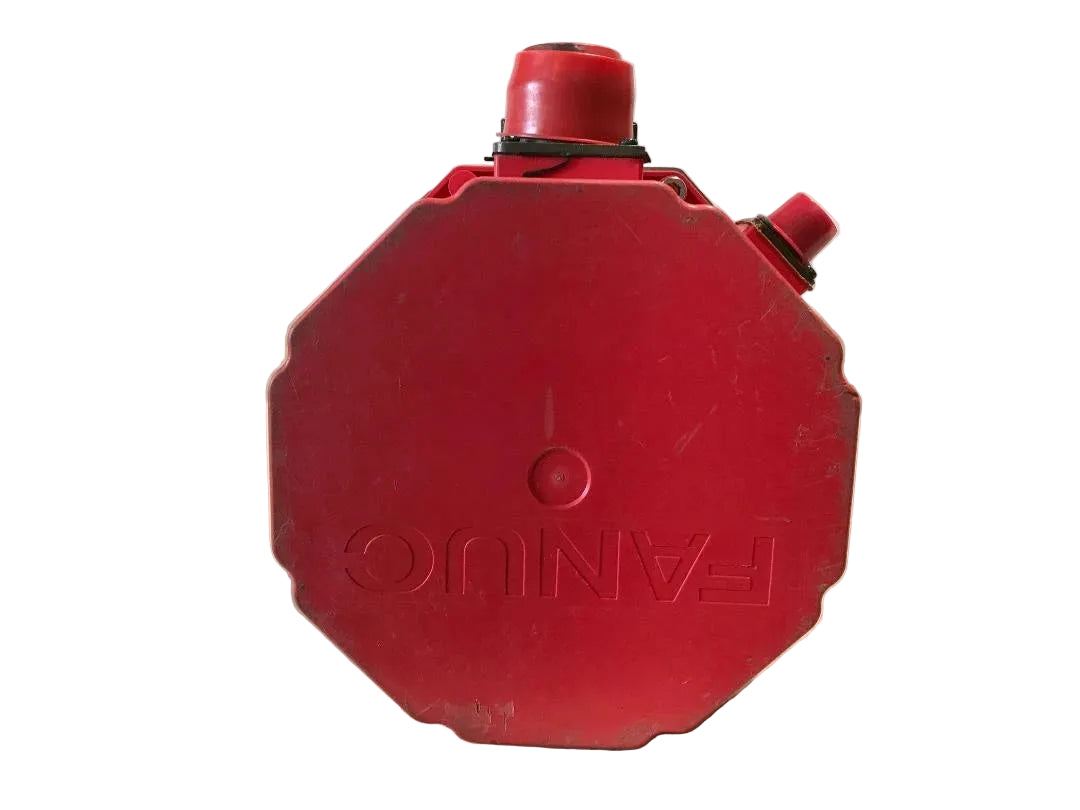

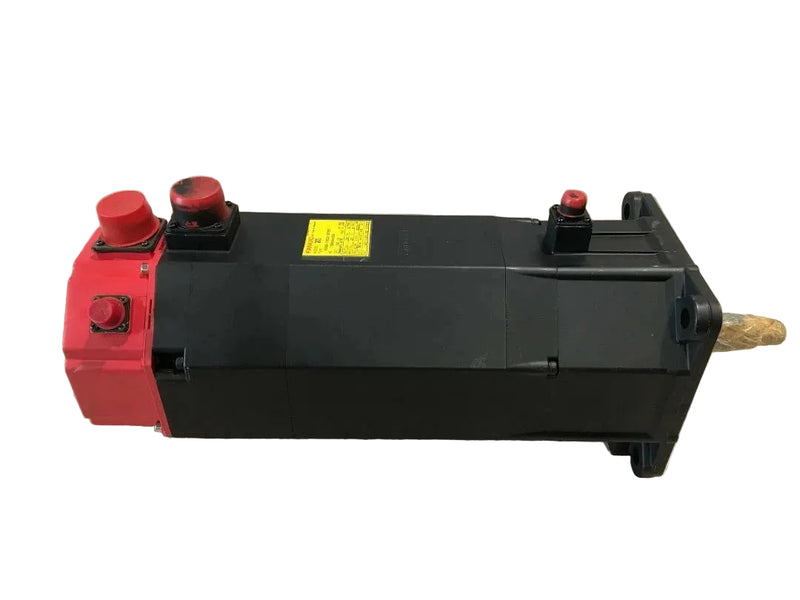

A06B-0502-B755 | FANUC 23Nm AC Servo Motor 2000RPM 146V
- Regular price
- $4,544.00
- Sale price
- $4,544.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-0502-B755
Description
The FANUC A06B-0502-B755 is a 3-phase AC servo motor designed for CNC and industrial automation systems requiring high torque performance. It operates at 146 VAC with a rated speed of 2000 RPM and delivers a stall torque of 23 Nm. Built with an 8-pole permanent magnet design, it supports stable motion control in demanding applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-0502-B755 |
| Subcategory | Servo Motor |
| Motor Type | AC Servo Motor |
| Rated Speed | 2000 RPM |
| Voltage Rating | 146 VAC |
| Stall Torque | 23 Nm |
| Stall Current | 20 A |
| Number of Phases | 3-Phase |
| Number of Poles | 8 |
| Excitation | Permanent Magnet |
| Insulation Class | Class F |
| Feedback Device | Pulse Coder |
| Manufacturer Status | Discontinued |
| Weight | 80.00 lbs |
Information About A06B-0502-B755
The A06B-0502-B755 belongs to the FANUC A06B series and is engineered as a permanent magnet AC servo motor for precision positioning systems. It features a stall current rating of 20 A and integrates a pulse coder for accurate speed and position feedback. The motor utilizes Class F insulation to withstand elevated operating temperatures. Designed for 3-phase operation, it provides consistent torque and rotational stability for CNC machine tool environments.
Key Features:
-
23 Nm Stall Torque: Supports high-load motion control applications.
-
2000 RPM Rated Speed: Suitable for CNC positioning systems.
-
146 VAC Operation: Compatible with FANUC servo drive systems.
-
20 A Stall Current: Designed for defined torque conditions.
-
3-Phase Configuration: Ensures stable industrial motor performance.
-
8-Pole Design: Promotes smooth rotational characteristics.
-
Permanent Magnet Excitation: Provides efficient torque generation.
-
Integrated Pulse Coder: Enables precise position and speed feedback.
The A06B-0502-B755 delivers the reliability and precision required for CNC servo motor and industrial motion control applications.
