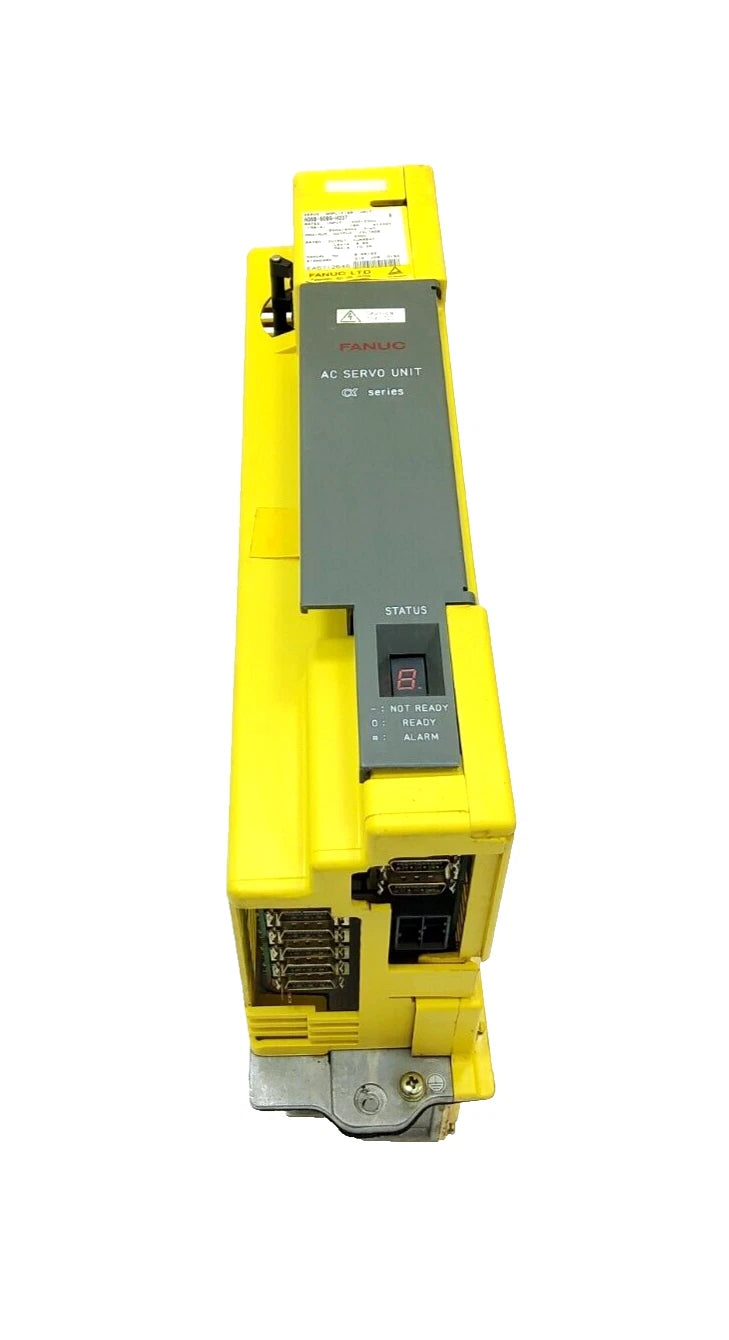

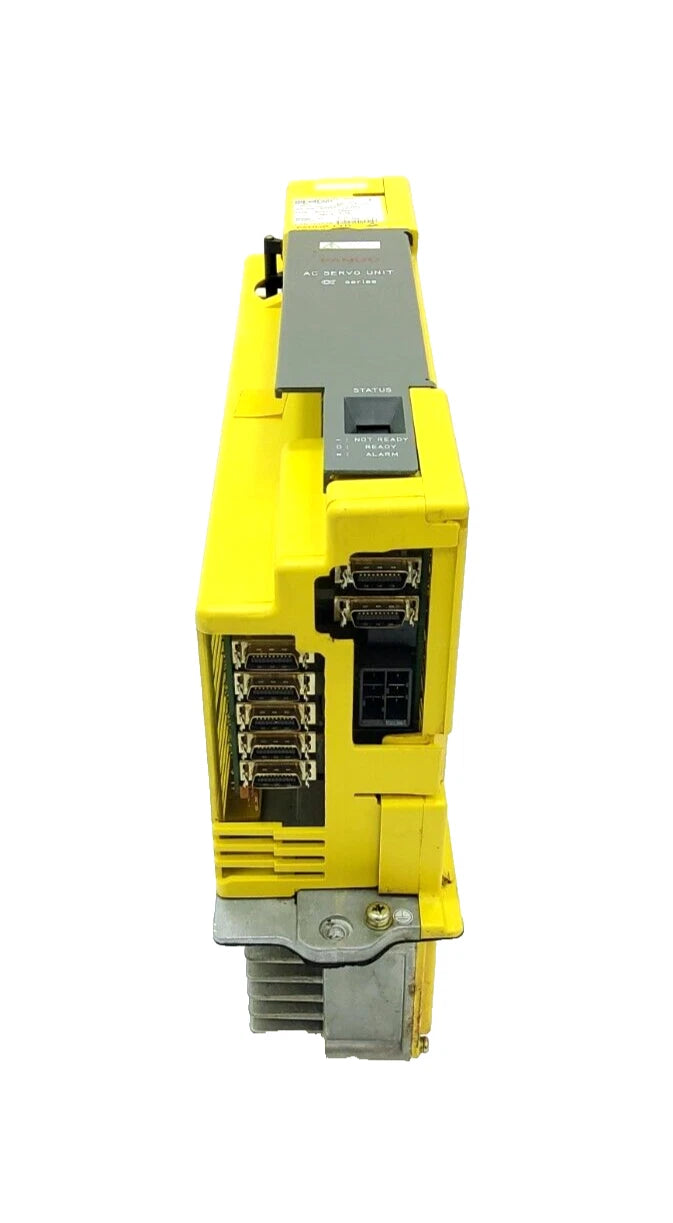

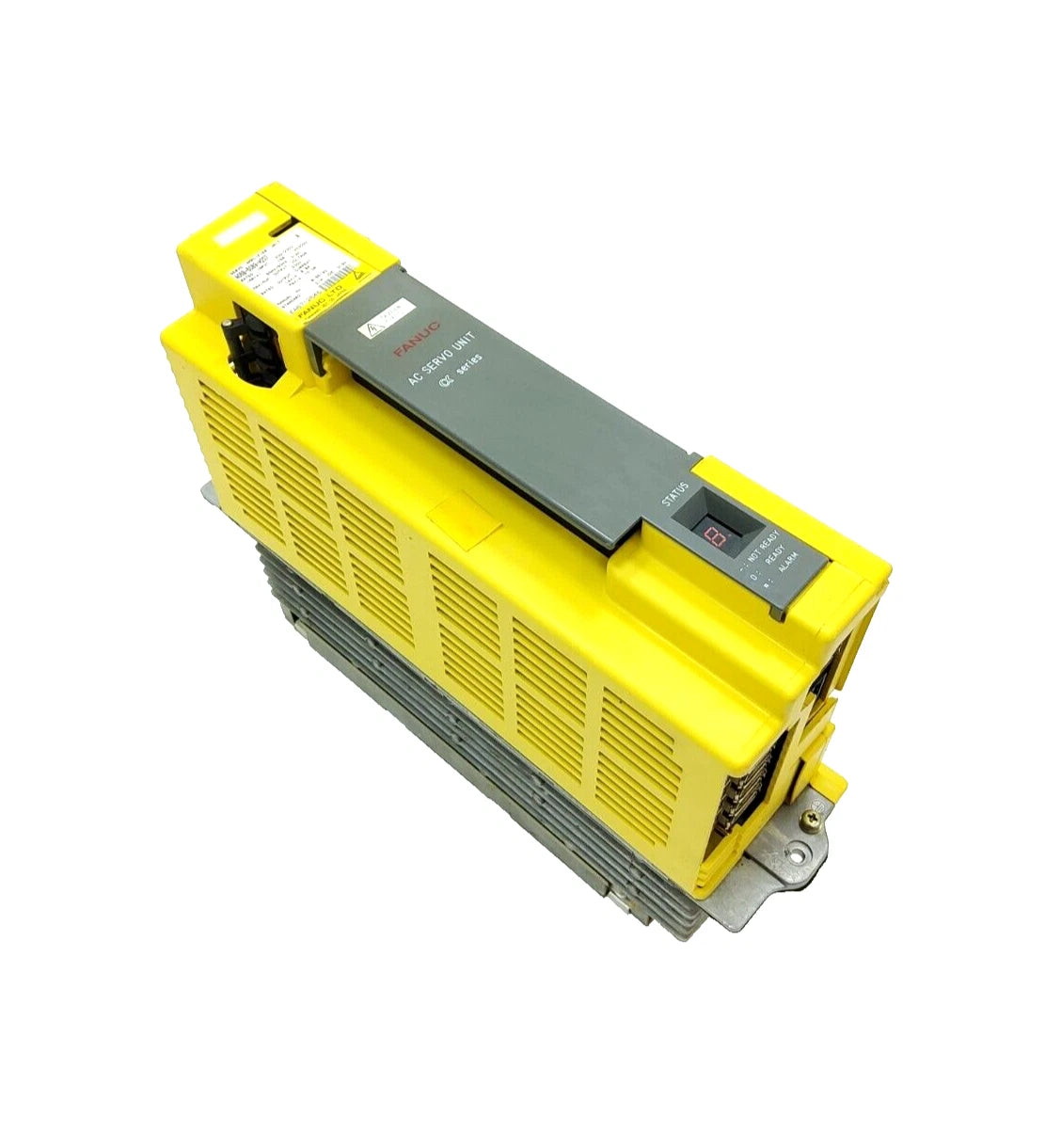

A06B-6089-H207 | FANUC Alpha Dual Axis Servo Amplifier 200–230VAC
- Regular price
- $2,774.00
- Sale price
- $2,774.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A06B-6089-H207
Description
The FANUC A06B-6089-H207 is a dual-axis AC servo amplifier designed for CNC systems operating on a 3-phase 200–230 VAC supply. It controls L-axis and M-axis motors with rated output currents of 8.8 A and 10 A respectively. Featuring a built-in dynamic braking unit, it supports controlled deceleration and stable axis performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | FANUC |
| Category | Servo Products |
| Part Number | A06B-6089-H207 |
| Subcategory | Servo Drive/Servo Control |
| Number of Controlled Axes | 2-Axis |
| Series | Alpha Series |
| Network Phase Type | 3-Phase |
| Power Supply Voltage | 200–230 VAC |
| Power Frequency | 50–60 Hz |
| Rated Output Current (L-Axis) | 8.8 A |
| Rated Output Current (M-Axis) | 10 A |
| Input Current Rating | 15 A at 200 VAC |
| Maximum Output Voltage | 230 VAC |
| Braking Unit | Built-In Dynamic Brake |
| Allowable Voltage Fluctuation | -15% to +10% |
| Instantaneous Power Failure Time | 3 ms |
| Weight | 11.99 lbs |
Information About A06B-6089-H207
The A06B-6089-H207 belongs to the FANUC Alpha series of servo amplifiers and is configured as a two-axis drive unit. It is engineered for integration into CNC control cabinets and supports both L-axis and M-axis motor configurations. The unit operates at 50–60 Hz and accepts allowable voltage fluctuations between -15% and +10% for stable industrial use. Designed for 3-phase networks, it incorporates instantaneous power failure handling with a 3 ms guarantee time to maintain operational continuity.
Key Features:
-
Dual-Axis Control: Manages two servo axes in CNC systems.
-
Alpha Series Amplifier: Designed for FANUC Alpha servo platforms.
-
200–230 VAC Input: Operates on 3-phase industrial power supply.
-
8.8A / 10A Output Ratings: Supports L-axis and M-axis configurations.
-
Built-In Dynamic Brake: Provides controlled stopping and deceleration.
-
50–60 Hz Operation: Compatible with standard power frequencies.
-
3 ms Power Failure Handling: Supports rapid recovery from brief outages.
-
Voltage Tolerance Range: Accepts -15% to +10% supply variation.
The A06B-6089-H207 delivers the reliability and precision required for CNC dual-axis servo drive and motion control applications.
