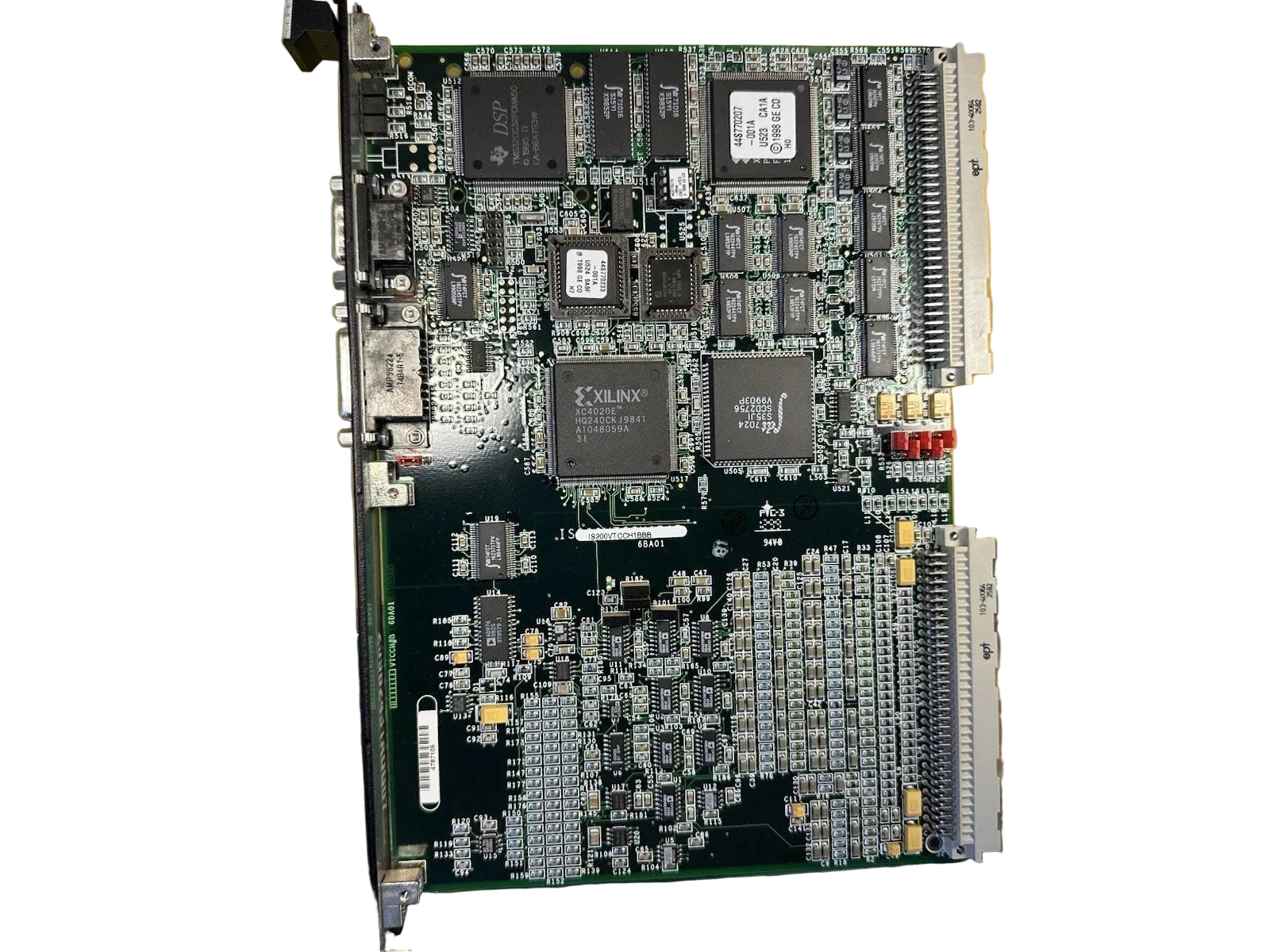

IS200VTCCH1B | Fanuc Thermocouple Input Board – 24 Channel PCB
- Regular price
- $13,999.00
- Sale price
- $13,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IS200VTCCH1B
Description
The Fanuc IS200VTCCH1B is a thermocouple input printed circuit board designed to process multi-channel temperature signals in industrial control systems. It supports up to 24 thermocouple inputs and accommodates millivolt signals within a defined measurement range. The board enables accurate temperature data acquisition for integration into compatible automation and monitoring platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fanuc |
| Category | Industrial Automation |
| Part Number | IS200VTCCH1B |
| Subcategory | Input/Output Modules |
| Board Type | Thermocouple Input PCB |
| Maximum Thermocouple Inputs | 24 Channels |
| Supported Thermocouple Types | E, J, K, S, T |
| Unsupported Thermocouple Types | B, N, R |
| mV Input Span | –8 mV to +45 mV |
| Terminal Board Compatibility | DTTC, TBTC |
| Signal Type | Low-Level Analog (Thermocouple & mV) |
| Installation Type | Control Rack Mounted |
| Application | Industrial Temperature Monitoring |
| Channel Interface | Multi-Channel Terminal Input |
| Weight | 2 lb (0.9 kg) |
Information About IS200VTCCH1B
The IS200VTCCH1B is a thermocouple input PCB engineered for use in industrial automation systems requiring precise temperature monitoring. It interfaces with external terminal boards, typically DTTC or TBTC, to accept field wiring from multiple thermocouples. The board supports E, J, K, S, and T thermocouple types, as well as millivolt inputs spanning –8 mV to +45 mV, ensuring flexibility in sensing applications. Designed for control rack installation, it conditions low-level analog signals for reliable processing by the host control system.
Key Features:
- 24-Channel Thermocouple Capacity: Accepts up to 24 thermocouple inputs via compatible terminal boards.
- Supported Thermocouple Types: Compatible with E, J, K, S, and T thermocouples.
- Defined mV Input Range: Processes signals from –8 mV to +45 mV.
- Terminal Board Interface: Connects through DTTC or TBTC terminal boards for structured wiring.
- Analog Signal Conditioning: Converts low-level temperature signals for control system use.
- Industrial PCB Construction: Built for installation within automation control racks.
- Selective Type Compatibility: Does not support B, N, or R thermocouple types.
- Multi-Input Monitoring: Enables centralized temperature data acquisition across multiple channels.
The IS200VTCCH1B delivers the reliability and precision required for multi-channel temperature monitoring in industrial automation systems.
