Faraday 8703 Dual Input Addressable Contact Monitor Module
- Regular price
- $837.00
- Sale price
- $837.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8703
Description

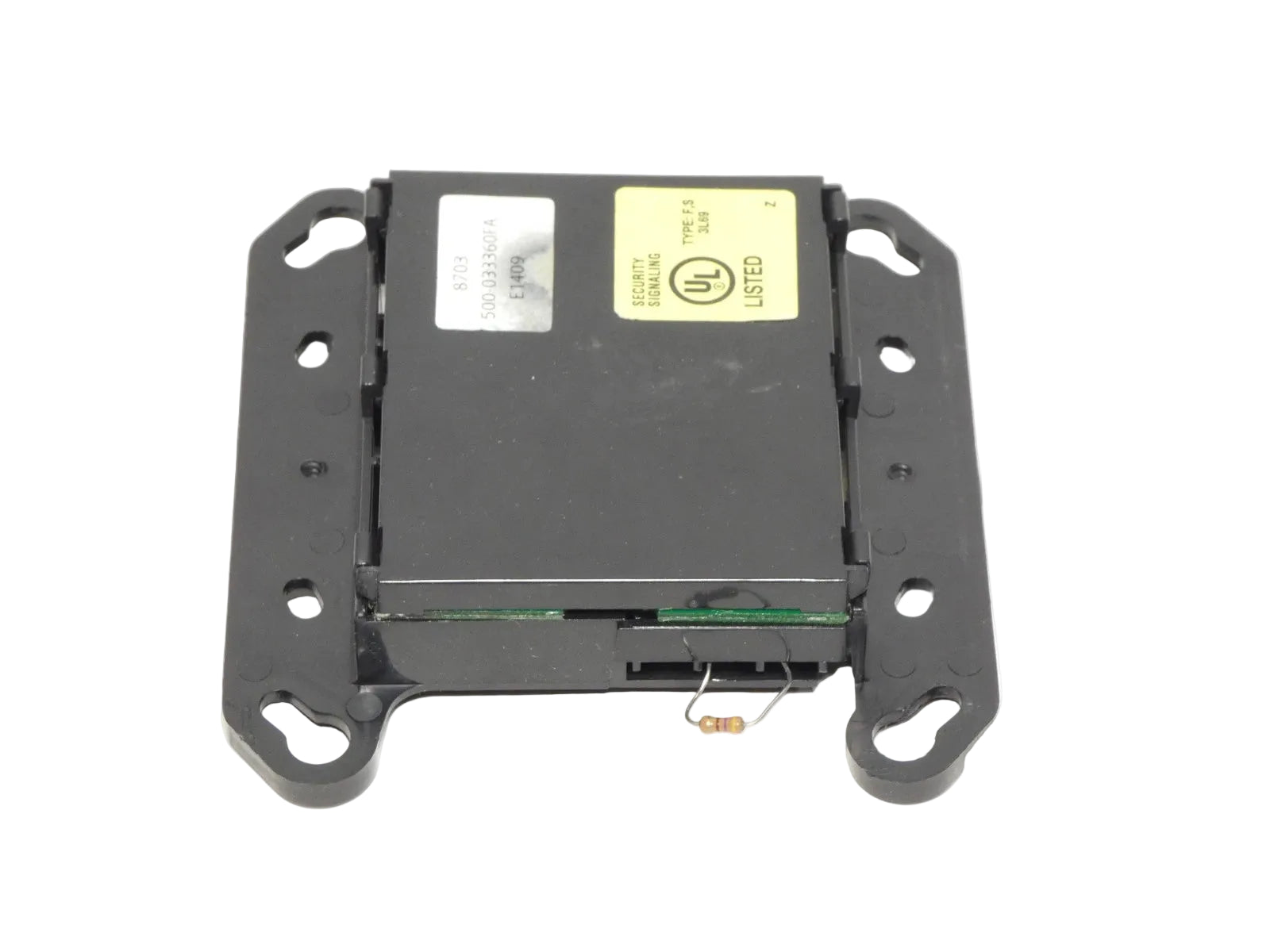

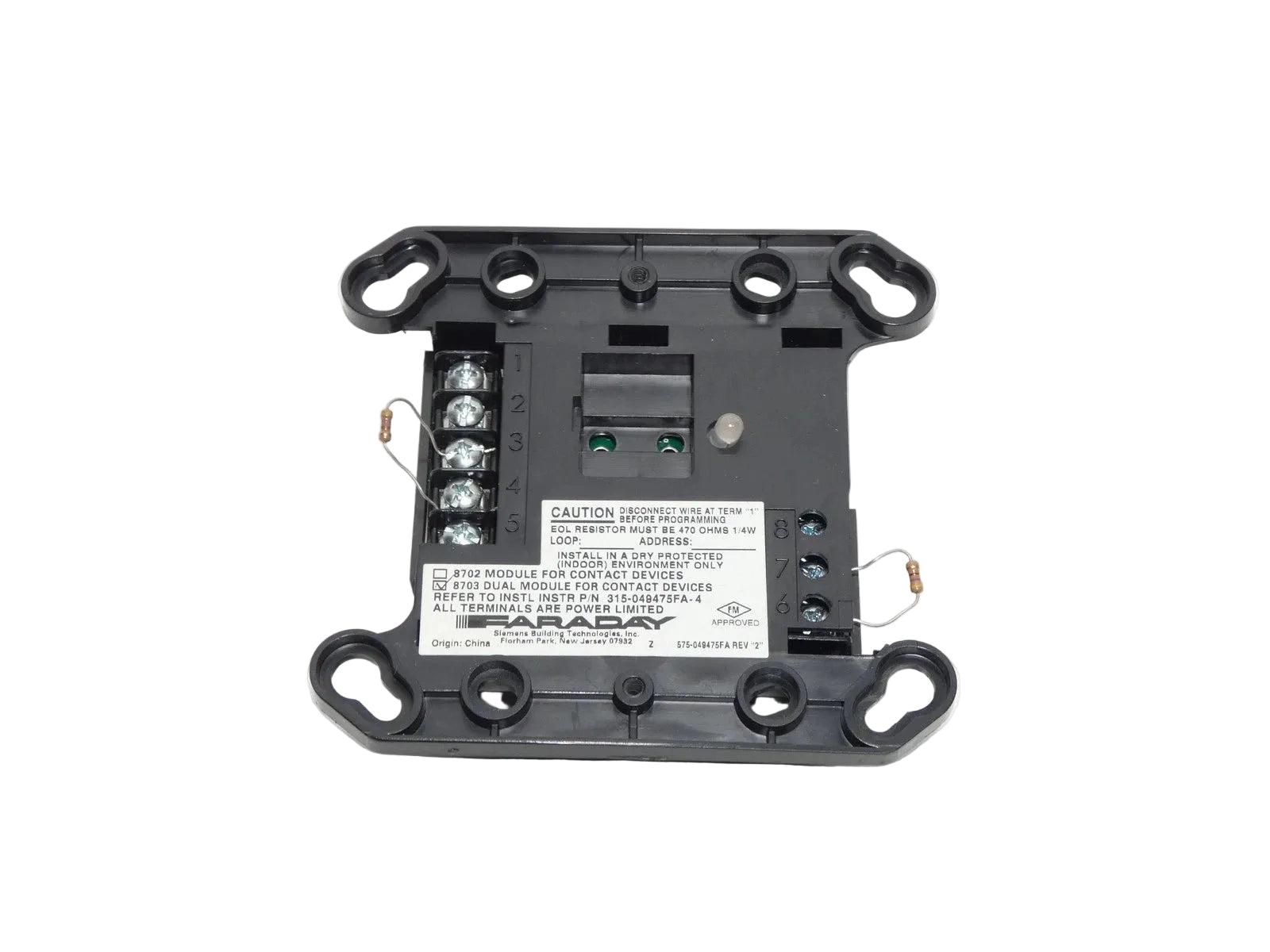

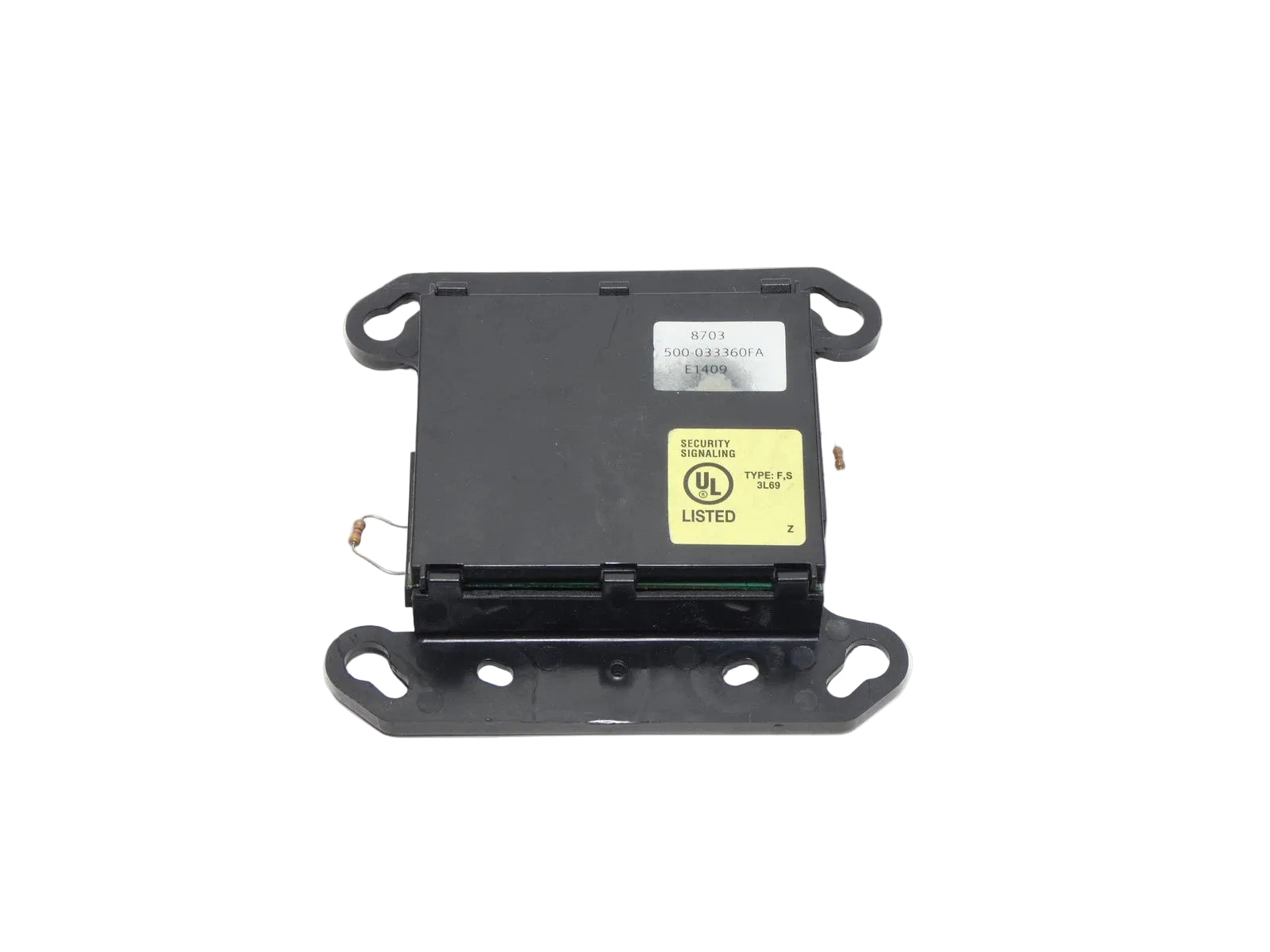

The Faraday 8703 is an addressable dual input module designed to interface contact devices with the addressable device circuit of a compatible Faraday fire alarm control unit. It supervises and monitors two independent sets of dry contacts while providing multicolor LED indication for normal, trouble, and alarm conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Faraday |
| Category | Fire Alarm Systems |
| Part Number | 8703 |
| Subcategory | Addressable Monitor Modules |
| Product Type | Dual Module for Contact Devices |
| Module Type | Addressable Interface Module |
| Number of Inputs | 2 |
| Input Type | Dry Contact |
| Monitoring Function | Supervised Dual Contact Monitoring |
| Status Indicator | Multicolor LED |
| LED Normal Status | Green |
| LED Trouble Status | Yellow |
| LED Alarm Status | Red |
| Programming Device | Faraday 8720 Programmer/Tester |
| Mounting | Double-Gang or 4-Inch Square Box |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | Up to 93%, Noncondensing |
| Weight | 1 lb (0.45 kg) |
Information About 8703
The 8703 is a Faraday 8700 Series addressable interface module designed specifically for dual contact-monitoring applications. Its two input circuits supervise separate sets of dry contacts and communicate their status through the fire alarm system's addressable device circuit. The module incorporates a multicolor status LED that displays green during normal operation, yellow for trouble, and red for alarm. It can be programmed using the Faraday 8720 Programmer/Tester and mounts in a user-supplied double-gang or 4-inch electrical box.
Key Features:
- Dual Input Monitoring: Supervises and monitors two separate sets of dry contacts.
- Addressable Interface: Connects contact devices to the addressable device circuit of a compatible fire alarm control unit.
- Multicolor Status LED: Provides green normal, yellow trouble, and red alarm indication.
- Device Address Programming: Supports individual address configuration using the Faraday 8720 Programmer/Tester.
- Supervised Inputs: Monitors connected contact circuits for operational status and fault conditions.
- Standard Box Mounting: Installs in a double-gang or 4-inch square electrical box.
- 5-Inch Faceplate: Manufacturer documentation specifies an off-white 5-inch square faceplate with the module.
- Fire Alarm Integration: Listed as a compatible X1 dual contact device module for Faraday MPC-6000 and MPC-7000 systems.
The 8703 delivers the reliability and precision required for dual contact monitoring in addressable fire alarm system applications.
