FB107 | Emerson FloBoss 107 LCD Touchpad
- Regular price
- $1,387.00
- Sale price
- $1,387.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FB107
Description

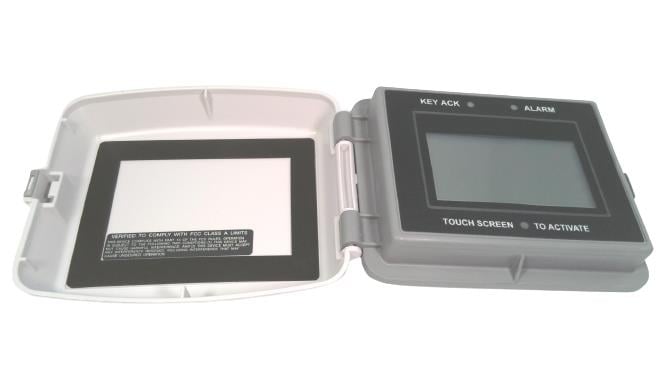

The Emerson FloBoss 107 LCD Touchpad FB107 is a versatile and user-friendly interface for monitoring and controlling FloBoss devices. It features an 8-line by 21-character display for clear communication and provides a reliable touch interface for ease of operation in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Emerson |
| Category | HMI (Human Machine Interfaces) |
| Part Number |
FB107 |
| Subcategory | HMI Operator Interfaces |
| Touchpad | 128 x 64 pixel, backlit, liquid crystal display |
| LEDs | Red LED Displays alarm or integrity alerts Green LED Displays positive key press indication |
| Communications | Connects to the FB107’s Display port, maximum cable length of 15 m (50 ft) |
| Normal Idle Mode | 120 mW |
| Low Power Mode | 42 mW |
| Input Voltage | 8 to 30 Vdc |
| Operating Temperature | -20 to 70 °C (-4 to 158 °F) |
| Operating Humidity | 0 to 95% relative humidity, non-condensing |
| Dimensions | 111 mm H x 140 mm W x 25 mm D (4.38 in. H x 5.5 in. W x 1.0 in. D) |
| Weight | 0.23 kg (0.51 lbs) |
Information About FB107
The FloBoss 107 LCD Touchpad (FB107) was designed to be used in conjunction with Emerson's FloBoss devices for single or multi-run applications. It features an 8-line by 21-character display, allowing for clear and easy-to-read information in a compact form. The device operates within a voltage range of 8 to 30 V DC and has two power modes: normal idle mode (120 mW) and low power mode (42 mW) for energy efficiency. The FloBoss 107 is capable of withstanding a wide operating temperature range from -20 to 70 °C (-4 to 158 °F), ensuring reliable performance in diverse environments.
Key Features:
- 8-Line by 21-Character LCD Display: Provides clear, detailed information with ample space for displaying critical data.
- Single or Multi-Run Capability: Suitable for various monitoring and control applications, whether single-run or multi-run configurations are needed.
- Low Power Consumption: Operates with low power consumption (120 mW in normal mode, 42 mW in low power mode), ensuring energy efficiency.
- Wide Voltage Range: Operates with an input voltage range of 8 to 30 V DC, offering flexible installation options.
- Temperature Range: Built to function in a wide operating temperature range from -20 to 70 °C (-4 to 158 °F), making it suitable for harsh environments.
Although discontinued by the manufacturer, the FloBoss 107 LCD Touchpad remains a durable and efficient interface solution for industrial control systems. Its clear display, low power consumption, and wide operating temperature range ensure reliable performance in diverse applications.
