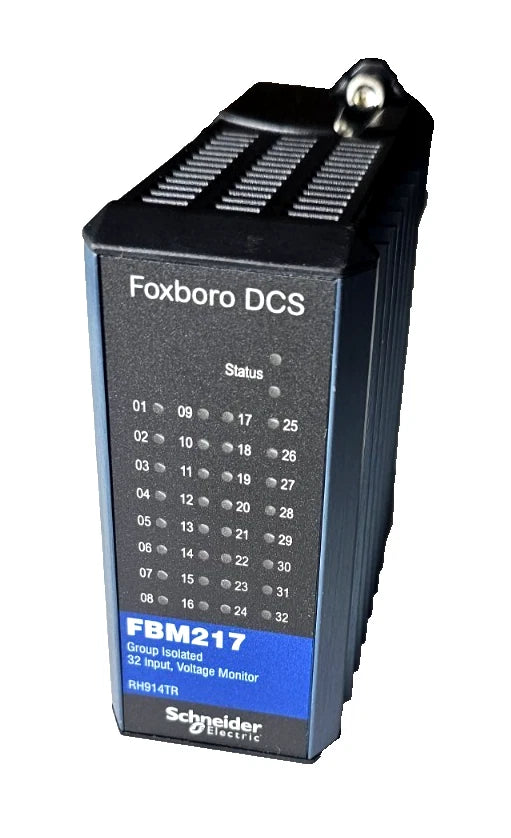

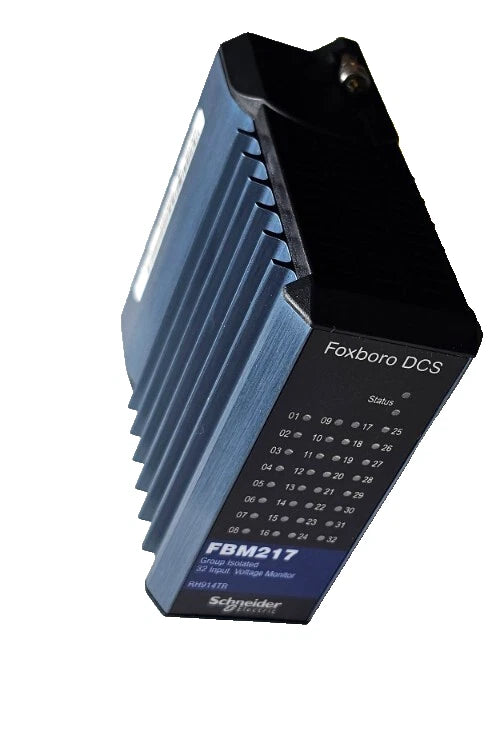

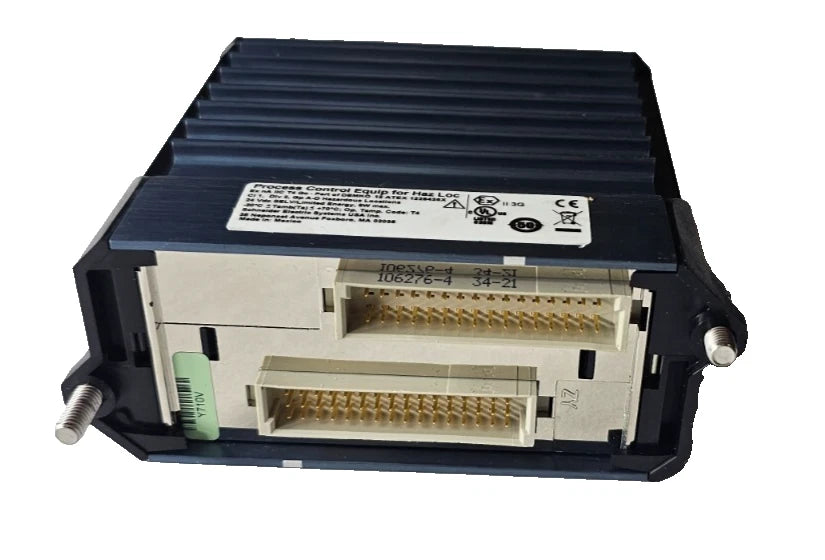

FBM217 | Foxboro Discrete Input Module
- Regular price
- $744.00
- Sale price
- $744.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FBM217
Description
The FBM217 is a discrete input module used in industrial automation systems for capturing and processing digital signals. It supports up to 32 discrete inputs at various voltage levels and is designed for use in harsh environments. The module is compatible with redundancy setups and supports advanced control functions like Sequence of Events (SOE) logging and ladder logic execution.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Foxboro |
| Category |
Transmission Distribution Relays
|
| Part Number | FBM217 |
| Subcategory | Voltage/Phase Monitor |
| Input Channels | 32 discrete inputs |
| Supported Input Voltages | 15–60 VDC, 120 VAC/125 VDC, 240 VAC |
| Input Type | Digital (discrete) |
| Environmental Class | G3 (Harsh Industrial) |
| Communication Protocol | 2 Mbps Fieldbus (dual path support) |
| Redundancy | Supported with adjacent module pairing |
| Mounting Type | DIN rail baseplate |
| Dimensions (H x W x D) | 102 x 45 x 104 mm |
| Visual Indicators | Red/green LEDs per channel |
| Programming Functions | Ladder logic, pulse count, SOE |
| Hot-Swappable | Yes |
| Sequence of Events | Supported with optional GPS sync |
| Protection Rating | Suitable for Class G3 installations |
| Weight | 0.63 lbs (approx. 284 g) |
Information About FBM217
The FBM217 is a high-density digital input module from Foxboro’s Fieldbus I/O series, supporting up to 32 input channels. It is built to withstand Class G3 environmental conditions and includes visual indicators for each input. Designed for use within modular DIN-rail baseplates, the module supports both single and redundant configurations without the need to disconnect field wiring during replacement. It operates within Foxboro DCS architectures and integrates smoothly with software like System Manager and Control Core Services.
Key Features:
- 32 Input Channels: Supports up to 32 discrete signals across multiple voltage ranges including 15–60 VDC, 120/125 VDC, and 240 VAC.
- Redundant Module Support: Easily configured for redundancy with adjacent module pairing and adapter connectors.
- SOE and Logic Capabilities: Executes ladder logic, pulse count, and event sequence recording with configurable input filter and fail-safe options.
- High Environmental Tolerance: Suitable for G3-level enclosures, with protection against harsh industrial conditions.
- Hot-Swappable Design: Allows module replacement without disconnecting power or communication lines.
- Integrated Status LEDs: Red and green LEDs indicate power and signal activity for visual diagnostics.
- Fieldbus Communication: Compatible with 2 Mbps Fieldbus networks, automatically switching paths if failure occurs.
- Mounting Flexibility: Installs on modular DIN-rail baseplates supporting up to eight FBM units.
The FBM217 delivers the reliability and precision required for high-density digital signal acquisition in demanding control systems.
