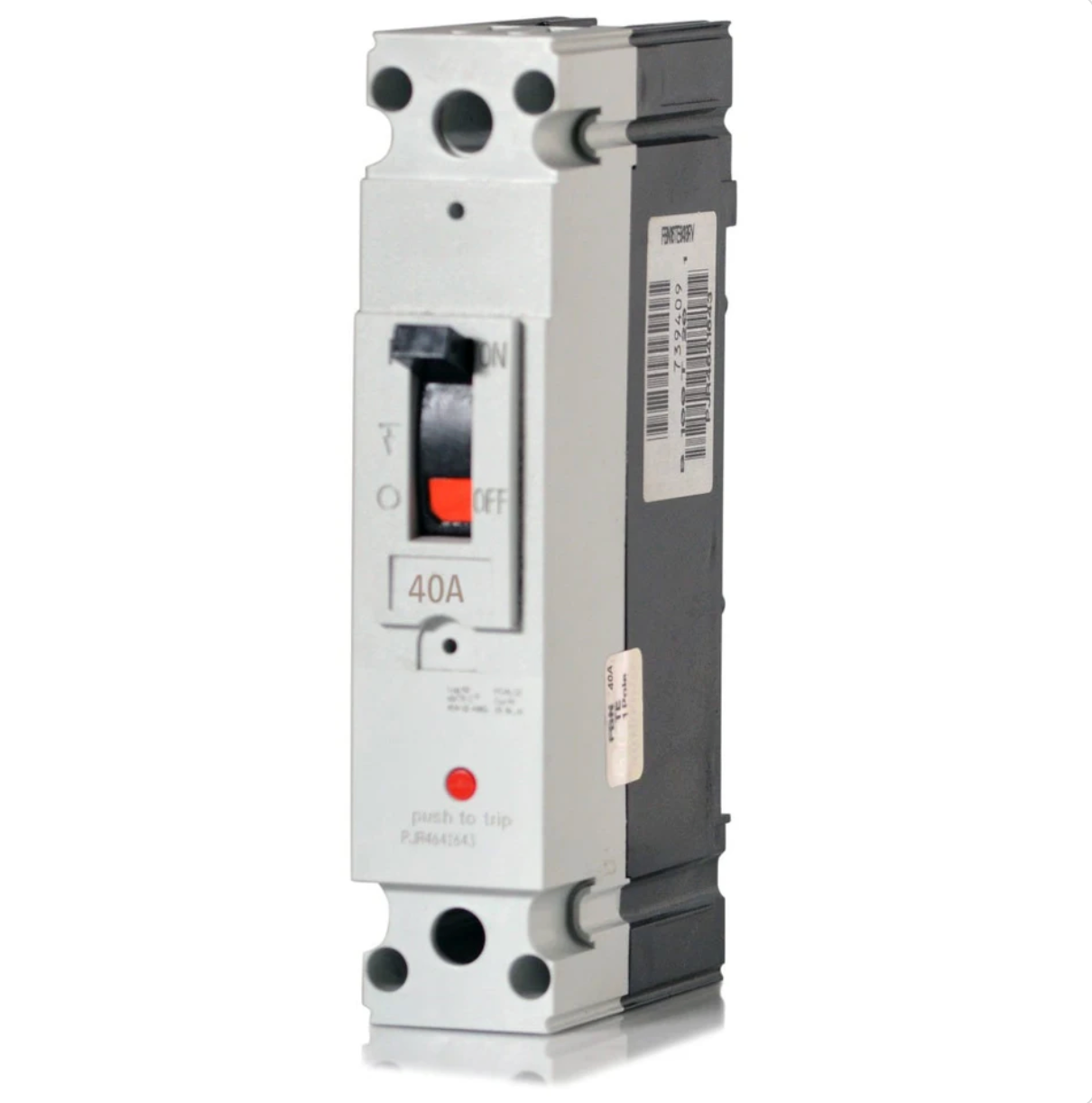

FBN16TE040RV | GE 1-Pole 40A 600V Bolt-On Molded Case Circuit Breaker
- Regular price
- $532.00
- Sale price
- $532.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FBN16TE040RV
Description
The General Electric FBN16TE040RV is a 1-pole, 40-amp, 600V thermal magnetic molded case circuit breaker designed for industrial and commercial electrical protection. It features a 65kA interrupting rating at 480V, providing reliable interruption of high fault currents. The FBN16TE040RV uses a bolt-on mounting style and includes long-time and instantaneous trip functions to safeguard circuits against overload and short-circuit conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | FBN16TE040RV |
| Subcategory | Molded Case |
| Series | FB100 |
| Type | HBLF2 / Record Plus½ |
| Voltage Rating | 600 V AC |
| Amperage Rating | 40 A |
| Poles | 1 |
| Phase | 1 |
| Interrupting Capacity | 65kA @ 480V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Mounting Type | Bolt-On |
| Frame Type | FB |
| Terminal Connection | Load Side Lug |
| Operating Temperature | -13–158 °F (-25–70 °C) |
| Standards | UL, CSA, NOM, IEC |
| Weight | 2.615 lb |
Information About FBN16TE040RV
The FBN16TE040RV is part of GE’s FB100 Series, specifically designed for robust performance in industrial and commercial systems. Its construction incorporates double-break rotary contact structures and advanced ablative materials to improve interruption capabilities and reduce arc flash energy. The breaker is compatible with standard panelboards and AD-type GE panels, featuring bolt-on load and line connections for secure installation. Certified to UL, CSA, NOM, and IEC standards, it ensures compliance with international safety requirements while offering consistent, high-performance protection.
Key Features:
- Current Rating: 40 Amps – Supports moderate to high-load circuits in commercial and industrial applications.
- Voltage Rating: 600V AC – Designed for single-phase 600V electrical systems.
- Interrupting Capacity: 65kA – Safely interrupts short-circuit currents at 480V.
- Protection Type: Thermal Magnetic – Provides responsive overload and short-circuit protection.
- Trip Functions: Long-Time and Instantaneous – Ensures precise protection for branch circuits.
- Mounting Type: Bolt-On – Securely mounts to compatible panelboards.
- Frame Type: FB – Compatible with standard internal accessories and panel configurations.
- Standards: UL, CSA, NOM, IEC – Meets recognized international safety and performance requirements.
The FBN16TE040RV delivers the reliability and precision required for industrial and commercial circuit protection applications.
