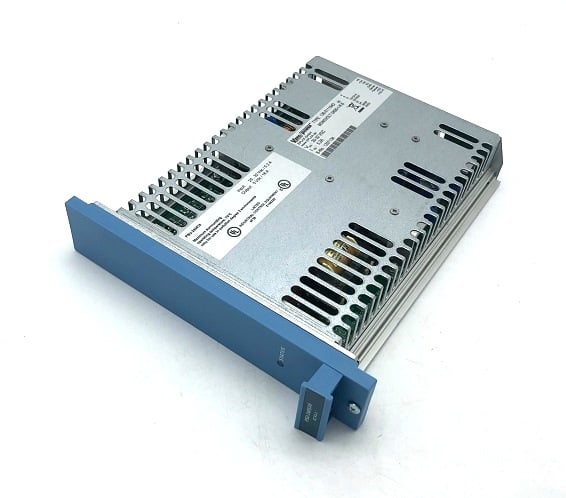

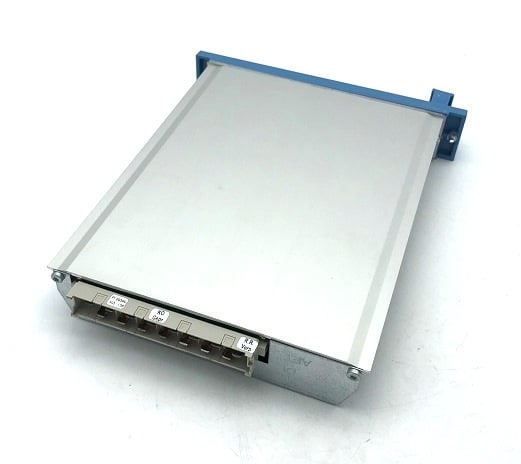

FC-PSU-240516 | Honeywell Vero Power Supply Module
- Regular price
- $1,847.00
- Sale price
- $1,847.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FC-PSU-240516
Description
The Honeywell FC-PSU-240516 is an industrial power supply module engineered to deliver stable 5VDC output at high current levels. Designed for control systems and PLC environments, it supports 20–32VDC input and offers reliable operation in demanding temperature and environmental conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
PLCs/Machine Control
|
| Part Number | FC-PSU-240516 |
| Subcategory | PLC Module/Rack |
| Product Type | Vero Power Supply Module |
| Input Voltage Range | 20–32 VDC |
| Output Voltage | 5 VDC |
| Output Current | 16 A |
| Input Current | 5.2 A |
| Inrush Current | 20 A |
| Mounting Style | Bracket Mount |
| Installation Area | Indoor |
| Environment Compatibility | Pollution Degree 2 |
| Operating Temperature | –55°C to +70°C (–67°F to +158°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Dimensions (L x W x H) | 21.1 x 3.52 x 17.6 cm |
| Weight | 1.08 kg (approx. 2.38 lbs) |
Information About FC-PSU-240516
The FC-PSU-240516 is a Honeywell power module for use in PLC racks and control platforms, providing a 5 VDC regulated output at up to 16 amps. It accepts a wide input voltage range of 20–32 VDC and operates in environments with ambient temperatures from –55°C to +70°C. This module is bracket-mountable and is intended for indoor installation, ideally within pollution degree 2 environments. With a compact form factor and high current capacity, it supports robust industrial applications where dependable low-voltage power is critical. The unit is fully compliant with industry certifications (E168320) and offers safe, long-term service.
Key Features:
- Wide DC Input Range: Operates from 20–32 VDC, compatible with various system power buses.
- High Output Current: Delivers 5 VDC at up to 16 A continuous for PLC and control applications.
- Compact Mounting: Bracket-mountable design allows flexible integration into control panels.
- Extreme Temperature Tolerance: Operates reliably from –55°C to +70°C ambient temperature.
- Low Inrush Current Design: Handles up to 20 A inrush with 5.2 A nominal input current.
- Indoor Application Ready: Designed for use in non-corrosive environments (pollution degree 2).
- Industrial Compliance: Meets electrical standards under listing E168320.
- Durable Construction: Built with industrial-grade materials for long service life.
- Lightweight Yet Rigid: Weighs approximately 1.08 kg with robust mechanical housing.
- Discontinued Model: Supported in legacy control systems as a reliable replacement unit.
The FC-PSU-240516 delivers stable 5VDC output and high-current performance in compact industrial automation environments.
Description
The Honeywell FC-PSU-240516 is an industrial power supply module engineered to deliver stable 5VDC output at high current levels. Designed for control systems and PLC environments, it supports 20–32VDC input and offers reliable operation in demanding temperature and environmental conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
PLCs/Machine Control
|
| Part Number | FC-PSU-240516 |
| Subcategory | PLC Module/Rack |
| Product Type | Vero Power Supply Module |
| Input Voltage Range | 20–32 VDC |
| Output Voltage | 5 VDC |
| Output Current | 16 A |
| Input Current | 5.2 A |
| Inrush Current | 20 A |
| Mounting Style | Bracket Mount |
| Installation Area | Indoor |
| Environment Compatibility | Pollution Degree 2 |
| Operating Temperature | –55°C to +70°C (–67°F to +158°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Dimensions (L x W x H) | 21.1 x 3.52 x 17.6 cm |
| Weight | 1.08 kg (approx. 2.38 lbs) |
Information About FC-PSU-240516
The FC-PSU-240516 is a Honeywell power module for use in PLC racks and control platforms, providing a 5 VDC regulated output at up to 16 amps. It accepts a wide input voltage range of 20–32 VDC and operates in environments with ambient temperatures from –55°C to +70°C. This module is bracket-mountable and is intended for indoor installation, ideally within pollution degree 2 environments. With a compact form factor and high current capacity, it supports robust industrial applications where dependable low-voltage power is critical. The unit is fully compliant with industry certifications (E168320) and offers safe, long-term service.
Key Features:
- Wide DC Input Range: Operates from 20–32 VDC, compatible with various system power buses.
- High Output Current: Delivers 5 VDC at up to 16 A continuous for PLC and control applications.
- Compact Mounting: Bracket-mountable design allows flexible integration into control panels.
- Extreme Temperature Tolerance: Operates reliably from –55°C to +70°C ambient temperature.
- Low Inrush Current Design: Handles up to 20 A inrush with 5.2 A nominal input current.
- Indoor Application Ready: Designed for use in non-corrosive environments (pollution degree 2).
- Industrial Compliance: Meets electrical standards under listing E168320.
- Durable Construction: Built with industrial-grade materials for long service life.
- Lightweight Yet Rigid: Weighs approximately 1.08 kg with robust mechanical housing.
- Discontinued Model: Supported in legacy control systems as a reliable replacement unit.
The FC-PSU-240516 delivers stable 5VDC output and high-current performance in compact industrial automation environments.
