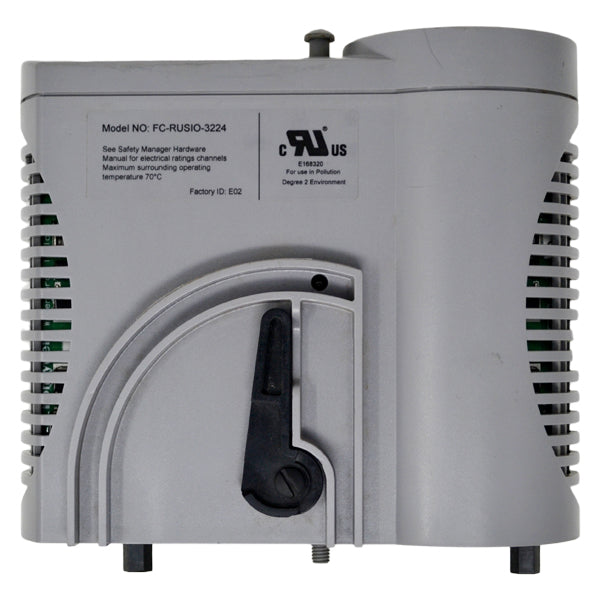

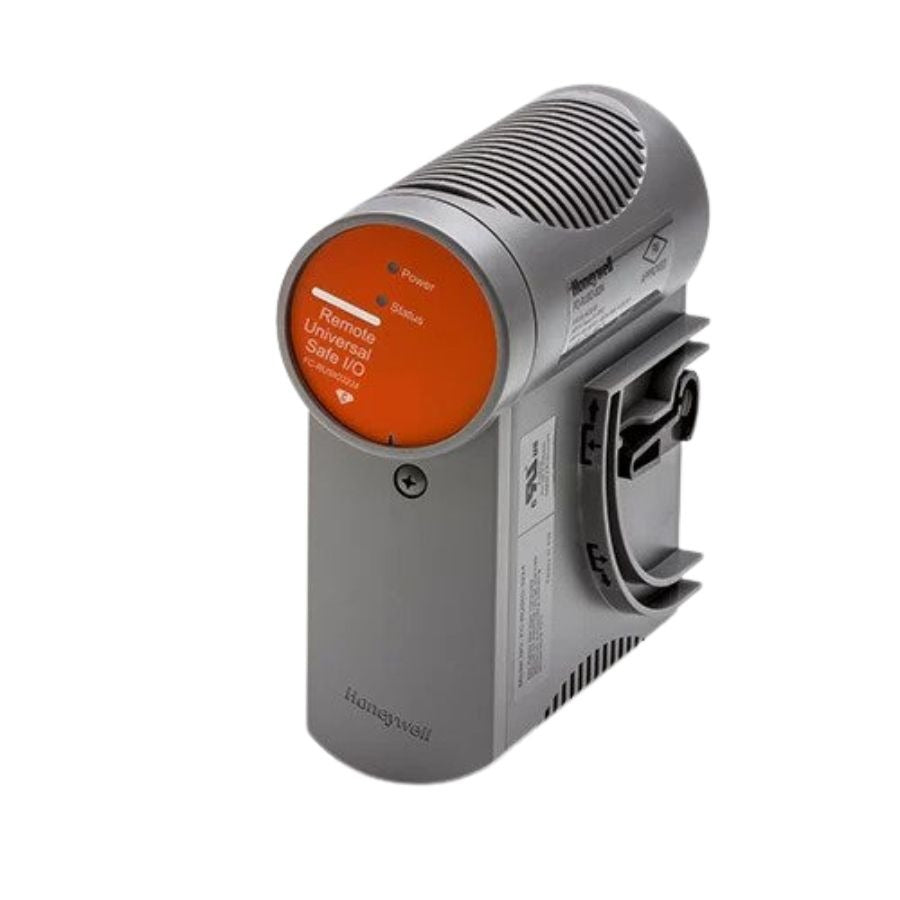

FC‑RUSIO‑3224 | Honeywell Remote Universal Safe I/O Module
- Regular price
- $5,549.00
- Sale price
- $5,549.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FC‑RUSIO‑3224
Description
The FC‑RUSIO‑3224 is a remote universal I/O module used in Honeywell's Safety Manager system. It offers flexible configuration for analog, digital, and HART signals while maintaining high safety integrity. The module is built for demanding industrial environments, ensuring accurate signal acquisition and functional safety.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Safety & Industrial Controllers
|
| Part Number | FC‑RUSIO‑3224 |
| Subcategory | Remote I/O Module |
| Product Type | Remote Universal Safe I/O Module |
| Number of Channels | Up to 32 configurable I/O |
| Signal Types Supported | Digital I/O, Analog Input, HART |
| Safety Certification | SIL 3 (IEC 61508), EN 62061, ISO 13849-1 Cat. 4 / PL e |
| Fieldbus | LONWORKS, transformer-isolated 78 kbps |
| Power Supply | 24 VDC, max. 300 mA |
| Environmental Rating | –40 °C to +70 °C, 10–95% RH |
| Mounting | Base-mounted, supports auxiliary terminal XS831 |
| Signal Conversion | Supports 0–20 mA to 0–10 VDC conversion via XS831 terminals |
| Isolation | Galvanic isolation between channels and system |
| Certifications | CE, ATEX, IECEx |
| Wiring Topology | Daisy chain, star, loop |
| Dimensions | ~100 × 100 × 60 mm |
| Weight | ~1.54 lbs (0.7 kg) |
Information About FC‑RUSIO‑3224
The FC‑RUSIO‑3224 is part of Honeywell’s remote safe I/O architecture, specifically designed for high-reliability process and safety applications. This module provides up to 32 individually configurable I/O channels and supports mixed-signal types. It is certified for use in hazardous environments (IECEx/ATEX) and integrates directly with Safety Manager via Fieldbus. The FC-RUSIO-3224 also supports HART communication and diagnostic feedback, offering real-time data visibility and safe-state performance.
Key Features:
- Universal Signal Support: Handles digital input/output, analog input, and HART communication on each configurable channel.
- Safety Integrity: Complies with SIL 3 (IEC 61508), enabling usage in critical safety loops.
- Environmental Protection: Suitable for harsh environments with wide operating temperatures and high humidity tolerance.
- Hazardous Area Certified: Approved for use in IECEx and ATEX classified zones.
- LONWORKS Bus Compatibility: Operates via transformer-isolated 78 kbps serial LONWORKS communication.
- Modular Design: Supports plug-in auxiliary terminals (XS831) for signal conversion and expansion.
- Flexible Topology: Can be wired in daisy chain, star, or loop configurations.
- Diagnostic Feedback: Provides onboard LED and bus-based diagnostics for fault detection.
The FC‑RUSIO‑3224 delivers the reliability and precision required for functional safety in distributed control systems.
