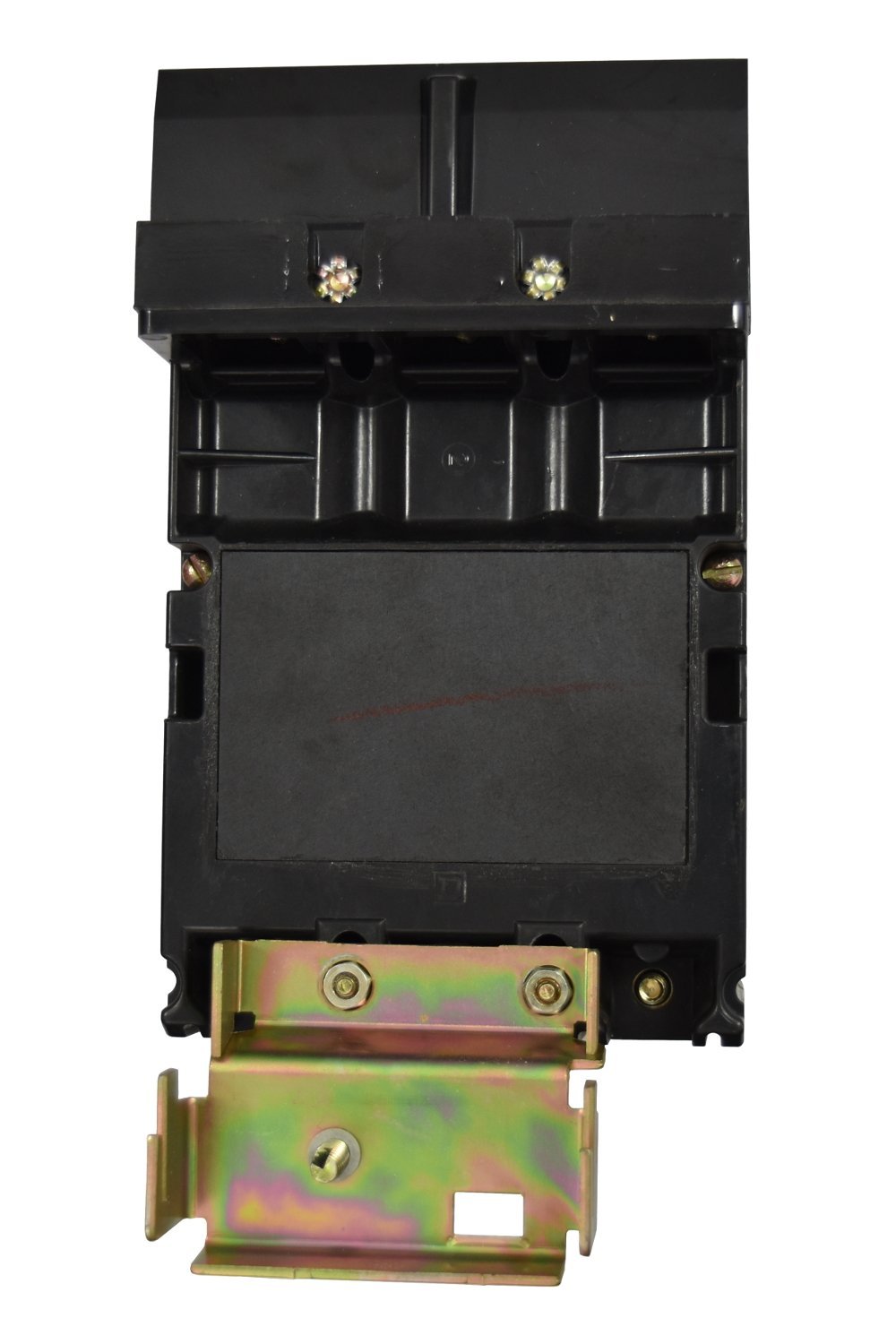

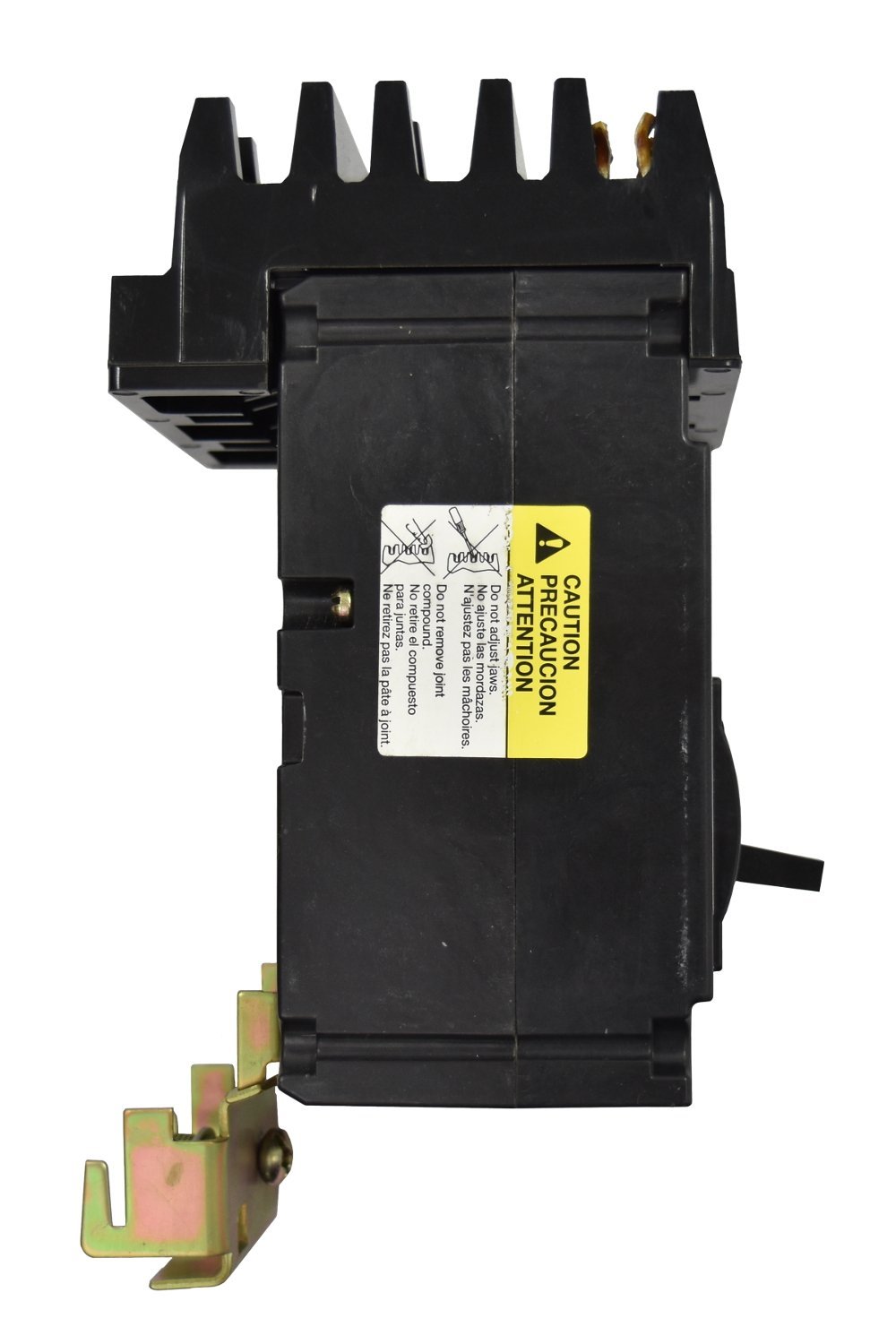

FC24070AC | Square D 70A 2-Pole 480V I-Line Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,655.00
- Sale price
- $1,655.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FC24070AC
Description
The Square D FC24070AC is a 2-pole thermal magnetic molded case circuit breaker engineered to protect electrical systems up to 480VAC with a 70-amp current rating. It features a 65kA interrupting capacity at 480V, ensuring dependable short-circuit and overload protection. Designed with an I-Line style plug-in connection, it offers quick installation and reliable performance for industrial and commercial power distribution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breakers |
| Part Number | FC24070AC |
| Subcategory | Molded Case Circuit Breakers |
| Series | FC |
| Frame Type | FC |
| Rated Current (In) | 70 A |
| Voltage Rating | 480 VAC |
| Interrupting Rating | 65 kA @ 480 V |
| Trip Unit Type | Thermal-Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Number of Poles | 2 |
| Connection Type | I-Line Style Plug-In |
| Mounting Type | I-Line Panelboard Mount |
| Temperature Rating | 40°C |
| Certifications | UL Listed, CSA Certified |
| Phase | Single Phase (AC) |
| Country of Origin | Mexico |
| Weight | 9.99 lbs (4.53 kg) |
Information About FC24070AC
The FC24070AC is part of the Square D FC Series, a line of molded case circuit breakers built for high-performance electrical protection in demanding environments. It combines thermal and magnetic trip technologies to provide both long-time and instantaneous response to overloads and short circuits. With its I-Line plug-in mounting system, it enables easy installation and secure connections in I-Line panelboards. Engineered for safety and reliability, the unit meets UL and CSA standards and is rated for operation in environments up to 40°C.
Key Features:
- Rated Current: Supports 70A continuous current for light to medium-duty applications.
- Voltage Capacity: Designed for 480VAC operation, compatible with commercial and industrial systems.
- Interrupting Rating: Offers 65kAIC@480V for high fault current protection.
- Trip Unit Type: Thermal-magnetic mechanism ensures precise overload and short-circuit response.
- I-Line Plug-In Connection: Enables fast installation and secure mechanical engagement in panelboards.
- Temperature Rating: Operates reliably at ambient temperatures up to 40°C.
- Certifications: UL Listed and CSA Approved for verified safety and performance.
- Durable Construction: Molded case enclosure provides mechanical strength and insulation reliability.
The FC24070AC delivers the reliability and precision required for safe, efficient, and high-performance circuit protection in industrial and commercial environments.
