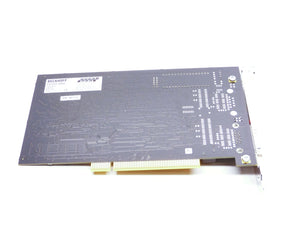

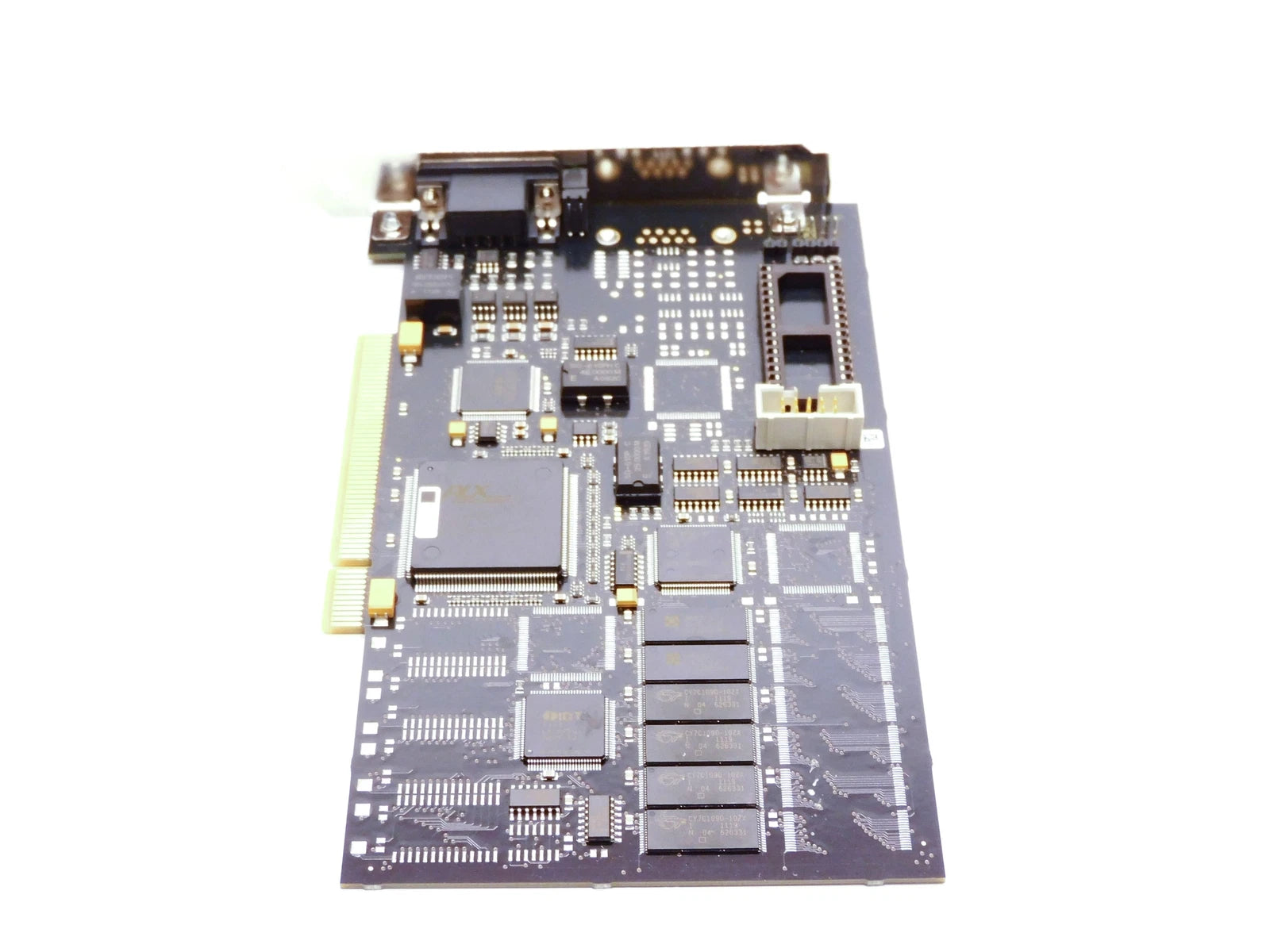

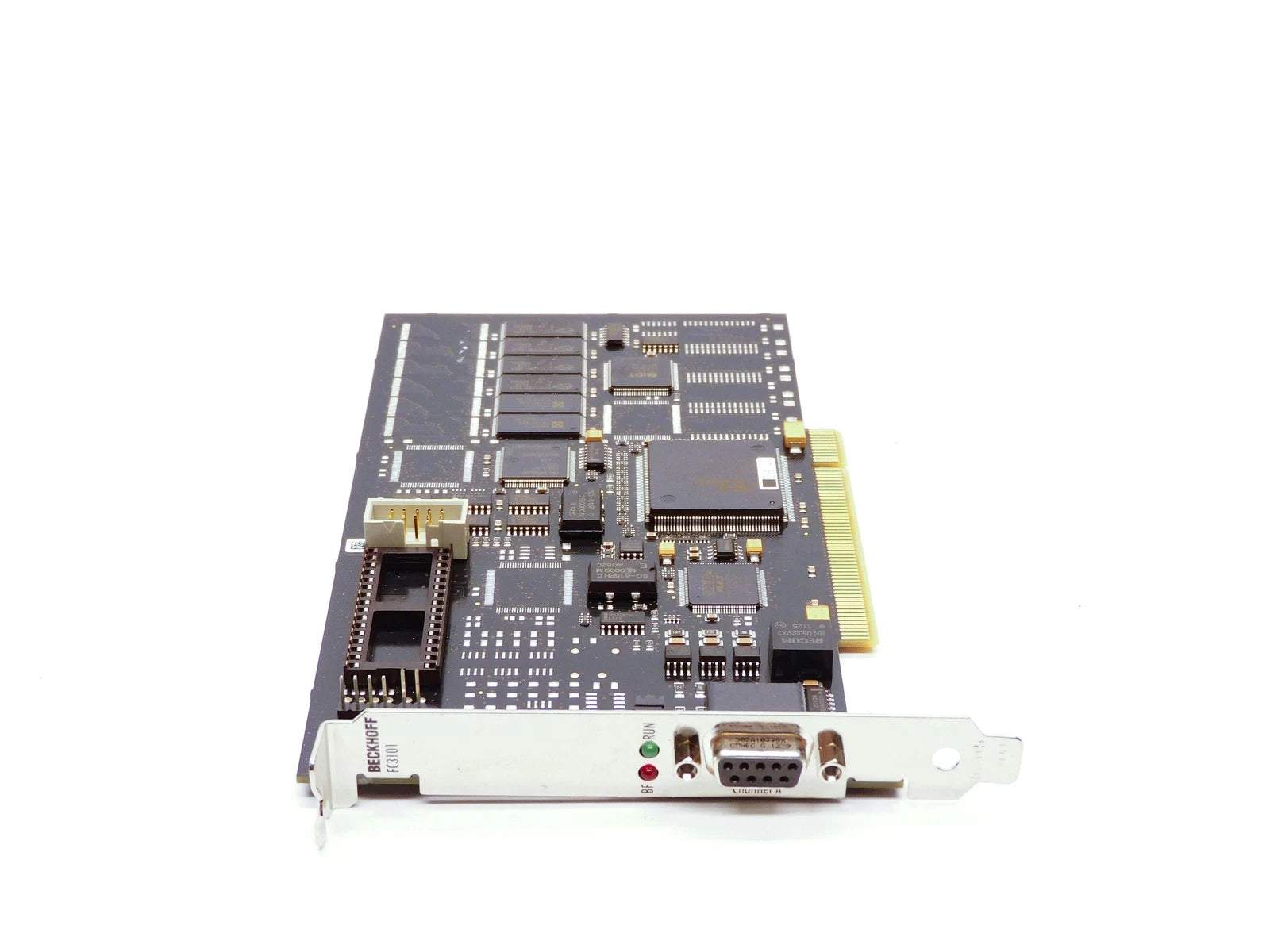

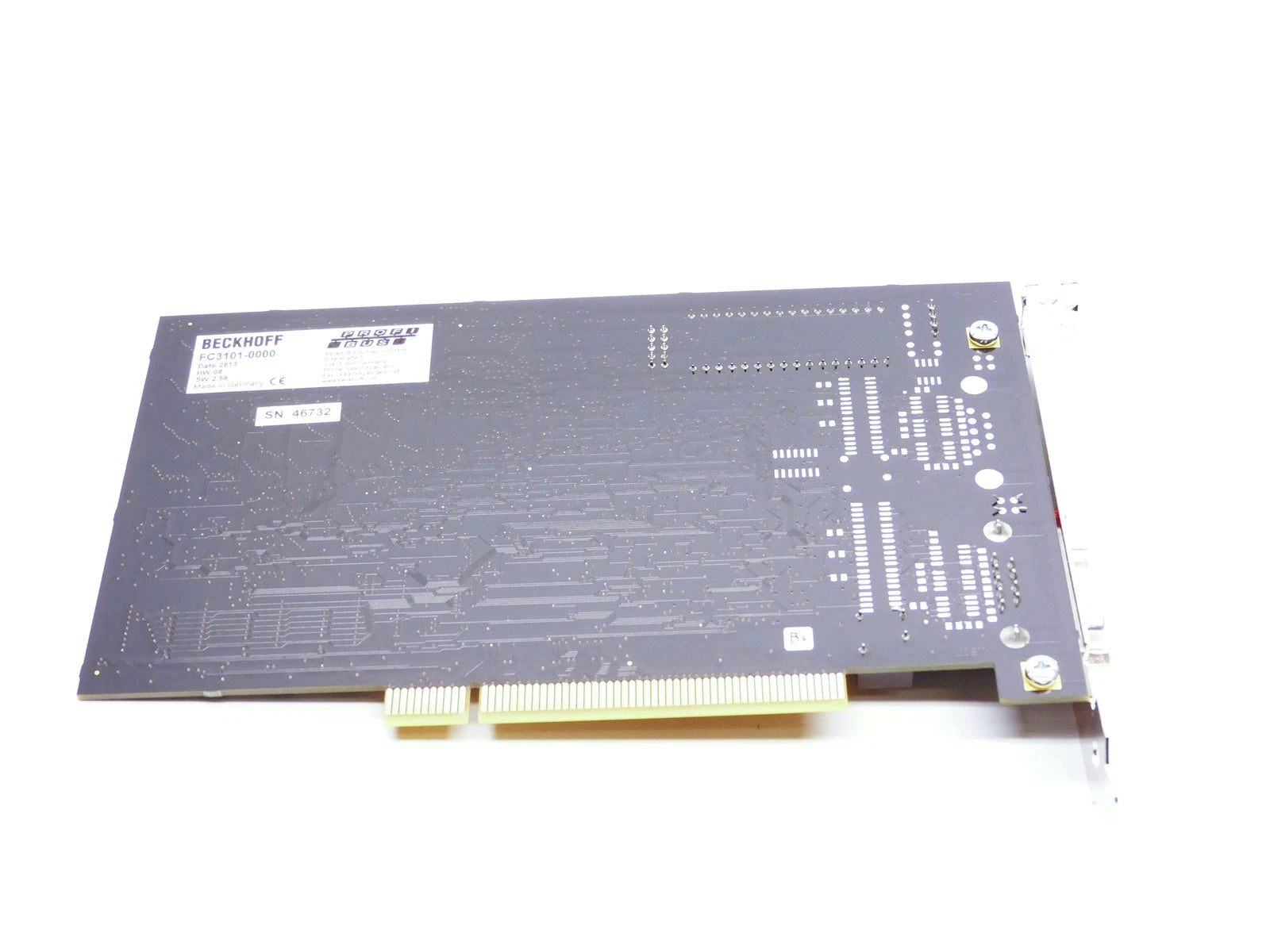

FC3101-0000 | Beckhoff PROFIBUS Master/Slave PCI Card 1 Channel 12 Mbit/s
- Regular price
- $478.00
- Sale price
- $478.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FC3101-0000
Description
The Beckhoff FC3101-0000 is a PROFIBUS master/slave card designed for PC-based control systems with a PCI™ interface. It supports a single fieldbus channel with data transfer rates up to 12 Mbit/s and includes diagnostic LEDs for reliable monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Fieldbus & Communication Interfaces |
| Part Number | FC3101-0000 |
| Subcategory | PROFIBUS Interface Cards |
| Fieldbus Standard | PROFIBUS DP, DP-V1 (Class 1+2), DP-V2, PROFIBUS MC |
| PC Interface | PCI™ |
| Number of Channels | 1 |
| Data Transfer Rates | 9.6 kbaud to 12 Mbaud |
| Bus Interface | 1 × D-sub socket, 9-pin, galvanically decoupled |
| Process Image Bit Width | Max. 3 kbyte input and output data per channel |
| NOVRAM | Optional, up to 32 kbytes |
| Hardware Diagnostics | 2 LEDs per channel |
| Cycle Time | Different DP cycle times possible using CDL concept |
| Dimensions (W × H × D) | Approx. 106 mm × 175 mm, single slot |
| Operating Temperature | 0…55 °C |
| Weight | 0.25 lbs |
Information About FC3101-0000
The FC3101-0000 is a PROFIBUS master and slave card from Beckhoff that allows seamless integration of PC-based control systems into PROFIBUS networks. Equipped with a PCI™ interface, it supports standard PROFIBUS DP as well as advanced profiles including DP-V1, DP-V2, and PROFIBUS MC for synchronized, equidistant communication. With one galvanically isolated channel and support for data transfer rates up to 12 Mbit/s, the card ensures fast and reliable communication in industrial environments. Hardware diagnostics are simplified with two dedicated LEDs per channel, while support for up to 3 kbytes of process data per direction makes it suitable for a wide range of automation tasks.
Key Features:
-
PROFIBUS Master and Slave Functionality: Supports both roles in PROFIBUS communication, enabling flexible integration in automation networks.
-
Single Channel Operation: Offers one galvanically isolated PROFIBUS channel with stable data exchange.
-
High-Speed Data Transfer: Handles transmission rates from 9.6 kbaud up to 12 Mbit/s, providing compatibility with diverse PROFIBUS devices.
-
Advanced PROFIBUS Standards: Supports DP, DP-V1 (Class 1+2 with acyclic services and alarms), DP-V2, and PROFIBUS MC for equidistant communication.
-
PCI™ Interface: Ensures straightforward installation in PC-based control systems using standard slots.
-
Process Data Capacity: Provides up to 3 kbytes of input and output data per channel for efficient communication handling.
-
Hardware Diagnostics with LEDs: Features 2 diagnostic LEDs per channel for real-time system status and troubleshooting.
-
Compact Single-Slot Design: Occupies minimal space with dimensions of 106 × 175 mm, making it easy to integrate into industrial PCs.
The FC3101-0000 delivers the reliability and precision required for PROFIBUS-based automation systems and PC-driven industrial communication.
