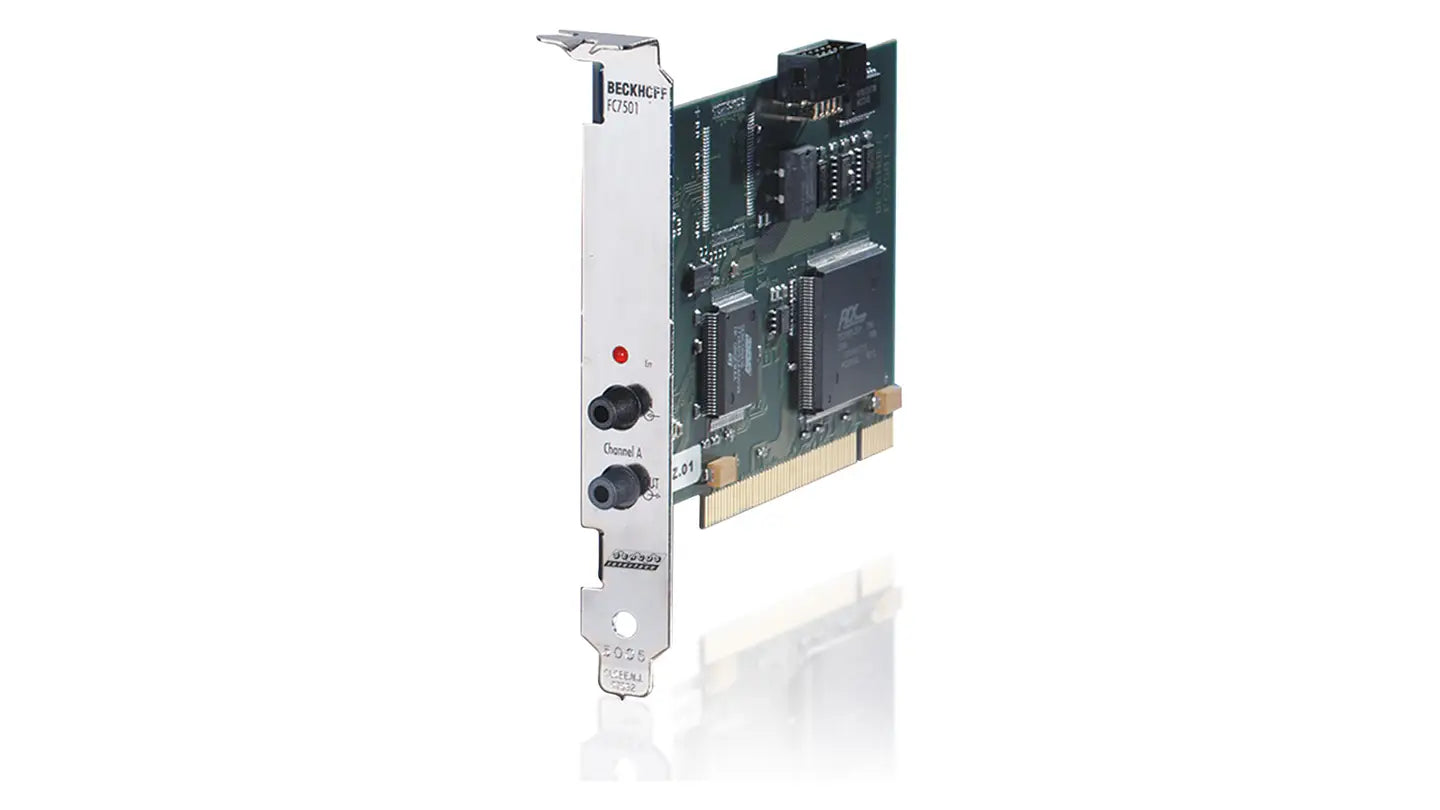

FC7501 | Beckhoff SERCOS II Master Card 1-Channel PCI Interface
FC7501 | Beckhoff SERCOS II Master Card 1-Channel PCI Interface
FC7501 | Beckhoff SERCOS II Master Card 1-Channel PCI Interface
    FC7501 | Beckhoff SERCOS II Master Card 1-Channel PCI Interface
FC7501 | Beckhoff SERCOS II Master Card 1-Channel PCI Interface

FC7501 | Beckhoff SERCOS II Master Card 1-Channel PCI Interface

Part #: FC7501 Manufactured by: Beckhoff
Regular price
$728.00
Sale price
$728.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The FC7501 is a Beckhoff PCI SERCOS II master card designed to provide fast, synchronized communication for automation sys...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: FC7501
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Beckhoff
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: FC7501

Description / Specifications

Description

The Beckhoff FC7501 is a SERCOS II master card with a PCI™ interface, providing one communication channel for real-time motion and I/O synchronization. Supporting data rates up to 16 Mbaud and cycle times down to 62.5 µs, it enables high-performance integration of drives and I/O devices in automation systems.





Technical Specifications

Condition New/Never Used Surplus
Brand Beckhoff
Category Interface Cards
Part Number FC7501
Subcategory SERCOS II Master Cards
Fieldbus SERCOS II
PC Interface PCI™
Number of Channels 1
Data Transfer Rates 2, 4, 8, 16 Mbaud
Bus Interface 2 x FSMA connectors (IEC 874-2)
Cycle Times Supported down to 62.5 µs
Synchronization Multiple cards via ribbon cable, sync with PC and TwinCAT
Supported Devices Up to 254 (axes, I/O modules, Bus Terminals with BK7500)
Diagnostics 1 LED per channel
Driver Support TwinCAT I/O and higher
Communication Synchronous process data transfer
Configuration Master mode parameterized by software
Dimensions (W x H) 95 mm x 120 mm, single slot
Operating Temperature 0…55 °C
Weight 1.3 kg (2.9 lbs)




Information About FC7501

The FC7501 is part of Beckhoff’s SERCOS II master card series, enabling high-performance communication between industrial PCs and SERCOS-based automation devices. It operates via a PCI™ interface, providing one channel for connecting up to 254 devices such as drives, I/O modules, or Bus Terminals. The card supports flexible data assignment and length, synchronous communication, and precise synchronization with TwinCAT, ensuring seamless motion control. Designed for demanding applications, the FC7501 offers cycle times as low as 62.5 µs, hardware diagnostics via channel LEDs, and robust configuration options through software.

Key Features:

  • SERCOS II Fieldbus Support: Provides high-speed communication for drives and automation devices using the SERCOS II standard.

  • Single PCI Channel: Offers one communication channel with two FSMA connectors for reliable fiber-optic connections.

  • High Data Rates: Supports transfer speeds of 2, 4, 8, and 16 Mbaud to meet diverse performance needs.

  • Fast Cycle Times: Capable of cycle times down to 62.5 µs, enabling precise and dynamic motion control.

  • Large Device Capacity: Connects up to 254 devices including drives, I/O terminals, and couplers within one network.

  • Synchronization Capabilities: Ensures exact timing between TwinCAT, the master card, and connected devices, with support for multiple synchronized cards.

  • Software Configuration: Master mode and communication parameters can be set directly through TwinCAT software.

  • Integrated Diagnostics: Channel LEDs provide hardware status and error feedback for easier troubleshooting.

  • Compact PCI Form Factor: Occupies a single slot, measuring 95 mm x 120 mm, for efficient PC integration.

  • Industrial Reliability: Operates in ambient temperatures from 0 to 55 °C with durable build quality.

The FC7501 delivers the reliability and precision required for real-time motion control and high-speed communication in PC-based automation.
