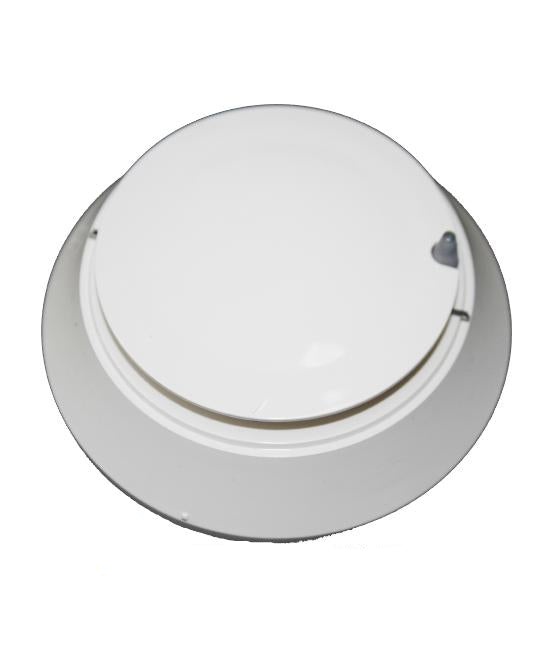

FCO-951-BP | Notifier Advanced Multi-Criteria Sensor with Photoelectric, Thermal, and CO Detection
- Regular price
- $1,834.00
- Sale price
- $1,834.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FCO-951-BP
Description
The Notifier FCO-951-BP Advanced Multi-Criteria Sensor is an intelligent addressable detector that combines multiple sensing technologies to provide fast and accurate fire detection. It integrates photoelectric, carbon monoxide, and thermal sensors to differentiate between real fire events and non-threatening conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Equipment |
| Part Number | FCO-951-BP |
| Subcategory | Multi-Criteria Sensor |
| Detection Method | Photoelectric, thermal, and carbon monoxide sensing |
| Communication Protocol | FlashScan® intelligent addressable |
| Operating Voltage Range | 15–32 VDC |
| Standby Current | 300 µA (average) |
| Alarm Current | 6.5 mA (LED on) |
| CO Sensing Range | Detects CO levels per UL 2075 standard |
| Operating Temperature Range | 32°F to 100°F (0°C to 38°C) |
| Humidity Range | Up to 95% RH, non-condensing |
| Mounting Base | B210LP or equivalent plug-in base |
| LED Indicators | Dual color (green for normal, red for alarm) |
| Housing Material | Flame-retardant plastic |
| Dimensions | 2.1" (5.3 cm) height × 6.1" (15.5 cm) diameter (with base) |
| Compliance | UL Listed; NFPA 72 compliant |
| Weight | 0.3 lb (0.14 kg) |
Information About FCO-951-BP
The FCO-951-BP is part of Notifier’s ONYX intelligent sensor line, engineered to enhance fire detection accuracy by using a multi-criteria approach. It continuously analyzes data from photoelectric, heat, and CO sensing elements through Notifier’s FlashScan® protocol, enabling early warning of both flaming and smoldering fires while minimizing false alarms. The detector communicates detailed status and environmental data to the fire alarm control panel for intelligent decision-making. With its low-profile design and plug-in base mounting, the FCO-951-BP offers ease of installation and superior detection performance across diverse applications such as commercial, healthcare, and industrial facilities.
Key Features:
- Multi-Criteria Detection: Combines photoelectric, heat, and CO sensing for comprehensive fire detection.
- Intelligent Addressable Communication: Operates on Notifier’s FlashScan® protocol for rapid and reliable data exchange.
- Advanced Algorithms: Distinguishes between true fire signatures and nuisance sources to reduce false alarms.
- Integrated CO Detection: Provides life-safety monitoring for carbon monoxide levels in addition to fire detection.
- Low-Profile Design: Compact housing enhances appearance and simplifies ceiling installation.
- Plug-In Mounting Base: Allows easy installation, replacement, and maintenance without rewiring.
- Visual Indicators: Dual-color LED for power, alarm, and fault status indication.
- UL/NFPA Certified: Fully compliant with life-safety and fire protection standards.
The FCO-951-BP delivers the reliability and precision required for intelligent, multi-criteria fire detection in advanced life-safety systems.
