FCPS-24FS8 | Honeywell Remote Charger Power Supply 120VAC
- Regular price
- $1,134.00
- Sale price
- $1,134.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FCPS-24FS8
Description
The Fire-Lite FCPS-24FS8 is a remote power supply and signal circuit expander designed for fire alarm and notification systems. It delivers 24 VDC regulated power to notification appliance circuits (NACs) and supports either Class A or Class B wiring configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Power Supplies
|
| Part Number | FCPS-24FS8 |
| Subcategory | Power Supply |
| Output Voltage | +24 VDC regulated and filtered |
| Total Output Current (NAC Mode) | 8.0 A maximum |
| Total Output Current (Stand-alone) | 6.0 A maximum |
| Max Output Per Circuit | 3.0 A |
| Number of Circuits | 4 (Class B) or 2 (Class A) |
| Trigger Input Voltage | 9 to 32 VDC |
| Trigger Current | 1.0–2.0 mA |
| Auxiliary Power Output | 500 mA maximum (special application) |
| Battery Support | Lead-acid, up to 18.0 AH (charger), 7.0 AH in cabinet |
| Battery Charger Output | 27.6 VDC float, 250 mA max charge current |

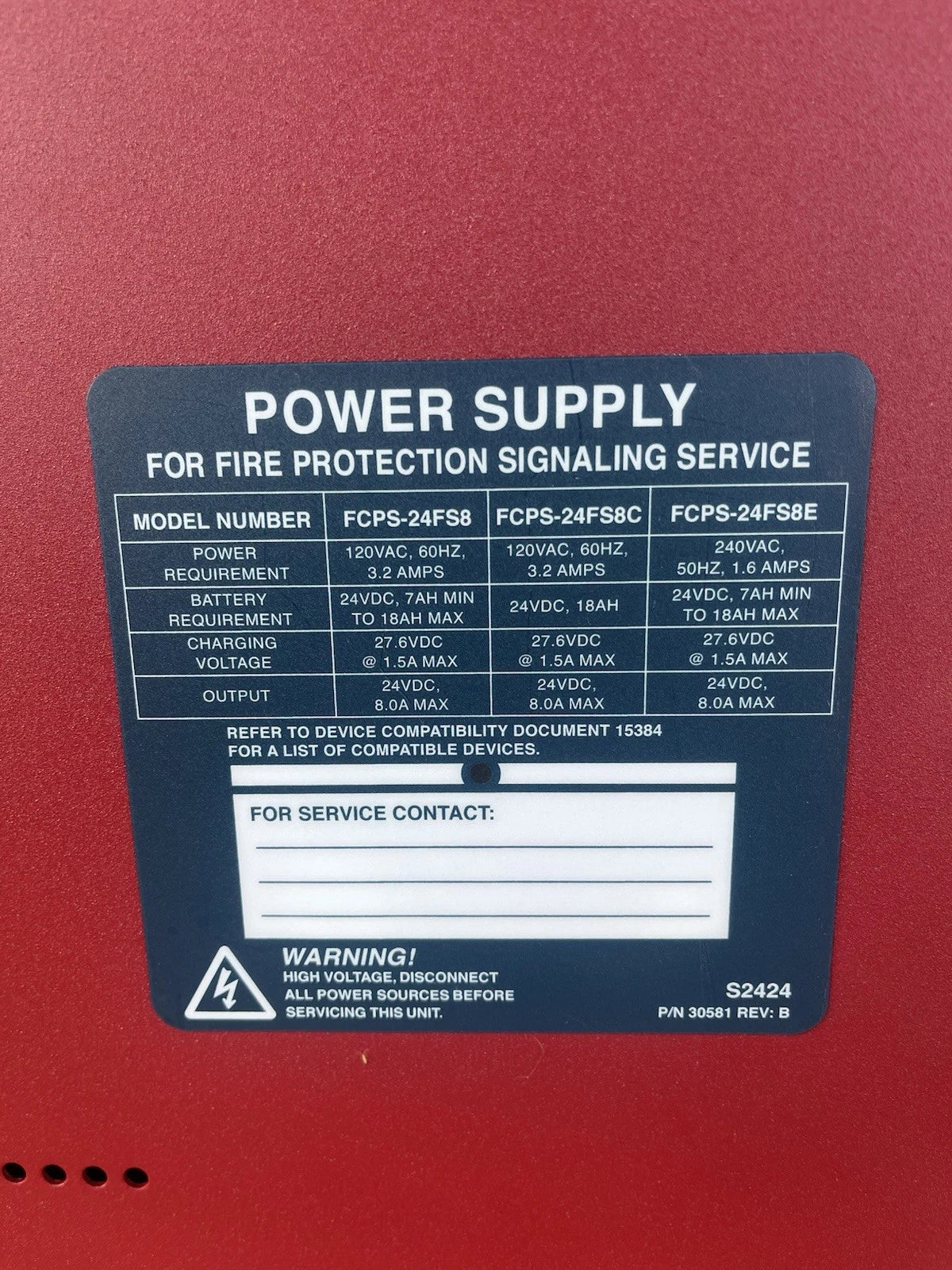

| Primary Power (120 VAC model) | 120 VAC, 60 Hz, 3.2 A max |
| Primary Power (240 VAC model) | 240 VAC, 50 Hz, 1.6 A max |
| Cabinet Dimensions (H x W x D) | 15 in x 14.5 in x 2.75 in (38.1 x 36.83 x 6.985 cm) |
| Supervision | Fully supervised power, battery, and circuits |
| Compatible Devices | Works with standard reverse-polarity NAC FACPs |
| Weight | 21.50 lbs (approx. 9.75 kg) |
Information About FCPS-24FS8
The FCPS-24FS8 is an 8-amp, UL-listed remote power supply manufactured by Fire-Lite, designed to operate in conjunction with 12 or 24 V fire alarm control panels (FACPs) or in a standalone configuration. It supports four NAC outputs, configurable as either two Class A or four Class B circuits, with flexible resettable/non-resettable power output settings. The system integrates regulated, filtered DC output with battery backup charging, and is ideal for powering strobes, horns, and system peripherals. With compatibility across industry-standard FACP protocols and appliances like System Sensor®, Wheelock®, and Gentex®, it ensures reliable and synchronized signaling in commercial fire protection systems.
Key Features:
- High Output Capacity: Provides 8 amps total output (up to 3A per circuit) in NAC expander mode.
- Dual Operation Modes: Functions as either a sync generator or follower for notification circuits.
- Flexible NAC Configuration: Supports 2 Class A, 4 Class B, or mixed resettable/non-resettable NAC outputs.
- Advanced Synchronization: UL-listed sync support for System Sensor®, Wheelock®, and Gentex® devices.
- Battery Backup Support: Includes integral charger supporting batteries up to 18 AH; cabinet holds 7 AH.
- Supervised Power Supply: Monitors NACs, AC power, battery status, and system troubles via Form-C relay.
- Earth Fault Detection: Selectable earth fault monitoring and AC trouble report delay (immediate or 2-hour).
- Versatile Inputs: Accepts trigger input from any compatible FACP using 9–32 VDC reverse-polarity signaling.

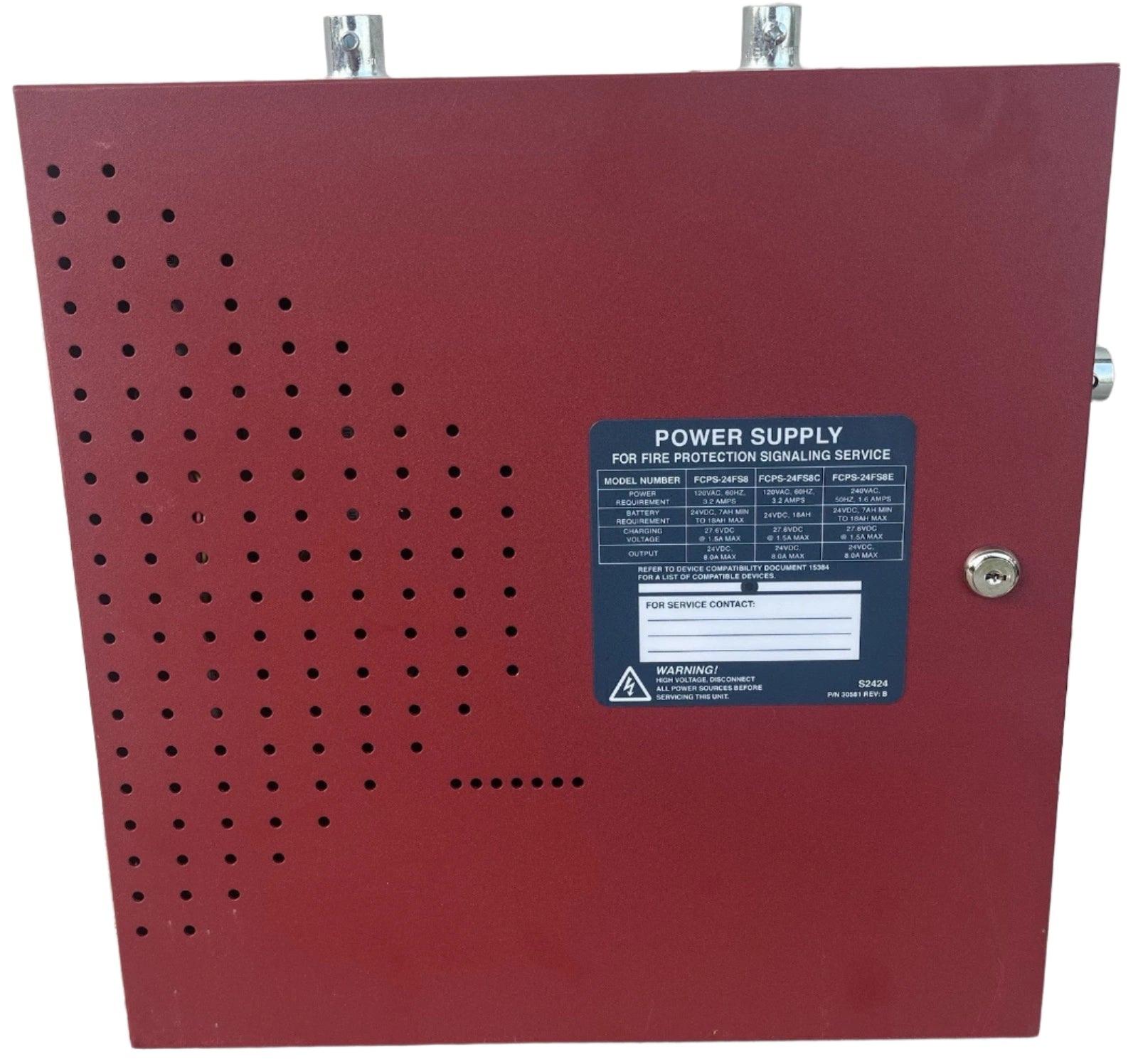

- Compact Locking Cabinet: Measures 15”H x 14.5”W x 2.75”D and includes fixed terminal blocks up to 12 AWG.
- UL Compliant Design: Meets UL 864 (NAC expander) and UL 1481 (stand-alone) requirements.
The FCPS-24FS8 delivers the robust, regulated power and compatibility required for commercial-grade fire alarm and notification systems.
