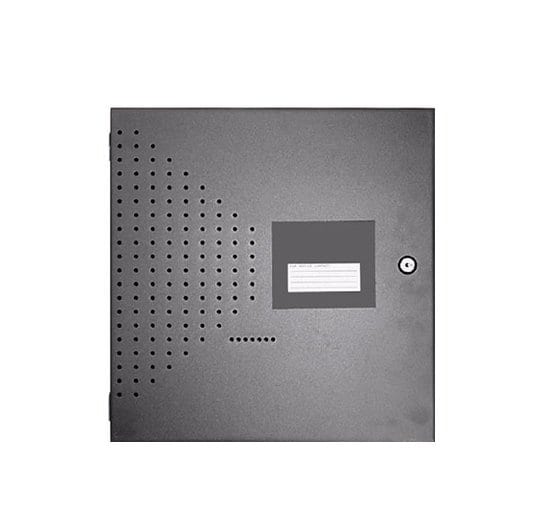

FCPS-24S6 | Honeywell Power Supply Fire Alarm 6 Amp
- Regular price
- $1,389.00
- Sale price
- $1,389.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FCPS-24S6
Description
The Honeywell FCPS-24S6 is a supervised, power-limited 24VDC remote power supply and battery charger designed to expand the power capabilities of fire alarm control panels. With 6.0 amp burst capacity and 4.0 amp continuous current, it supports multiple NAC configurations for reliable notification appliance operation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Fire Alarm Power Solutions
|
| Part Number | FCPS-24S6 |
| Subcategory | Notification Appliance Power Supplies |
| Output Voltage | 24VDC (filtered) |
| NAC Circuits | 4 × Class B (Style Y), Class A with ZNAC-4 |
| Maximum Output per NAC | 3.0 A (special application), 300 mA (regulated) |
| Total Continuous Output | 4.0 A |
| Total Burst Output | 6.0 A |
| Triggering Method | Reverse polarity NAC or 12/24 VDC input |
| Strobe Synchronization | ADA compliant |
| Power Supply Type | Supervised, Power-Limited (Class 2) |
| Input Voltage |
120 VAC / 60 Hz (FCPS-24S6), 240 VAC / 50 Hz |
| Input Current | 1.6 A max at 240 VAC |
| Battery Charger | Integrated |
| Weight | 15 lbs |
Information About FCPS-24S6
The FCPS-24S6 is part of Honeywell’s FCPS-24S power supply series, offering a filtered 24VDC output and support for four Class B (Style Y) NACs, which can be converted to Class A (Style Z) using the optional ZNAC-4 module. It features ADA-compatible strobe synchronization and programmable outputs that can be used as resettable or nonresettable 24VDC power supplies. The unit supports reverse polarity triggering from NAC circuits or can be activated by 12VDC or 24VDC inputs, making it compatible with a wide range of fire alarm panels.
Key Features:
- 24VDC Filtered Output: Delivers regulated power for NACs or auxiliary devices.
- Four Programmable Circuits: Supports Class B (Style Y) NACs or convert to Class A (Style Z) with ZNAC-4.
- 6 Amp Burst / 4 Amp Continuous Output: Provides high startup current for strobes while maintaining regulated power.
- Strobe Synchronization: ADA-compatible timing for synchronized strobe operation.
- Dual Voltage Triggering: Accepts 12VDC or 24VDC input control or NAC reverse polarity.
- Power-Limited Class 2 Design: Ensures electrical safety per UL standards.
- Battery Charging Circuit: Supports standby battery operation and charging.
- Multiple Input Voltages: FCPS-24S6 (120 VAC),
- Remote Installation Capability: Functions as a standalone remote power extender for FACP.
- UL Listed for Fire Protection: Certified for use in life safety and fire alarm systems.
The FCPS-24S6 enables reliable expansion of power and NAC functionality in distributed fire alarm systems.
