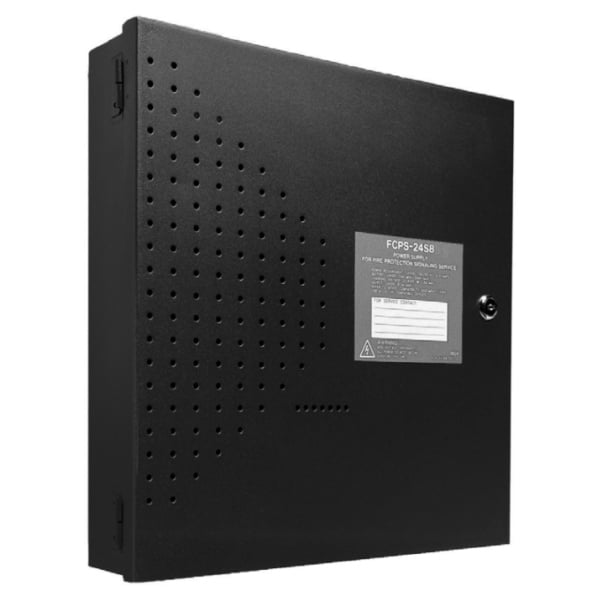

FCPS-24S6E | Notifier 24V Fire Alarm Power Supply & NAC Expander, 6A Output
- Regular price
- $694.00
- Sale price
- $694.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FCPS-24S6E
Description
The Notifier FCPS-24S6E is a 24V regulated fire alarm power supply and NAC expander designed to support notification appliances and auxiliary devices. Operating on 240 VAC input, it provides up to 6 amps of filtered, regulated output power for fire alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Power Supplies |
| Part Number | FCPS-24S6E |
| Subcategory | Fire Alarm Power Supply |
| Series | FCPS Series |
| Model | FCPS-24S6 |
| Primary Power Input | 240 VAC, 50 Hz, 1.6 A max |
| Wire Size | Minimum #14 AWG (2.0 mm²), 600 V insulation |
| Output Voltage | +24 VDC filtered, regulated |
| Max Output (Per Circuit) | 3.0 A |
| Max Output (Stand-Alone) | 4.0 A continuous |
| Max Output (NAC Expander) | 6.0 A short-term |
| Auxiliary Power Output | 500 mA max, special application |
| Control Input Voltage | 9–32 VDC |
| Control Input Current | 2.0 mA (16–32 V); 1.0 mA (9–16 V) |
| Trouble Relay | Form-C, 5 A at 24 VDC |
| Battery Charger | Supports sealed lead-acid batteries |
| Float Charge Voltage | 27.6 VDC |
| Max Charge Current | 1.5 A |
| Max Battery Capacity | 18 AH |
| Application | NAC expansion and auxiliary power supply |
| Environment | Commercial, institutional, and industrial facilities |
| Compliance | UL listed (where applicable) |
| Weight | 12 lbs (approx.) |
Information About FCPS-24S6E
The FCPS-24S6E is part of Notifier’s FCPS series of fire alarm power supplies, built to expand notification appliance circuit (NAC) capacity and provide auxiliary 24VDC power. It can function in either stand-alone mode, delivering 4.0 A continuous current, or NAC expander mode, supplying up to 6.0 A of short-term current. The unit features a supervised battery charger supporting lead-acid batteries up to 18 AH, with float-charge capability for reliable standby power. Compact and field-installable, the FCPS-24S6E integrates seamlessly with Notifier fire alarm control panels and is suited for commercial, institutional, and industrial applications.
Key Features:
- Regulated Power Supply: Provides +24 VDC filtered and regulated output.
- High Output Capacity: Supplies up to 6.0 A in NAC expander mode or 4.0 A in stand-alone mode.
- Multiple Output Circuits: Delivers 3.0 A maximum per circuit.
- Battery Charging: Integrated charger supports lead-acid batteries up to 18 AH.
- Trouble Relay: Rated at 5 A, 24 VDC for system supervision.
- Trigger Input: Accepts 9–32 VDC for activation with low current draw.
- Auxiliary Power: Provides 500 mA special application auxiliary output.
- Global Input Voltage: Operates from 240 VAC, 50 Hz mains power.
The FCPS-24S6E delivers the reliability and precision required for powering notification appliances and auxiliary devices in life safety systems.
