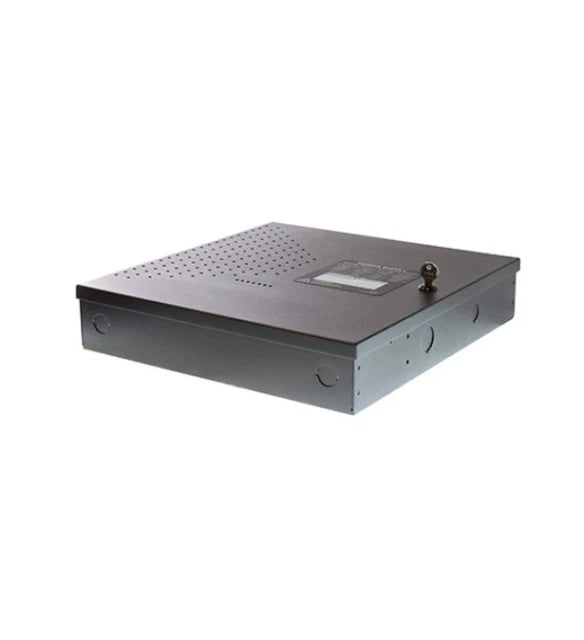

FCPS-24S8 | Honeywell Notifier Power Supply for Fire Protection Signal Devices
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FCPS-24S8
Description
The Honeywell FCPS-24S8 is an 8-amp remote power supply from the Notifier FCPS-24S Series, designed to provide regulated 24V DC power and expanded notification circuit capacity. Ideal for fire protection systems, it includes a built-in battery charger and supports various NAC and auxiliary power configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Fire Alarm Power Supplies
|
| Part Number | FCPS-24S8 |
| Subcategory | NAC Expanders with Battery Charger |
| Output Power | 8 Amps at 24 VDC (regulated, filtered) |
| NAC Circuits | 4 Class B (Style Y) or 2 Class A (Style Z, with ZNAC-4 module) |
| Input Voltage Compatibility | 12V or 24V Fire Alarm Control Panels |
| Battery Charging Capacity | Up to 18 AH |
| Enclosure Color | Black |
| Mounting Type | Wall-mounted |
| Wire Gauge Supported | 14 AWG |
| Listings & Approvals | UL, ULC, CSFM, FM, MEA |
| Compatible FACPs | NFS-320, NFS2-3030, NFS2-640 |
| Enclosure Dimensions | 2.75 × 14.50 × 15.00 in |
| Weight | 15.00 lbs |
Information About FCPS-24S8
The FCPS-24S8 is a high-performance remote power supply designed to extend the capabilities of fire alarm control panels (FACPs), such as the NFS-320, NFS2-3030, and NFS2-640. With an 8-amp output and compatibility with both 12V and 24V FACPs, the FCPS-24S8 delivers filtered and regulated 24V DC power to four configurable notification appliance circuits (NACs). The outputs can be arranged as four Class B (Style Y), or two Class A (Style Z) using the ZNAC-4 option module. It also allows outputs to be designated as resettable or non-resettable based on system needs.
Key Features:
- 8-Amp Output Capacity: Supplies filtered and regulated 24 VDC power for multiple fire system devices and NACs.
- Flexible NAC Configuration: Four outputs configurable as 4 Class B (Style Y) or 2 Class A (Style Z) with ZNAC-4 module.
- Resettable/Non-resettable Options: Allows combinations of output types (e.g., 2 resettable and 2 non-resettable).
- Built-in Battery Charger: Supports charging for batteries up to 18 AH for reliable backup power.
- Universal FACP Compatibility: Works with any 12V or 24V fire alarm control panel; designed for integration with NFS-320, NFS2-3030, and NFS2-640.
- Synchronization and ADA Support: Expands NACs and synchronizes signal devices to meet safety compliance.
- Approved Listings: UL, ULC, CSFM, FM, and MEA certified for code-compliant installations.
- Sturdy Enclosure: Rugged metal housing in black finish, optimized for wall mounting in fire control environments.
The FCPS-24S8 delivers scalable and compliant power distribution for life safety and fire protection systems.
