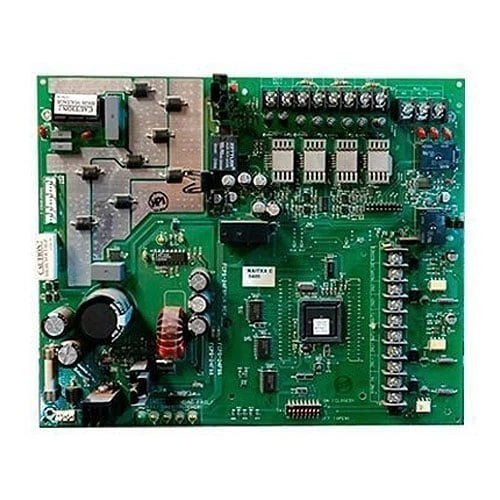

FCPS-24S8RB | Fire-Lite Master Control Replacement Board for FCPS-24FS8 Power Supply
- Regular price
- $2,149.00
- Sale price
- $2,149.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FCPS-24S8RB
Description
The Fire-Lite FCPS-24S8RB is a master control replacement board designed for the FCPS-24FS8 remote NAC extender power supply. It provides regulated and filtered 24 VDC power while supervising input and output conditions. Compact and reliable, the FCPS-24S8RB ensures continued functionality of NAC expansion systems in fire alarm applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Controls & Indicators |
| Part Number | FCPS-24S8RB |
| Subcategory | CPU/Control Board |
| Compatible Unit | FCPS-24FS8 NAC Extender Power Supply |
| Power Output | 24 VDC regulated and filtered |
| NAC Power Capacity | 8 A (from FCPS-24FS8 system) |
| Input Circuits | 2 fully isolated control inputs |
| AC Trouble Reporting | Selectable: immediate or 2-hour delay |
| Operating Mode | Supports NAC expansion and standalone use |
| Functionality | Supervises inputs, outputs, and battery charging |
| Compliance | UL Listed, NFPA 72, ADA synchronization support |
| Dimensions | Standard PCB size for FCPS-24FS8 chassis |
| Weight | 1.45 lbs |
Information About FCPS-24S8RB
The FCPS-24S8RB is part of the Fire-Lite/Notifier FCPS-24FS8 family, which delivers 8 amps of auxiliary power for notification appliances and 24 VDC system accessories. As a replacement master control board, the FCPS-24S8RB contains two fully isolated input control circuits for compatibility with a variety of FACP inputs. It offers selectable AC trouble reporting with immediate or delayed response options. Built to meet NFPA and ADA requirements, the FCPS-24S8RB maintains synchronization across NACs, ensuring coordinated audible and visual signaling. With its regulated power output and monitoring functions, it restores full functionality to FCPS-24FS8 units without replacing the entire assembly.
Key Features:
- Replacement Control Board: Designed for the FCPS-24FS8 remote NAC extender.
- Isolated Input Circuits: Two fully isolated inputs for flexible panel integration.
- Selectable AC Trouble Reporting: Immediate or 2-hour delay options.
- Regulated Power Output: Fully filtered 24 VDC for notification appliances and accessories.
- NAC Synchronization: Ensures strobes and horns operate in compliance with ADA standards.
- Battery Charging Support: Maintains standby battery readiness within the FCPS-24FS8.
- Compact Form Factor: Facilitates direct installation into existing units.
- Standards Compliance: Meets UL fire system requirements for auxiliary power and NAC expansion.
The FCPS-24S8RB provides a cost-effective solution for restoring and maintaining NAC extender functionality in fire alarm systems.
