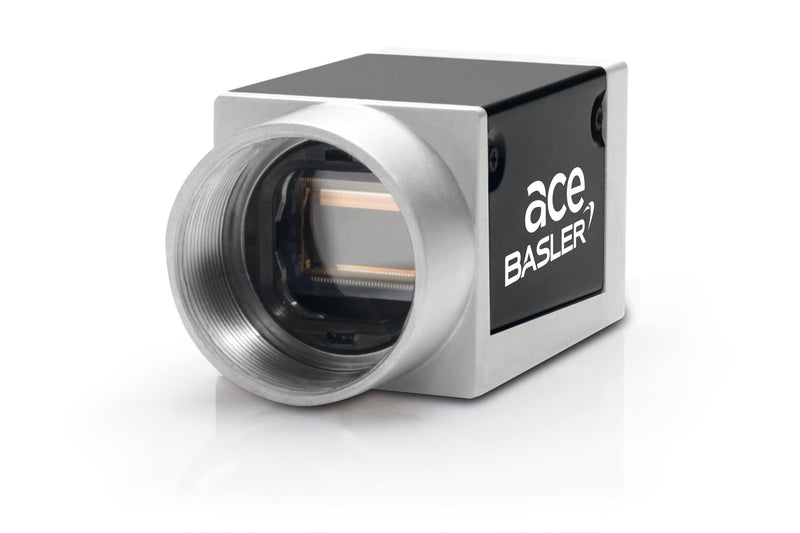

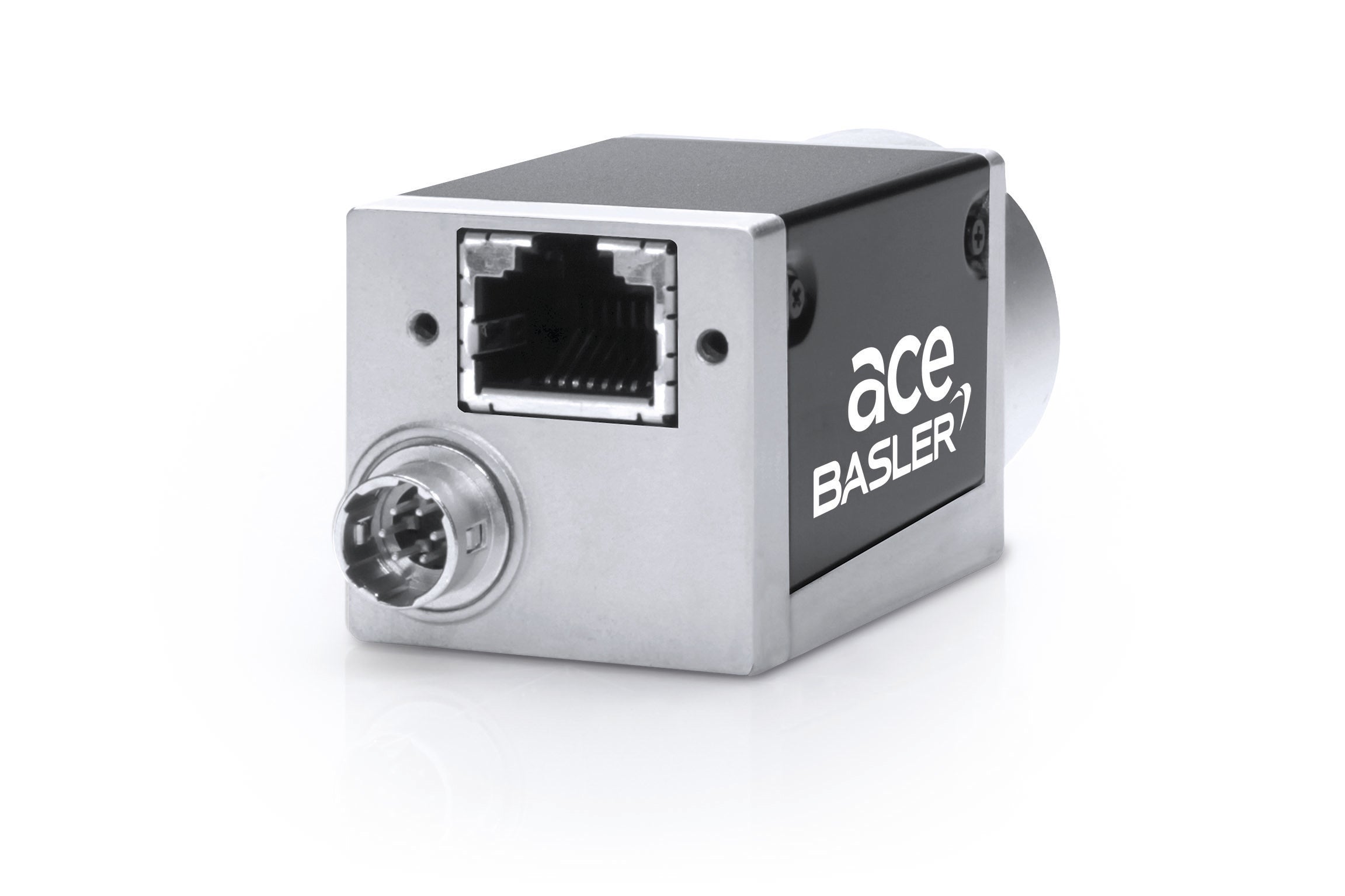

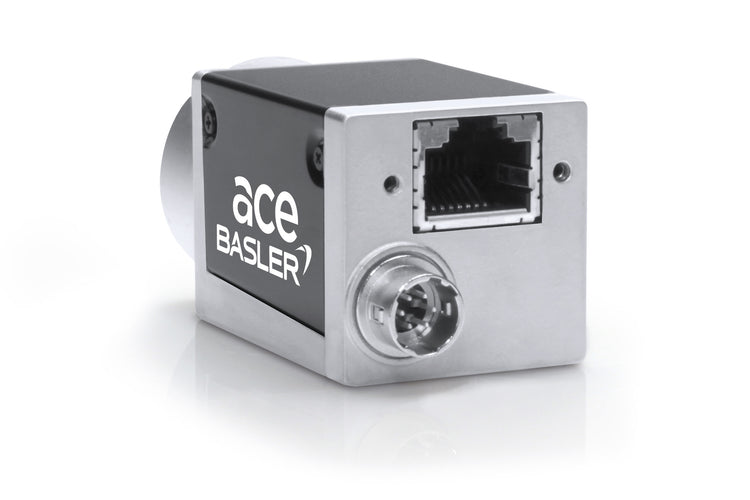

ACA1600-20GM | Basler Industrial Camera
- Regular price
- $537.00
- Sale price
- $537.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: ACA1600-20GM
Description
The ACA1600-20GM is a Basler industrial GigE camera offering 1.9 MP resolution and up to 20 fps. It features a compact design, high-quality CMOS sensor, and Power over Ethernet (PoE) support, ideal for industrial automation and machine vision applications.
Technical Specifications
Condition | New/Never Used Surplus |
Brand | Basler |
Category | Camera Equipment |
Part Number | ACA1600-20GM |
Subcategory | CCD Cameras |
Weight | 0.09 kgs |
Resolution (H x V pixels) | 1626 x 1236 Pixels |
Max. Image Circle | 1/1.8" |
Sensor Type | CCD Mono |
Shutter | Global Shutter |
Pixel Size Horizontal/Vertical | 4.4 µ x 4.4 µ |
Frame Rate | 20 FPS |
Pixel Bit Depth | 12 bits |
Housing Size (L x W x H) in mm | 42.0 x 29.0 x 29.0 |
Housing Temperature | 0 °C - 50 °C |
Digital Input | 1 |
Digital Output | 1 |
Power Requirements | PoE or 12 VDC |
Power Consumption (Typical) | 2.9 W |
Power Consumption PoE | 3.4 W |
Sensor | ICX274 |
Sensor Size | 7.16 mm x 5.44 mm |
Information About ACA1600-20GM
The ACA1600-20GM is an industrial camera from Basler, designed for high-performance image acquisition in demanding industrial applications. It is part of Basler’s Ace series, known for compact designs, advanced features, and reliability.
Key Features:
- Model: ACA1600-20GM
- Type: GigE Industrial Camera
- Manufacturer: Basler
- Resolution: 1600 x 1200 pixels (1.9 MP) for detailed image capture.
- Frame Rate: Up to 20 frames per second for real-time imaging in dynamic applications.
- Sensor: Equipped with a high-quality CMOS sensor for excellent image clarity.
- Interface: Gigabit Ethernet (GigE) interface for high-speed data transmission.
- Compact Design: Small form factor for easy integration into existing systems.
- Software Support: Compatible with Basler’s Pylon Camera Software Suite for control and development.
Specifications:
- Image Quality: Delivers high-resolution, sharp images suitable for a variety of industrial tasks.
- Connectivity: Utilizes GigE interface for long cable lengths and flexible installations.
- Power Supply: Supports Power over Ethernet (PoE) for simplified cabling.
- Build: Durable housing designed for industrial environments.
- Dimensions: Compact and lightweight for versatile mounting options.
Applications:
- Quality Inspection: Ideal for inspecting products on manufacturing lines.
- Machine Vision: Used in robotics and automation systems for precise image analysis.
- Surveillance: Suitable for industrial monitoring and security purposes.
- Research & Development: Effective for laboratory imaging and testing scenarios.
The ACA1600-20GM is a robust industrial camera tailored for tasks requiring high-resolution imaging and reliable performance.
