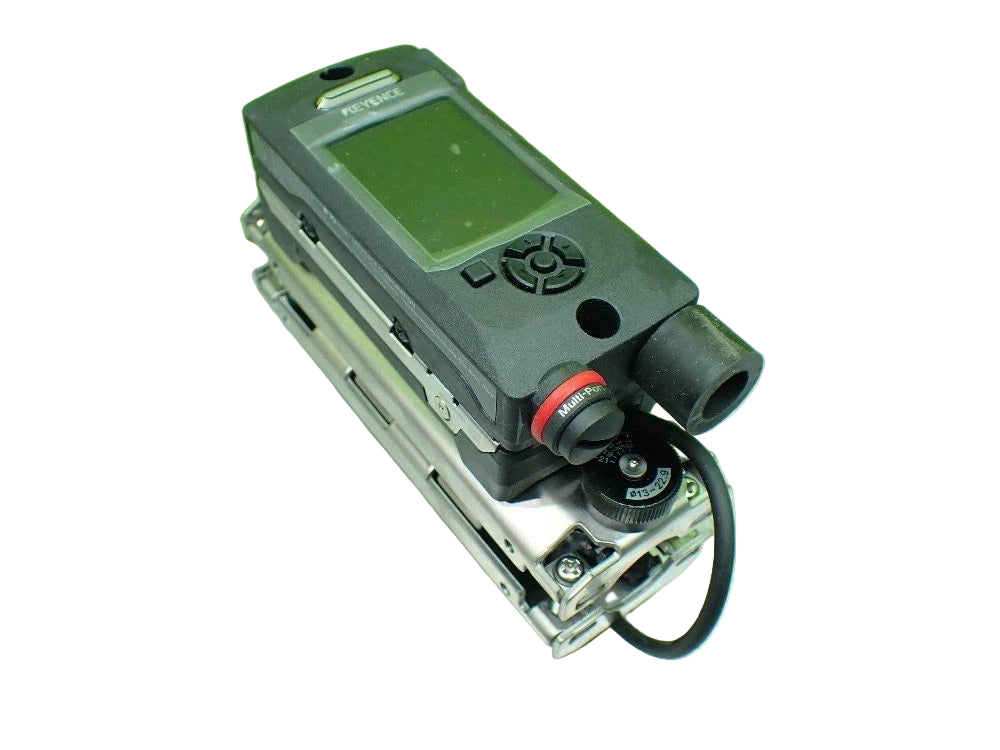

FD-H22F | Keyence Clamp-On Hose Flow Sensor, Ø13–22.9 mm, 60 L/min, IO-Link
- Regular price
- $1,172.00
- Sale price
- $1,172.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FD-H22F
Description
The Keyence FD-H22F is a clamp-on flow sensor hose model designed for precise, non-intrusive measurement of liquids through soft plastic or rubber piping. It supports a pipe diameter range of Ø13–22.9 mm (0.51"–0.90") and measures flow rates up to 60 L/min (15.9 gal/min) using advanced Delta TOF ultrasonic detection technology.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | FD-H22F |
| Subcategory | Flow Sensor |
| Type | Hose model |
| Supported Pipe Diameter | Ø13–22.9 mm (0.51"–0.90") |
| Supported Pipe Materials | Soft plastic, braided hoses, rubber hoses |
| Supported Fluids | All fluids (water, oil, chemicals) |
| Fluid Temperature | 0–100°C (32–212°F) |
| Maximum Rated Flow | 60 L/min (15.9 gal/min) |
| Zero Cut Flow Rate | 0.5 L/min (0.13 gal/min) |
| Detection Principle | Delta TOF (ultrasonic time-of-flight) |
| Display | QVGA 2.0 color LCD with status indicator |
| Display Update Rate | Approx. 10 times/second |
| Display Resolution | 0.01/0.1/1.0 L/min (default: 0.1) |
| Response Time | 0.5 / 1 / 2.5 / 5 / 10 / 30 / 60 / 120 / 200 s selectable |
| Measurement Accuracy | ±1.0% (typical) |
| Repeatability | ±0.5% of F.S. or better |
| Flow Units | L/min, m³/h, G/min |
| IO-Link Support | Ver.1.1 compatible |
| Analog Output | 4–20 mA / 0–20 mA, 500 Ω or less |
| Power Supply | 24 VDC nominal (18–30 VDC) |
| Current Consumption | 240 mA or less |
| Enclosure Rating | IP65 / IP67 |
| Ambient Temperature | Sensor head: -20 to +60°C (-4 to +140°F) |
| Relative Humidity | 35–85% RH (non-condensing) |
| Vibration Resistance | 10–500 Hz, 10 sweeps each in X, Y, and Z axes |
| Shock Resistance | 100 m/s² (16 ms pulses, 1000 times each axis) |
| Materials | Body: PPS/PET/PAR; Bracket: SUS304; Cable: PVC |
| Data Interface | USB 2.0 |
| Weight | Approx. 770 g (1.7 lbs) |
Information About FD-H22F
The FD-H22F belongs to the Keyence FD-H Series of clamp-on ultrasonic flow sensors, engineered for accurate and maintenance-free monitoring of various fluids including water, oil, and chemicals. Using a time-of-flight (Delta TOF) measurement system, it ensures stable flow readings without fluid contamination or pressure loss. The unit features a QVGA color LCD display, IO-Link communication, and multiple analog or pulse output options for easy system integration. Its IP65/IP67-rated construction and wide operating temperature range make it ideal for industrial, laboratory, and process control environments.
Key Features:
- Non-Intrusive Measurement: Clamp-on design eliminates the need to cut or modify piping.
- Wide Pipe Compatibility: Supports hose diameters from Ø13–22.9 mm (0.51"–0.90") across various flexible materials.
- High Flow Capacity: Accurately measures up to 60 L/min (15.9 gal/min) for water, oil, and chemical applications.
- Advanced Delta TOF Detection: Ensures fast, accurate, and stable flow detection without fluid contact.
- Wide Fluid Temperature Range: Handles 0 to 100°C (32 to 212°F) with no freezing on pipe surfaces.
- Multi-Function Display: High-resolution QVGA color LCD with integrated status indicator light for easy monitoring.
- Flexible Output Options: Includes NPN/PNP, analog (4–20 mA / 0–20 mA), and pulse output modes.
- IO-Link Communication: Enables advanced data exchange and integration with modern automation systems.
- Rugged Environmental Resistance: Rated IP65/IP67 and resistant to vibration, shock, and harsh industrial conditions.
- Built-in Heat Calculation: Provides energy monitoring in MJ/h, kW, or kBTU/h for process optimization.
The FD-H22F delivers the precision, convenience, and reliability required for flow measurement in chemical processing, cooling, and fluid distribution systems.
