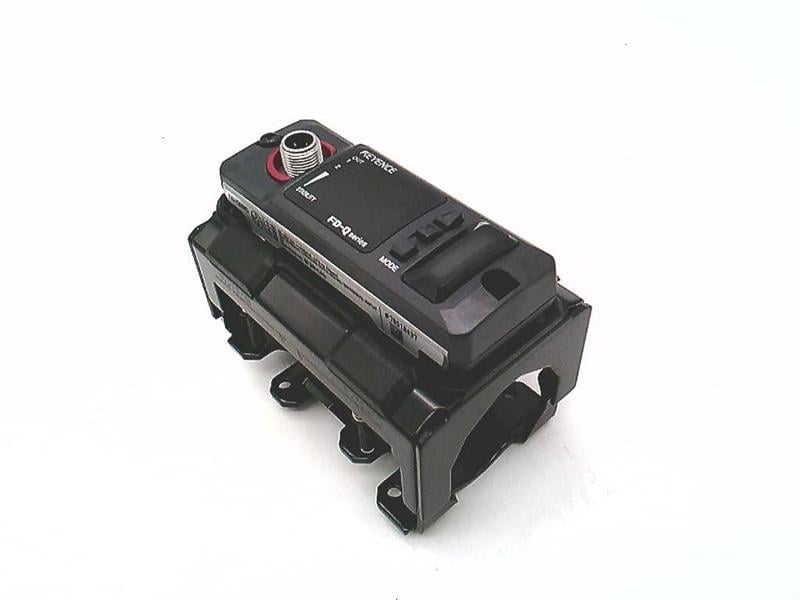

FD-Q32C | Keyence Clamp-On Flow Sensor 1″/1¼″ Pipe 200–300 L/min 20–30 VDC M12 4-Pin
- Regular price
- $587.00
- Sale price
- $587.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FD-Q32C
Description
The Keyence FD-Q32C is a clamp-on flow sensor main unit designed for monitoring liquid flow in 1" (25A) and 1¼" (32A) pipes. Capable of measuring a wide range of fluids including water, oils, and chemicals, it provides non-intrusive flow measurement up to 300 L/min with a robust IP65/IP67-rated body and advanced digital output functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | FD-Q32C |
| Subcategory | Flow Transmitter |
| Series | FD-Q Series |
| Pipe Compatibility | 1" (25 A) – ø28–ø37 mm; 1¼" (32 A) – ø37–ø44 mm |
| Supported Pipe Materials | Metal and resin pipes |
| Supported Fluids | Water, oils, chemicals, DI water, other liquids |
| Flow Range | 1" – 200 L/min (52.8 GPM); 1¼" – 300 L/min (79.3 GPM) |
| Display | Dual 4-digit LED with indicators (flow, output, stability) |
| Display Update Rate | Approx. 3 Hz |
| Response Time | Selectable: 0.5 s / 1.0 s / 2.5 s / 5 s / 10 s / 30 s / 60 s |
| Repeatability | ±0.15 % F.S. (60 s setting) to ±2.0 % F.S. (0.5 s setting) |
| Analog Output | 4–20 mA / 0–20 mA (load ≤ 500 Ω) |
| Digital Output | NPN/PNP open collector, 30 VDC max, 100 mA per channel |
| Power Supply | 20 – 30 VDC (Class 2 / LPS) |
| Current Consumption | ≤ 130 mA (excluding load) |
| Ambient Temperature | –10 °C to +60 °C (14 °F to 140 °F) |
| Fluid Temperature | 0 °C to +85 °C (32 °F to 185 °F) |
| Enclosure Rating | IP65 / IP67 (IEC 60529) |
| Material (Main Unit) | PPS, PES, PBT, SUS303, SUS304, SUSXM7 |
| Mounting Bracket | SUS304 / PA / POM / SUSXM7 |
| Connector | M12 4-pin |
| Memory Type | EEPROM (>10 years retention) |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude (X, Y, Z axes) |
| Shock Resistance | 100 m/s², 16 ms pulse × 1,000 cycles (X, Y, Z) |
| Weight | Approx. 530 g (including mounting bracket) |
Information About FD-Q32C
The FD-Q32C is part of Keyence’s FD-Q Series of clamp-on flow sensors, engineered for accurate flow detection without the need to cut or modify existing piping. Designed to support both metal and resin pipes, it offers high repeatability and stability with selectable analog or pulse outputs. The unit operates on 20–30 VDC and features a bright dual-row LED display with real-time flow indication and diagnostic icons. It includes an EEPROM memory for long-term data retention, flexible response times ranging from 0.5 s to 60 s, and built-in protection against reverse polarity, surge, and short circuits. Its durable stainless-steel and engineering-plastic housing ensures reliable performance in harsh industrial environments such as chemical processing, cooling systems, and fluid delivery applications.
Key Features:
- Non-Invasive Measurement: Clamp-on design eliminates the need for pipe modification or flow interruption.
- Wide Flow Range: Supports flow rates up to 200 L/min (1″) or 300 L/min (1¼″).
- Multi-Fluid Compatibility: Measures various liquids including water, oil, and chemicals with no contact contamination.
- Dual Digital Display: 4-digit, dual-line LED with flow rate, stability level, and status indicators for easy monitoring.
- High Repeatability: Accuracy up to ±0.15 % F.S. depending on response time setting.
- Selectable Output Modes: Configurable NPN/PNP control, pulse, error, or analog (4–20 mA/0–20 mA) outputs.
- EEPROM Data Backup: Integrated memory stores totalized flow and setup data for over 10 years.
- Durable Industrial Design: IP65/IP67 enclosure rated for demanding environments.
- Flexible Mounting: Stainless-steel bracket and clamp system suitable for a variety of pipe types.
- Stable Power Operation: 20–30 VDC Class 2 supply with low current consumption (≤130 mA).
The FD-Q32C combines versatility, durability, and ease of installation, providing precise flow monitoring for critical liquid-handling applications.
