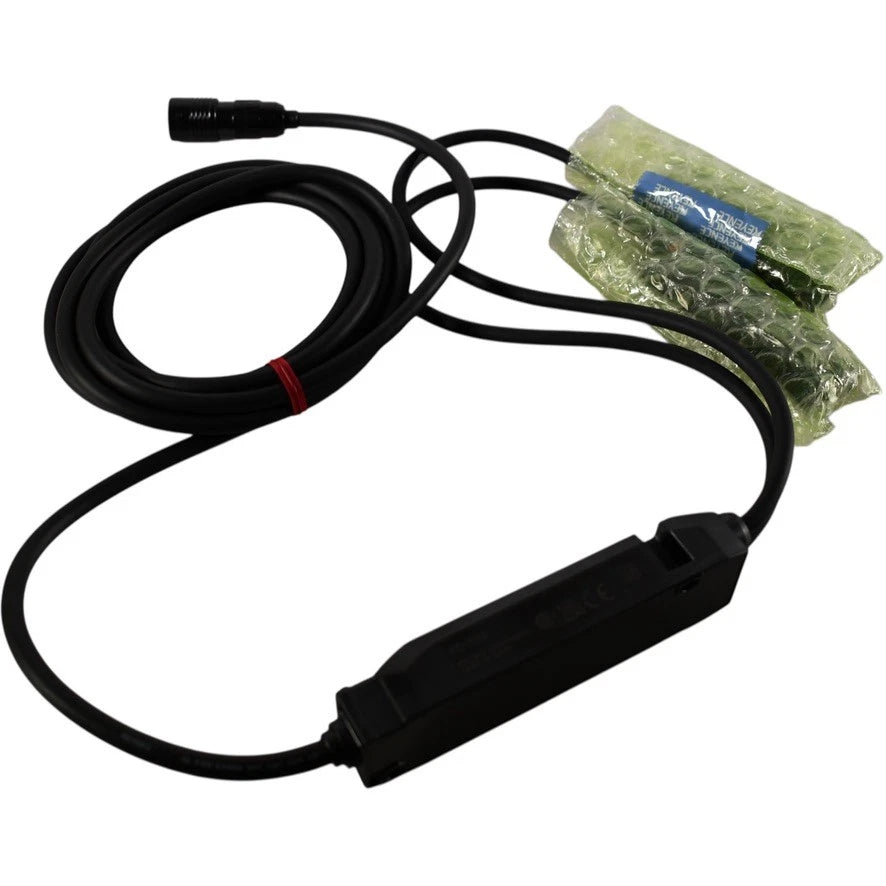

FD-XS8 | Keyence Clamp-On Micro Flow Sensor Head, 8 L/min, IP68G
- Regular price
- $1,067.00
- Sale price
- $1,067.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FD-XS8
Description
The Keyence FD-XS8 is a micro clamp-on flow sensor head designed for precise liquid flow measurement in both metal and plastic pipes. With a maximum rated flow rate of 8 L/min, it provides accurate, non-invasive detection of water, oil, and chemical solutions across a wide temperature range and supports real-time monitoring through an integrated status indicator.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | FD-XS8 |
| Subcategory | Flow Meter |
| Supported Pipe Materials | Metal pipes, plastic pipes (soft/hard) |
| Supported Fluids | Liquids (water, oil, adhesive, grease, chemicals, etc.) |
| Fluid Temperature Range | 0°C to +100°C (32–212°F, no freezing) |
| Clamp Set Compatibility | Plastic: FD-XC8R1/2/3, Metal: FD-XC8M |
| Maximum Rated Flow Rate | Ø8 mm pipe: 0 to 8000 mL/min (0 to 8 L/min) |
| Zero Cut Flow Rate | 40 mL/min (adjustable) |
| Display Resolution | 0.1/1/10 mL/min (controller display dependent) |
| Repeatability | ±0.1% F.S. (typical, pipe-dependent) |
| Response Time | 50 ms / 500 ms selectable |
| Hysteresis | Variable |
| Display Method | Status indicator (via controller) |
| Enclosure Rating | IP65 / IP67 / IP68G (IEC60529 / JIS C0920) |
| Ambient Temperature | -10 to +60°C (14 to 140°F, no freezing) |
| Relative Humidity | 35–85% RH (No condensation) |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5 mm for 2 hrs in XYZ |
| Shock Resistance | 50 G, 11 ms pulse (3 times each in X, Y, Z) |
| Material (Head Body) | PPS/PPSU |
| Cable | PVC (integrated) |
| Clamp Material (Plastic Pipe) | PPS body, FKM rubber, SUSXM7 screws |
| Clamp Material (Metal Pipe) | SUS304 body, FKM rubber, SUSXM7 screws |
| Cooling Method | Natural air cooling |
| Weight | Approx. 250 g (0.55 lbs) |
Information About FD-XS8
The FD-XS8 is part of the Keyence FD-X Series, a high-performance family of ultrasonic clamp-on flow sensors that deliver reliable, contamination-free liquid flow measurement. Using ultrasonic detection, it measures flow accurately in pipes as small as Ø3 to Ø8 mm (0.12" to 0.31") without direct contact with the fluid. The FD-XS8 features IP65/IP67/IP68G protection, vibration resistance, and high repeatability (±0.1%)—making it suitable for use in cooling, lubrication, chemical dosing, and fluid transport systems. With compatibility for both metal and plastic pipe attachments, it combines robust industrial performance with maintenance-free operation.
Key Features:
- Non-Invasive Measurement: Clamp-on design allows flow detection without cutting or contacting pipes.
- Wide Compatibility: Works with metal and plastic pipes (soft or hard types) in sizes Ø3–8 mm.
- High Flow Precision: Measures flow rates up to 8 L/min, with repeatability as tight as ±0.1%.
- Supports Multiple Fluids: Ideal for water, oil, chemicals, adhesives, and process solutions.
- Temperature Range: Operates on pipe surfaces from 0°C to +100°C (32–212°F) with stable accuracy.
- High Environmental Protection: Rated IP65/IP67/IP68G, ensuring resistance to dust, liquids, and corrosion.
- Durable Construction: Built from PPS/PPSU/PVC materials with stainless steel (SUS304/SUSXM7) fasteners.
- Flexible Display Options: Displays instantaneous flow rate and shot volume through a connected controller.
- Strong Mechanical Endurance: Withstands 50 G shocks and 10–55 Hz vibration environments.
- Compact and Lightweight: Designed for easy installation on tight piping networks with a weight of only 250 g.
The FD-XS8 delivers exceptional precision and durability for non-contact liquid flow monitoring in advanced process automation systems.
