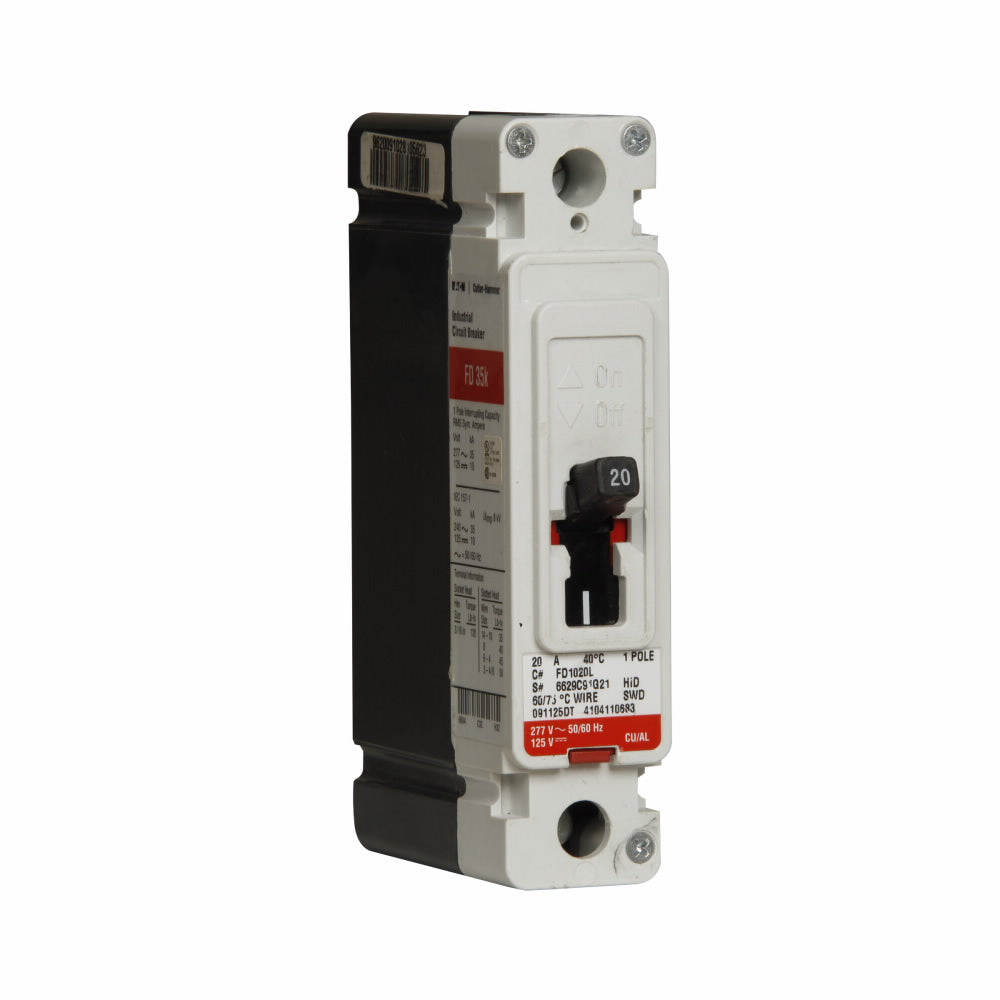

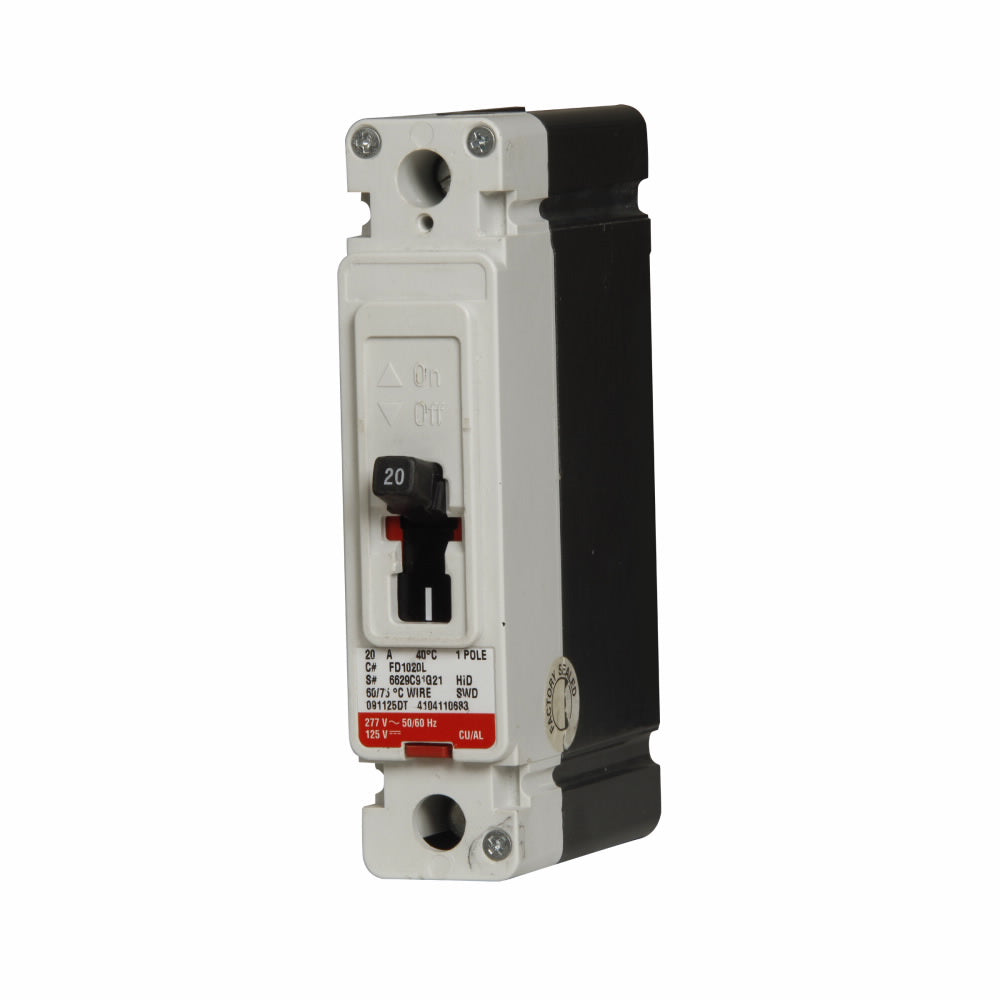

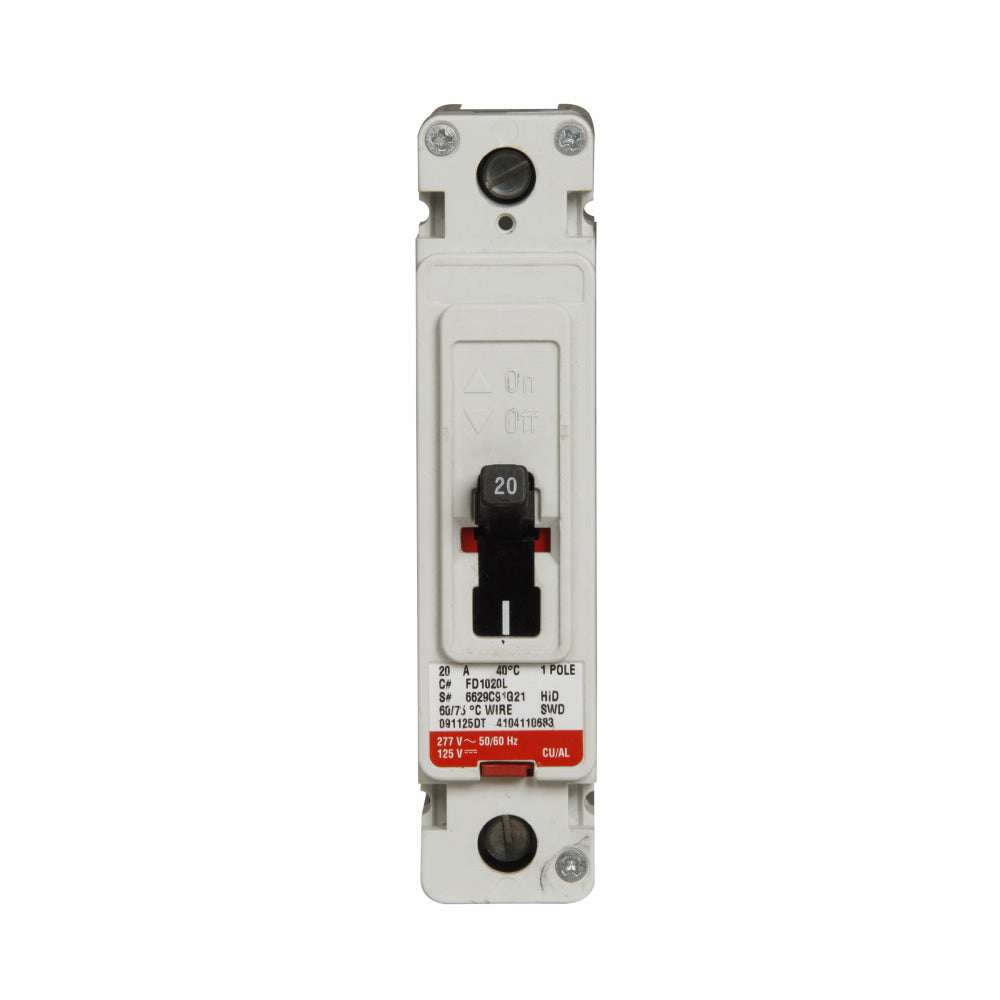

FD1020L | Eaton 20A 1-Pole 347 VAC / 125 VDC Series C Molded Case Circuit Breaker (F-Frame)
- Regular price
- $272.00
- Sale price
- $272.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FD1020L
Description
The Eaton FD1020L is a 1-pole molded case circuit breaker from the Series C line, engineered for reliable circuit protection in commercial and industrial electrical systems. Rated for 20 amps and 347 VAC / 125 VDC, it uses a fixed thermal-magnetic trip unit to provide both overload and short-circuit protection. With a 35 kAIC interrupting rating at 277 V and durable F-frame construction, the FD1020L ensures consistent performance across demanding power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | FD1020L |
| Subcategory | Molded Case Circuit Breaker |
| Series | Series C |
| Frame Type | F-Frame |
| Number of Poles | 1 |
| Amperage Rating | 20 A |
| Voltage Rating | 347 VAC / 125 VDC |
| Interrupting Rating | 35 kAIC at 277 VAC / 18 kAIC at 347 VAC |
| Trip Type | Fixed Thermal-Magnetic |
| Functions | Long-Time and Instantaneous |
| Connection Type | Feed-Through |
| Terminal Type | Line and Load Lugs |
| Frequency Rating | 50/60 Hz |
| Certifications | UL Listed, CSA Approved |
| Compliance Standard | UL 489 |
| Mounting Type | Panel Mount |
| Dimensions (H × W × D) | 6 × 1.38 × 3.38 in |
| Country of Origin | USA or Philippines |
| Weight | 1.4 lb |
Information About FD1020L
The FD1020L is part of Eaton’s Series C molded case circuit breaker family, designed for OEM, industrial, and commercial installations requiring high interrupting capacity and dependable circuit control. It features an F-frame design with line and load lug terminals, a thermal-magnetic trip mechanism, and feed-through connection for efficient integration into switchgear or panelboards. Its high-speed “blow-open” action enables rapid fault clearing to minimize system damage and downtime. Engineered to meet UL and CSA standards, the FD1020L offers proven reliability and compatibility with a wide range of low-voltage power distribution systems.
Key Features
- High Interrupting Capacity: Rated 35 kAIC at 277 VAC for superior fault protection.
- Thermal-Magnetic Trip Unit: Provides fixed long-time and instantaneous trip functions.
- Durable F-Frame Design: Compact molded case ensures mechanical strength and longevity.
- Dual Voltage Rating: Supports 347 VAC and 125 VDC operation for flexible applications.
- Feed-Through Configuration: Simplifies wiring and integration into existing panels.
- UL Listed and CSA Certified: Complies with international safety and performance standards.
- 50/60 Hz Compatibility: Suitable for both domestic and global electrical systems.
- High-Speed Fault Clearing: “Blow-open” mechanism minimizes arc energy during faults.
The FD1020L delivers the reliability and precision required for industrial, commercial, and OEM power distribution systems requiring dependable circuit protection.
