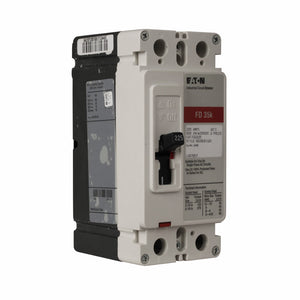

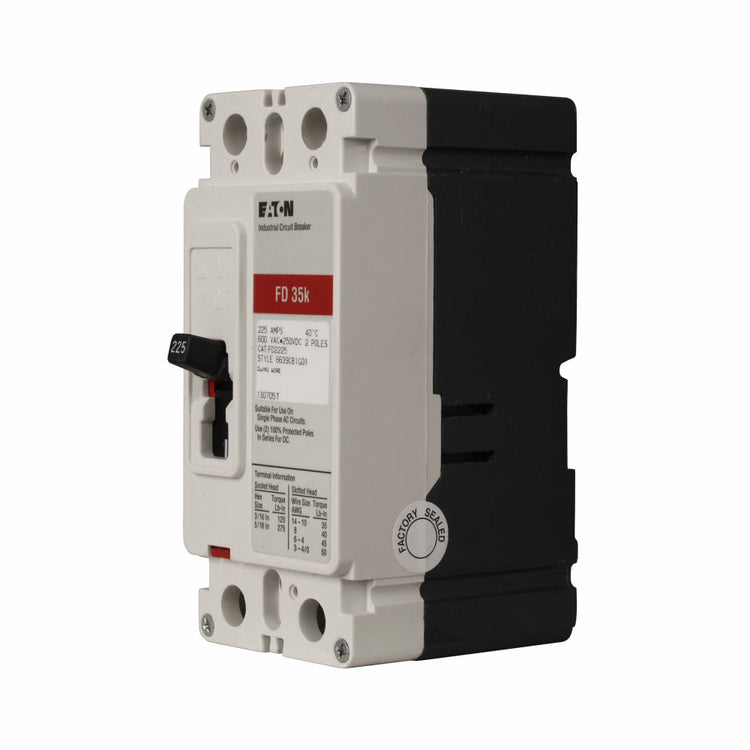

FD2175L | Eaton 175A 2-Pole Series C Molded Case Circuit Breaker for 600V Systems
- Regular price
- $897.00
- Sale price
- $897.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FD2175L
Description
The Eaton FD2175L is a molded case circuit breaker designed to provide dependable thermal-magnetic protection for demanding commercial and industrial power systems. This 175-amp, 2-pole breaker delivers consistent performance across 600 VAC and 250 VDC applications. The FD2175L ensures safe circuit interruption and compatibility with Series C electrical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | FD2175L |
| Subcategory | Molded Case Circuit Breakers |
| Series | Series C |
| Frame Type | F-Frame |
| Amperage Rating | 175 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Number of Poles | 2 |
| Trip Type | LI (Long-Time, Instantaneous) |
| Protection Type | Thermal Magnetic |
| Interrupting Rating | 65 kAIC @ 240 VAC; 35 kAIC @ 480 VAC |
| Connection Type | Feed-Thru |
| Terminals | Line and Load Lugs |
| Frequency Rating | 50–60 Hz |
| Circuit Breaker Type | FD |
| Temperature Rating | 40 °C |
| Dimensions (H×W×D) | 6 × 2.75 × 3.38 in |
| Weight | 4.5 lb |
Information About FD2175L
The FD2175L is part of Eaton’s Series C line, built with an F-frame molded case design engineered for durability and stable mechanical performance. It is compatible with feed-thru installations and integrates smoothly with systems using standard Series C panelboards and switchboards. The breaker utilizes long-time and instantaneous (LI) trip technology to protect circuits under both sustained and rapid-fault conditions. Its thermal-magnetic trip unit and high interrupting ratings make it suited for environments requiring reliable short-circuit handling.
Key Features:
- Series C Construction: Built with Eaton’s F-frame molded case architecture for high mechanical strength and electrical reliability.
- 175 A Thermal-Magnetic Protection: Provides accurate overload and fault response across a wide range of operating conditions.
- High Interrupting Capacity: Rated up to 65 kAIC at 240 VAC and 35 kAIC at 480 VAC for demanding short-circuit environments.
- Feed-Thru Connection: Supports direct line-to-load wiring for straightforward panel integration.
- LI Trip Functions: Long-time and instantaneous trip characteristics deliver layered circuit protection.
- Wide Voltage Compatibility: Operates at 600 VAC and 250 VDC for flexible use across various distribution systems.
- Line and Load Terminals Included: Pre-installed terminals simplify installation and wiring.
- UL Listed Compliance: Meets key industry standards for safety and performance.
The FD2175L delivers the reliability and precision required for molded case circuit protection in commercial and industrial electrical systems.
