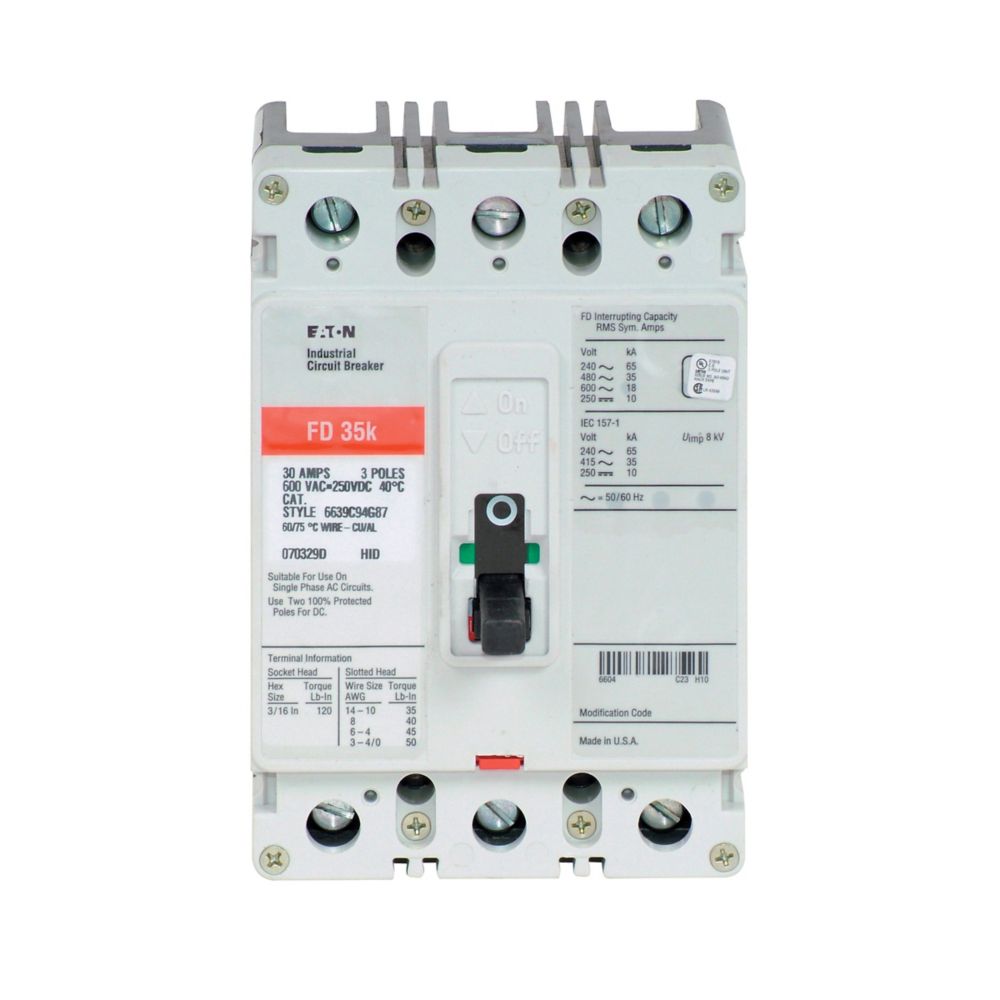

FD3060 | Eaton Series C Complete Molded Case Circuit Breaker
- Regular price
- $715.00
- Sale price
- $715.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FD3060
Description
The Eaton FD3060 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 35kAIC at 480VAC. The FD3060 has a bolt-on connection type and includes long time and instantaneous trip functions.
Technical Specifications
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | FD3060 |
| Subcategory | Molded Case Circuit Breaker |
| Series | FD |
| Amperage | 60A |
| Voltage | 600 |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Bolt-On |
| Connection | Feed-Thru |
| Functions | LI - Long-Time and Instantaneous |
| Protection | Thermal Magnetic |
| AIC Ratings | 35kA@480V |
| Frame Type | F Frame |
Information About FD3060
The FD3060 by Eaton is a comprehensive molded case circuit breaker from the Series C family, designed for reliable protection in demanding electrical systems. This breaker is rated for 60 amps and operates at up to 600 volts, making it suitable for a variety of industrial and commercial applications.
Featuring a three-pole and three-phase configuration, the FD3060 can manage and protect three circuits simultaneously, making it ideal for complex electrical systems. Its bolt-on mounting type ensures a secure installation, providing stability and ease of maintenance in compatible panels.
The breaker utilizes a feed-thru connection type, which facilitates straightforward wiring and enhances installation flexibility. The FD3060 incorporates thermal magnetic protection, combining long-time (LI) and instantaneous (LI) functions. This dual protection mechanism safeguards against sustained overloads and short circuits, ensuring comprehensive circuit protection.
With an impressive interrupting capacity (AIC) of 35kA at 480V, the FD3060 can effectively interrupt high fault currents, minimizing the risk of damage to the electrical system. The breaker is built within an F Frame, known for its durability and compact design, which meets the rigorous demands of modern electrical installations.
Overall, the Eaton FD3060 molded case circuit breaker combines high performance, reliable protection, and ease of installation, making it a dependable choice for safeguarding electrical systems across a range of applications.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
