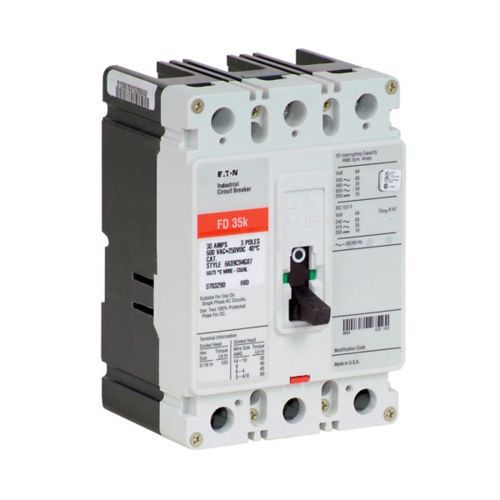

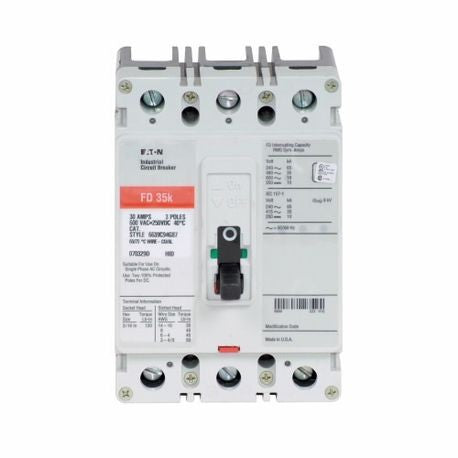

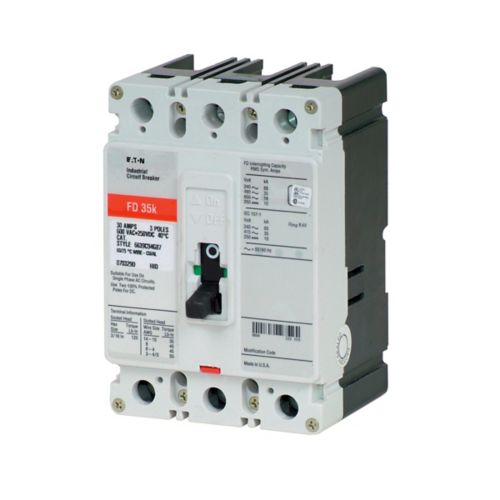

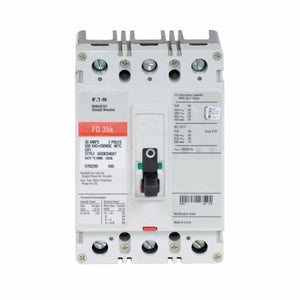

FD3175BP10 | Eaton Molded Case Circuit Breaker
- Regular price
- $950.00
- Sale price
- $950.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FD3175BP10
Description
The Eaton FD3175BP10 is a molded case circuit breaker (MCCB) from Eaton’s Series C line, designed for industrial and commercial power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Circuit Breaker
|
| Part Number | FD3175BP10 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Series C |
|
Frame Type |
F Frame |
| Certifications | UL Listed |
| Amperage Rating | 175 A |
| Voltage Rating | 600 VAC, 250 VDC |
| Trip Type | T186 |
|
Circuit Breaker Type |
FD |
|
Circuit Breaker Frame Type |
Complete breaker |
| Terminals | Load side |
| Frequency Rating |
50 to 60 Hz
|
| Interrupt Rating |
65 kAIC at 240 Vac
35 kAIC at 480 Vac |
| Number Of Poles |
Three-pole
|
| Weight |
4.5 lbs
|
Information About FD3175BP10
The Eaton FD3175BP10 is a rugged and reliable molded case circuit breaker (MCCB) rated at 175A, engineered for robust protection in commercial and industrial power distribution systems. Part of Eaton’s Series C product line, it features a 3-pole, fixed thermal-magnetic trip unit that provides long-time and instantaneous overcurrent protection. Designed for high interrupting capacity, the FD3175BP10 is ideal for applications requiring compact yet high-performance circuit interruption. Its bolt-on mounting and load-side terminals make it simple to install in panelboards, switchboards, and motor control centers. Built to meet stringent safety standards, this MCCB ensures dependable circuit protection in demanding environments.
Key Features:
- Current Rating: 175A
- Voltage Rating: 600 VAC / 250 VDC
- Interrupting Capacity: 65 kAIC at 240 VAC; 35 kAIC at 480 VAC
- Trip Unit: Fixed thermal-magnetic (LI – Long-Time and Instantaneous)
- Poles: 3
- Frame Type: F-frame
- Mounting: Bolt-on
- Terminals: Load-side
- Frequency: 50–60 Hz
- Dimensions: 3.38 in (L) × 4.13 in (W) × 4.13 in (H)
- Weight: Approximately 4.5 lbs
- Certifications: UL Listed
The Eaton FD3175BP10 offers dependable, high-capacity circuit protection in a compact form factor, ideal for integrating into high-load electrical systems. Its durable design and fast-acting protection make it a trusted component in power distribution architectures where performance and safety are paramount.
