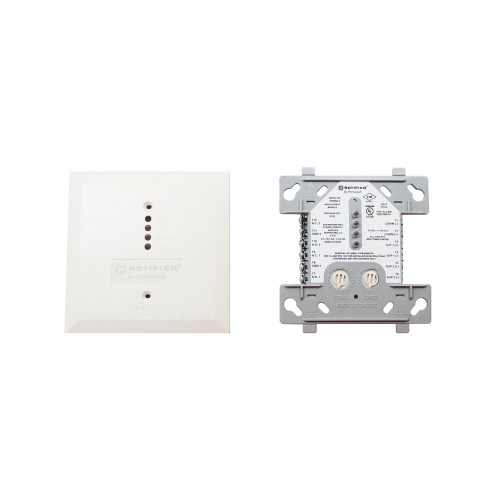

FDRM-1 | Notifier Dual Relay/Input-Output Monitor Module, Addressable SLC Powered
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FDRM-1
Description
The Notifier FDRM-1 is a dual relay and input/output monitor module designed for use with Notifier addressable fire alarm control panels. It enables intelligent monitoring and control of two independent relay-driven circuits without requiring external power.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Equipment |
| Part Number | FDRM-1 |
| Subcategory | Relay/Monitor Module |
| Product Type | Addressable dual relay and I/O module |
| Power Source | Powered directly by SLC loop |
| Operating Voltage | 15–32 VDC |
| Average Operating Current | 1300 µA |
| Max Current Draw | 24 mA (with 4 LEDs active) |
| Relay Outputs | Dual, independently controlled |
| Addressing Range | CLIP: 1–99, FlashScan®: 1–159 |
| Address Configuration | Rotary decimal switches |
| LED Indicators | Flashing green (normal), steady red (alarm) |
| Mounting | Standard 4" × 4" × 2⅛" junction box |
| Dimensions | 4.7" H × 4.3" W × 1.4" D (119 × 109 × 36 mm) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10–93% RH (non-condensing) |
| Compatibility | Notifier AUTOPULSE and addressable panels |
| Communication Type | Addressable-analog (FlashScan®/CLIP) |
| Shipping Weight | 6.3 oz (178.6 g) |
| Environment | Commercial, institutional, and industrial facilities |
Information About FDRM-1
The FDRM-1 is part of Notifier’s FlashScan®/CLIP series of addressable modules, engineered to expand fire alarm system functionality by providing dual relay outputs and input monitoring capability. Powered directly by the SLC (Signaling Line Circuit), it eliminates the need for an external power source. The module features integral LEDs that flash green in normal mode and latch red during alarm conditions, offering easy visual status indication. Compact and low-profile, the FDRM-1 mounts in a standard 4-inch square junction box, making it ideal for commercial, institutional, and industrial fire alarm applications requiring addressable input and relay control.
Key Features:
- Dual Relay Function: Controls two independent output circuits for system flexibility.
- Input/Output Monitoring: Provides both relay activation and input supervision capabilities.
- SLC-Powered: Operates directly from the addressable loop with no external power required.
- Addressable Communication: Supports CLIP (1–99) and FlashScan® (1–159) addressing.
- Visual Indicators: LEDs flash green for normal operation and show steady red for alarm.
- Compact Mounting: Fits in a 4" × 4" × 2⅛" standard junction box.
- Environmental Range: Operates from 32°F to 120°F (0°C to 49°C) with 10–93% humidity.
- Notifier Compatibility: Works with AUTOPULSE and other Notifier addressable systems.
The FDRM-1 delivers the reliability and precision required for intelligent control and monitoring in addressable fire alarm systems.
