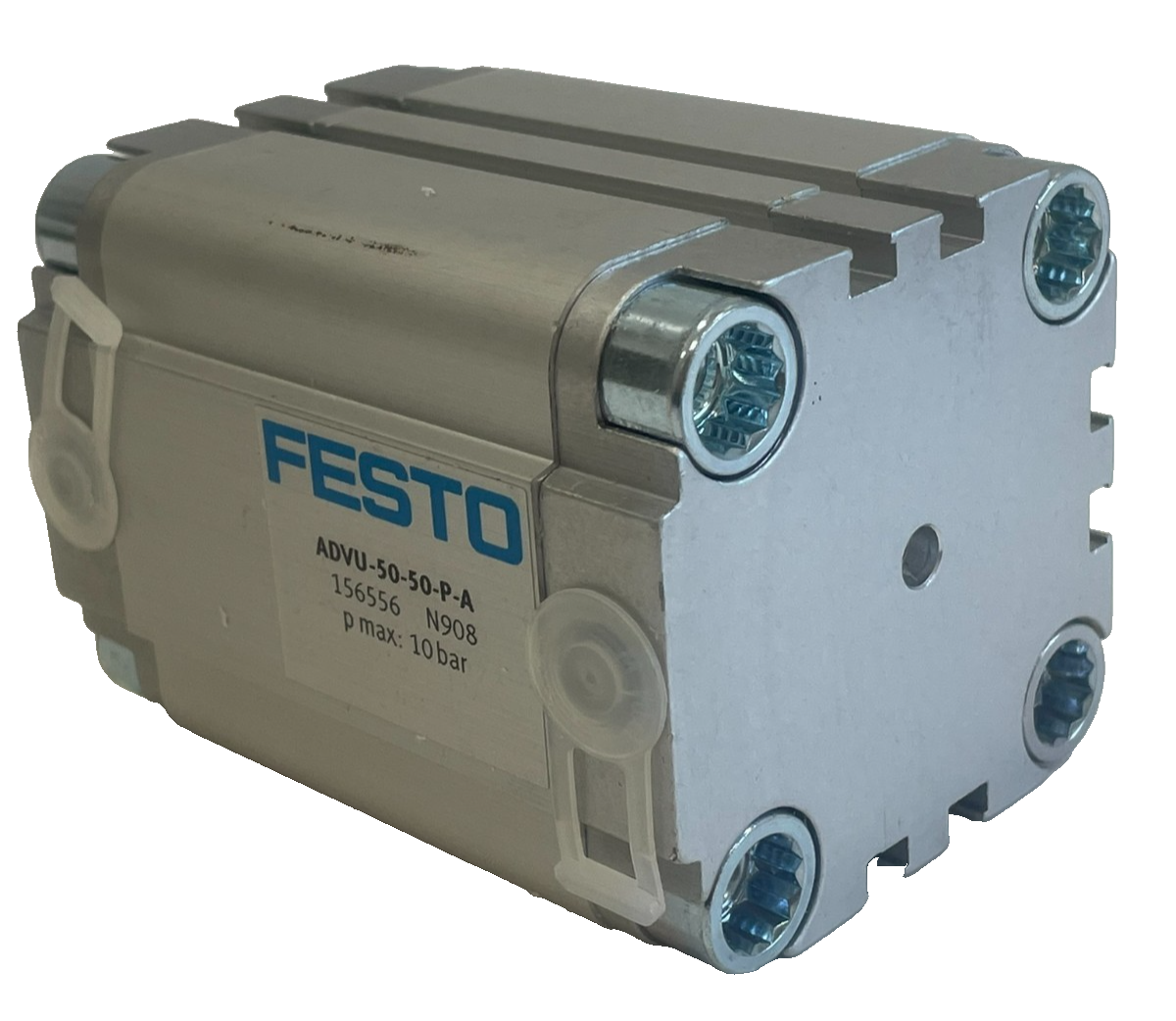

Festo ADVU-50-50-P-A Double-Acting Compact Pneumatic Cylinder
- Regular price
- $245.00
- Sale price
- $245.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ADVU-50-50-P-A
Description
The Festo ADVU-50-50-P-A is a compact pneumatic cylinder designed for linear actuation in industrial automation. Its 50 mm piston diameter and 50 mm stroke provide double-acting movement, while elastic cushioning at both ends reduces end-position impact.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatics |
| Part Number | ADVU-50-50-P-A |
| Subcategory | Pneumatic Cylinder |
| Manufacturer Part Number | 156556 |
| Series | ADVU |
| Cylinder Type | Compact cylinder with single-ended piston rod |
| Piston Diameter | 50 mm |
| Stroke | 50 mm |
| Mode of Operation | Double-acting |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Piston Rod End | Internal thread |
| Operating Pressure | 0.8–10 bar |
| Theoretical Extension Force | 1,178 N at 6 bar |
| Theoretical Retraction Force | 1,057 N at 6 bar |
| Pneumatic Connection | G1/8 |
| Position Detection | Via compatible proximity switch |
| Materials | Aluminum alloy barrel and covers; high-alloy steel piston rod; NBR and TPE-U(PU) dynamic seals |
| Ambient Temperature | −20–80 °C |
| Weight | 920 g |
Information About ADVU-50-50-P-A
The ADVU-50-50-P-A is part of the Festo ADVU series of compact cylinders. It features a single-ended piston rod with an internal thread for attaching compatible tooling. Proximity-switch compatibility supports position monitoring during extension and retraction. Aluminum alloy construction and G1/8 pneumatic connections support integration into machinery with limited installation space.
Key Features:
- Compact Linear Actuation: Provides a 50 mm stroke for pushing, transferring, and positioning tasks.
- Double-Acting Operation: Uses compressed air to power both extension and retraction.
- Piston Diameter: A 50 mm bore provides a theoretical extension force of 1,178 N at 6 bar.
- Retraction Force: Produces a theoretical return force of 1,057 N at 6 bar.
- Elastic Cushioning: Includes cushioning rings or pads at both ends of travel.
- Threaded Rod End: An internal thread allows connection to compatible tooling and accessories.
- Position Monitoring: Supports compatible proximity switches for detecting piston position.
- Flexible Installation: Allows mounting in any orientation using through-holes or suitable accessories.
The ADVU-50-50-P-A delivers the reliability and precision required for pneumatic linear movement in automated production equipment.
