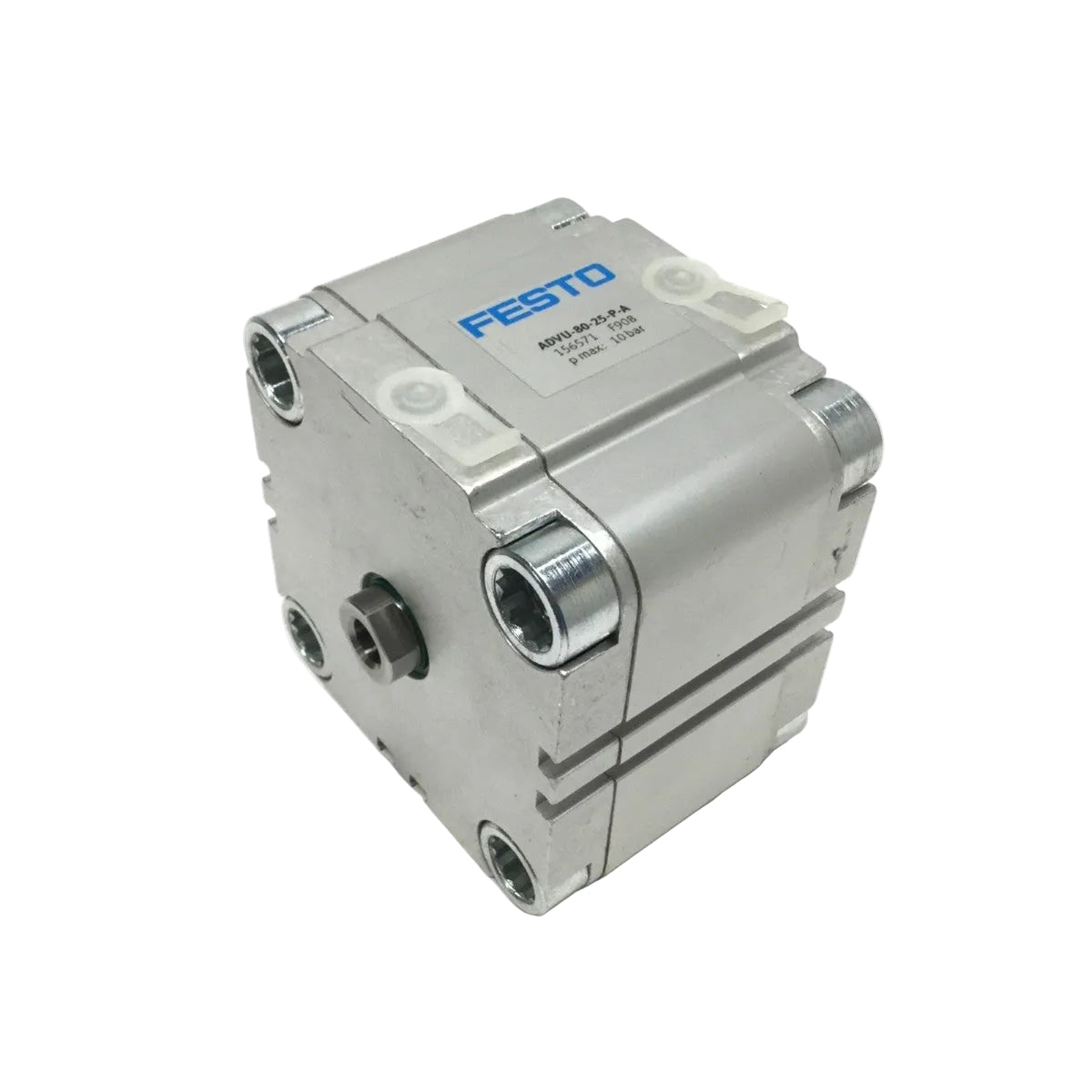

Festo ADVU-80-25-P-A Compact Pneumatic Cylinder 80 mm Bore 25 mm Stroke
- Regular price
- $797.00
- Sale price
- $797.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ADVU-80-25-P-A
Description
The Festo ADVU-80-25-P-A is a double-acting pneumatic compact cylinder designed to provide linear motion in industrial automation and machine systems. It features an 80 mm piston diameter, a 25 mm stroke, and elastic cushioning at both ends to reduce impact during operation. Its through-hole mounting, G1/8 pneumatic connection, and proximity-sensor compatibility support integration into automated equipment.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Festo |
|
Category |
Pneumatics |
|
Part Number |
ADVU-80-25-P-A |
|
Subcategory |
Pneumatic Cylinder |
|
Series |
ADVU |
|
Piston Diameter |
80 mm |
|
Stroke Length |
25 mm |
|
Operation |
Double-acting |
|
Operating Pressure |
0.6–10 bar (9–145 psi) |
|
Pneumatic Connection |
G1/8 |
|
Mounting Type |
Through-hole |
|
Cushioning |
Elastic cushioning rings/pads at both ends |
|
Position Detection |
Compatible with proximity switches |
|
Piston Rod Material |
High-alloy steel |
|
Cylinder Barrel Material |
Wrought aluminum alloy |
|
Ambient Temperature |
−20°C to +80°C |
|
Theoretical Force at 6 bar |
3,016 N advance; 2,827 N return |
|
Weight |
6.00 lb |
Information About ADVU-80-25-P-A
The ADVU-80-25-P-A belongs to Festo’s ADVU series of compact pneumatic cylinders and is identified by manufacturer part number 156571. It operates with compressed air at pressures from 0.6 to 10 bar and supports an ambient temperature range of −20°C to +80°C. The cylinder uses a high-alloy steel piston rod and a wrought aluminum alloy cylinder barrel. Its double-acting design allows compressed air to drive the piston in both extension and retraction directions.
Key Features:
-
Compact Cylinder Design: Provides pneumatic linear movement in a compact housing.
-
80 mm Piston Diameter: Delivers high theoretical force for industrial positioning tasks.
-
25 mm Stroke: Provides a short linear travel distance for machine mechanisms.
-
Double-Acting Operation: Uses compressed air for both extension and retraction.
-
Elastic End Cushioning: Reduces impact at the end of the piston stroke.
-
Through-Hole Mounting: Supports installation using through-hole fasteners.
-
Sensor Compatibility: Allows position detection with compatible proximity switches.
-
G1/8 Pneumatic Connection: Connects to compatible compressed-air supply lines.
The ADVU-80-25-P-A delivers the reliability and precision required for pneumatic clamping, positioning, and linear movement in industrial machinery.
