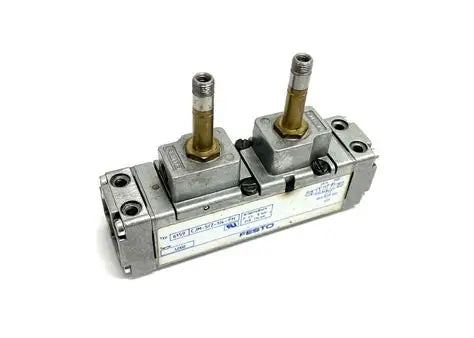

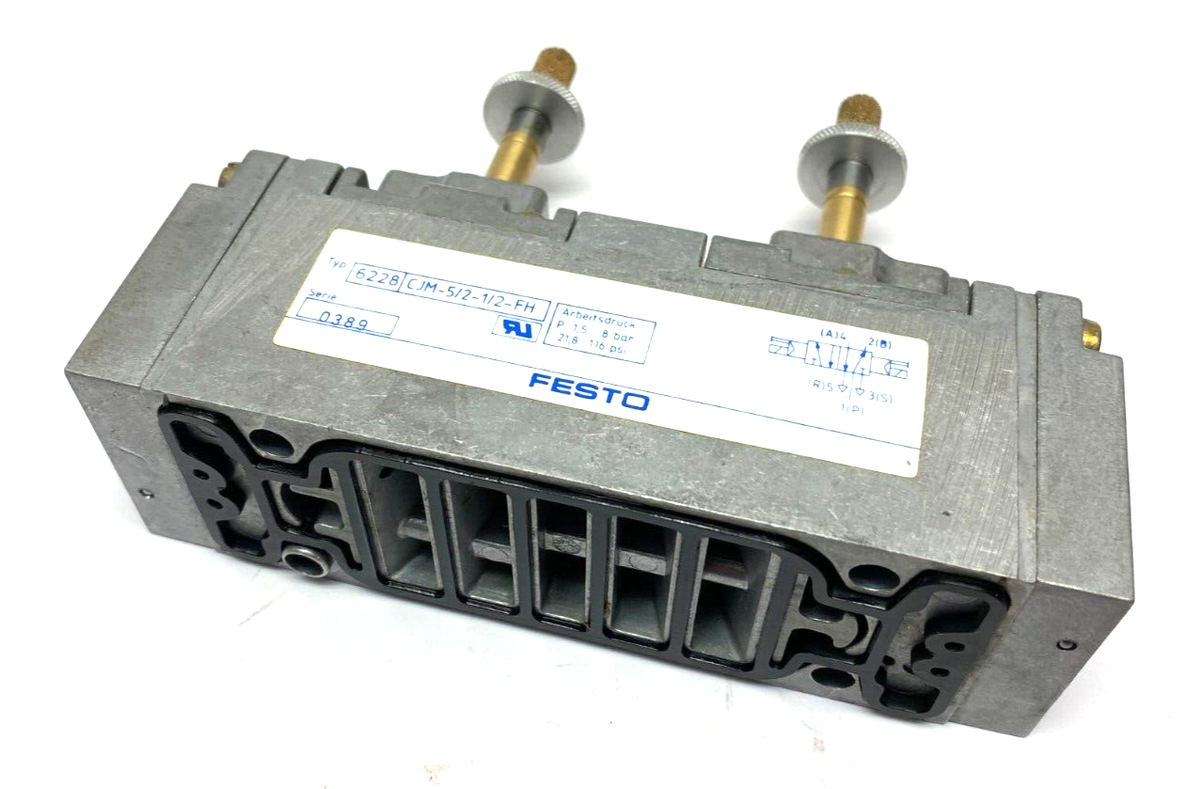

Festo CJM-5/2-1/2-FH Bistable Pneumatic Solenoid Directional Control Valve
- Regular price
- $1,095.00
- Sale price
- $1,095.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CJM-5/2-1/2-FH
Description
The Festo CJM-5/2-1/2-FH is an electrically actuated pneumatic directional control valve designed to regulate compressed-air flow in industrial automation systems. This bistable 5/2-way valve uses pilot actuation to switch between two positions, directing airflow to operate pneumatic cylinders and other actuators.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Festo |
| Category | Pneumatic Components |
| Part Number | CJM-5/2-1/2-FH |
| Subcategory | Pneumatic Solenoid Valves |
| Manufacturer Part Number | 6228 |
| Product Family | CAS cassette valve |
| Valve Type | Directional control solenoid valve |
| Valve Function | 5/2-way, bistable |
| Actuation Type | Electrical |
| Pilot Type | Pilot-operated |
| Operating Pressure | 1.5–8 bar |
| Pneumatic Connections | Sub-base connections, ports 1–5 |
| Nominal Flow Rate | Not verified for this exact variant |
| Digital Inputs | 14 |
| Digital Outputs | 5 logic outputs |
| Display | Seven-segment diagnostic display |
| Mounting | Mounting plate, bolted |
| Protection Rating | IP10 / IP20, depending on the specified protection area |
| Weight | 0.99 lb |
Information About CJM-5/2-1/2-FH
The CJM-5/2-1/2-FH belongs to Festo’s classic CAS cassette valve product family and carries manufacturer part number 6228. It features a bistable spool configuration, meaning the valve retains its last switching position after the electrical actuation signal is removed. The valve operates with a pneumatic supply pressure of 1.5 to 8 bar and uses sub-base connections for all five pneumatic ports. It is supplied with a plug socket and manual override, while the mounting sub-base is not included.
Key Features:
-
5/2-Way Valve Function: Directs compressed air through five ports and two switching positions.
-
Bistable Operation: Maintains its selected position after the switching signal is removed.
-
Electrical Actuation: Supports automated switching through an electrical control signal.
-
Pilot-Operated Design: Uses pilot pressure to actuate the main valve mechanism.
-
Operating Pressure Range: Supports pneumatic operation from 1.5 to 8 bar.
-
Sub-Base Mounting: Connects through a compatible mounting base rather than direct threaded working ports.
-
Manual Override: Allows manual switching for setup and maintenance.
-
Plug Socket Included: Provides an electrical connection accessory; the mounting sub-base must be purchased separately.
The CJM-5/2-1/2-FH provides dependable directional air control for pneumatic cylinders, automated production equipment, packaging machinery, and industrial handling systems.
